Steel Coil · Appliance Application
Steel Coil for Appliances — specify the part that is seen separately from the one that is not
An appliance is made of two kinds of steel part, and they are not bought on the same requirement. The door, the top and the side panels are seen by the customer, judged after they have been finished, and rejected for marks that a hidden part would never be questioned on. The brackets, frames and internal supports are never seen at all — they have to form, hold and join. Treat those two as one material line and you either pay for a surface nobody sees or buy a visible panel on properties that say nothing about how it will look.
Two parts, two requirements
- A visible panel is bought on surface quality and judged after finishing — not on the properties that arrived.
- A hidden part is bought on forming and strength, and paying for surface on it is money spent on nothing.
- Which of the two a part is decides the grade, the surface and the evidence it needs.
Buyer Fit
An appliance is two material problems sharing one bill of materials
Appliance steel coil is often specified as a single line because the parts travel through one plant. That is a purchasing convenience, and it costs something. The visible part of an appliance and the structural part of it are judged by entirely different people against entirely different criteria.

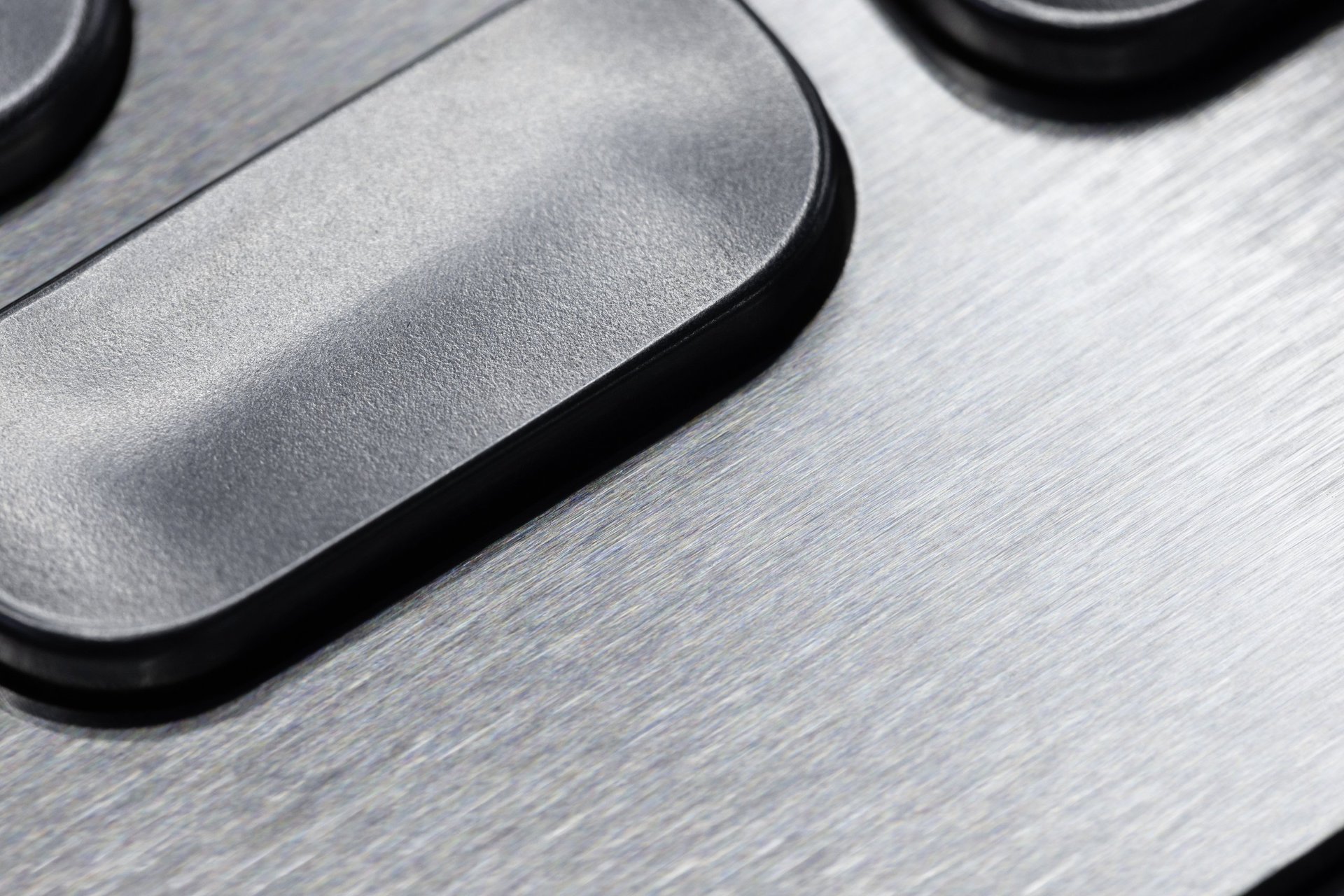

Start with the visible panel. It is formed, joined into the cabinet, and then finished — painted, coated or left as a bare metallic face. The customer's first impression of the product is that surface, and their judgement happens after your finishing process, not when the coil arrives. This is what makes appliance work unusual: the requirement being inspected is partly created by the factory, and the coil can only be specified against what that process reveals. Marks, flatness variation and surface inconsistency that would be irrelevant on a bracket become the reason a panel is scrapped.
Now the other half. A bracket, a frame rail, a hinge reinforcement or an internal support is formed, joined and installed, and then hidden for the life of the product. Nobody will ever inspect its surface. What it has to do is hold its shape through forming, take the join, and carry what it was designed to carry. Buying this part on a surface requirement is straightforwardly wasted money — and it happens constantly, because the two parts arrive on the same material line and the stricter of the two requirements gets written across both.
There is a third case that catches people out, and it sits between the two. A part that is hidden in the finished product but visible during manufacture — an internal surface the assembler handles, or a component that is inspected at an intermediate stage of the line. It does not need a Class A face, and it does need enough surface consistency that the handling and the intermediate checks are not fighting the material. Deciding which of these three the part is takes one conversation and prevents both kinds of over-and-under specification.
Why "appliance steel" is not a specification
The phrase describes an industry, not a product. Within one appliance, the door skin, the cabinet frame and the motor bracket are three different flat steel requirements, and within a factory those three may be bought from three different suppliers on three different bases. A single line reading appliance steel tells a supplier where the material is going and nothing about what any individual part has to survive. Splitting it by visible and hidden, and by forming operation, is what turns the phrase into something a mill can actually work to.
This route fits if…
- You know whether the part is seen in service. A door skin, a top or a fascia is judged by the customer; a frame or bracket is not. That single distinction reorders the whole specification.
- The finishing route at your plant is settled. Painted after forming, pre-coated then formed, or kept as a bare metallic surface. The coating decision follows from this rather than the other way round.
- You can state the forming operation the coil feeds. Stamping, drawing, roll forming or press bending — each puts a different demand on the material, and the demand is set by your tooling rather than by the part name.
- You can say what the surface will be judged on. Your own finishing line, the customer's inspection, or both. Naming it means the surface requirement can be written down and verified instead of argued about later.
Move to a different route if…
- You are still deciding whether the process route should be cold-rolled or hot-rolled feedstock. Start from the steel coil range
- The exposed part is cold-rolled feedstock and you are checking that route itself. See the cold-rolled route
- The part is hot-rolled feedstock for a structural or internal component. See the hot-rolled route
- The part is supplied as flat cut blanks or sheet rather than coiled. See the steel sheet range
Panel Decision
Name the part and how it is seen, and see which requirements it carries
This decision tool takes the part, how visible it is, the forming operation and the finishing route, and reports which requirements the part carries, which it does not need, and where the answers do not hold together. It names no grade, no gauge and no appliance approval.
Describe the part
Answer the five fields as they stand today. The tool separates the requirements this part carries from those it does not, and flags answers that conflict.
This reviews a part, not a product. It names no grade, no gauge and no appliance approval, and it makes no judgement about whether a given material suits a given appliance programme.
What this part carries
Answer the five fields above. The tool reports which requirements the part carries, which it does not need, and where two answers cannot both hold.
Nothing here selects a material or approves one for an appliance programme. It is a check that the specification matches how the part is actually seen and made.
Why the tool asks about visibility first
Everything else in an appliance specification changes depending on one answer. A visible panel carries a surface requirement because something will inspect it; a hidden part does not carry one, and paying for it is the most common quiet waste in appliance sourcing. So the tool establishes visibility before it establishes anything else, and it will tell you when a requirement you have selected does not apply to the part you described — rather than accepting the combination and producing a confident, wrong summary. What it will not do is name a grade: formability is established at your die, not on a page, and a tool that suggested one would be guessing about a press it has never seen.
Where It Stops
Four assumptions that put the wrong requirement on an appliance part
Each of these is a shortcut taken when an appliance bill of materials is specified as one material line. Each one is invisible at the order stage and becomes visible either at the finishing line or at final inspection.
One material line covering the panel and the bracket
The seen part and the unseen part get the same specification because they arrive on the same order. Whichever requirement is written across both is then wrong for one of them: the surface requirement is bought and never inspected, or the structural requirement is applied to a face the customer will judge.
Boundary: split the bill of materials by visibility before the material is specified. A part with no viewer has no appearance requirement.
A surface requirement left to arrive by default
Panels are frequently specified on mechanical properties and thickness, with the assumption that the material will be clean enough. That assumption has no figure behind it, so goods-in cannot verify it and a rejected finished panel cannot be traced back to anything that was written down.
Boundary: on a visible panel, write the surface condition into the order. It is the one requirement the customer actually inspects.
A pre-coated coil pushed through an aggressive forming operation
Where the coating is applied before the part is formed, the forming strain and the die contact are applied to the coating as well as to the steel beneath. Whether the finish survives depends on the coating system and the severity of the operation, and neither is implied by the coating's name.
Boundary: where the coil is pre-coated and formed afterwards, treat the coating's forming capability as its own stated requirement.
Appearance assumed to be a finishing-line problem alone
The finished look of a panel is produced by the material and the finishing process together. A paint line cannot remove flatness variation, marks from handling or surface inconsistency in the substrate — it reveals them. Reading appearance as something the paint shop owns is how a material problem becomes a finishing-line dispute.
Boundary: the appearance requirement belongs in the material specification and in the finishing specification, not in one of them.
All four come back to the same habit: an appliance is specified as an industry rather than as a set of parts. The remedy is small — decide, per part, whether anything will look at it, and write the surface requirement only where the answer is yes. That single split removes the wasted surface spend on hidden parts and the unstated surface risk on the visible ones.
Order Conditions
What an appliance coil order has to carry
These are the fields an appliance panel or component line works to. Anything absent is decided by whoever quotes — which means the material may arrive meeting a requirement that suits the supplier's product list rather than your finishing line.
| Order field | What it decides |
|---|---|
| Whether the part is seen in service | The single field that decides whether this part carries a surface requirement at all. Everything else in the specification is read in the light of this answer. |
| The forming operation and its severity | What the material has to do at the tooling — stamping, drawing, roll forming or press bending — taken from your own die and press data rather than from the part name. |
| The finishing route | Painted after forming, pre-coated then formed, or kept as a bare metallic surface. The coating decision follows from this, and the forming step sits between coating and finished look in two of the three. |
| Surface condition and treatment | What the surface has to be, including any oiling or protective treatment. On a visible panel this is the requirement the customer's judgement ultimately lands on. |
| Governing specification and its edition | Which text the steel is ordered and verified against. Without an edition, the tolerance and test basis can be read more than one way. |
| Grade as your tooling requires it | The grade taken from your own forming experience and confirmed against the specification. This page will not supply one, because formability is settled at your die. |
| Thickness and tolerance, with the unit system | The band the press or the roll-forming line will accept and goods-in will verify. A bare figure without a tolerance invites each supplier to apply their own default. |
| Width and slit basis | Whether the coil is supplied at ordered width or slit to the line width, and the edge the panel blanking or the roll-forming stands expect. |
| Coil geometry, mass and quantity | Whether the coil suits your decoiler — inner diameter, outer diameter, coil mass range — and the tonnage or unit count for the build. |
| Protection through the plant and in store | How the surface is protected between goods-in and the finishing line. On a visible panel this is where most appearance defects are actually created. |
| Documents and destination | What is evidenced at dispatch and against which basis, plus the protection and document set the receiving end expects. |
Related routes on this path
Releasing appliance coil at goods-in
- Confirm the certificate cites the specification with the same edition your order invoked, not the designation alone.
- Check the surface condition recorded against what your order stated — and if no surface condition was stated, that is the gap to close before the coil is released.
- Verify the coating or finish basis where the coil arrives coated, against the finish route the part actually follows.
- Compare thickness and width against the stated band before release, since a panel that will not hold tolerance will not assemble into a cabinet cleanly.
- Record the banding, wrapping and protective treatment on arrival and again at the finishing line, because visible-panel defects are created by handling and storage as often as by the material itself.
What the documents can and cannot carry
Each record answers one question and stops there. The table below separates what each document actually verifies from what it is often assumed to verify — and the second column is where appliance panel disputes usually begin.
| Document | What it verifies | What it does not establish |
|---|---|---|
| Mill test certificate | The material in the lot it was tested from, read against the specification and edition your order names. | It does not evidence that a finished panel will look right, or that any appliance programme will accept the part. |
| Surface inspection record | That the surface condition supplied matches the condition your order stated. | It records what was supplied, not whether your paint line will reveal something the record did not capture. |
| Coating mass or coating basis record | The coating figure applied, against the finish basis written into the order. | It records the coating, not how it will behave when the part is formed after coating. |
| Dimensional and flatness record | Thickness, width and flatness against the ordered band. | It records what was measured, not whether your press will accept it or your assembly will align. |
| Packing and protection record | How the coil was protected for the journey and what treatment the surface carries. | It does not carry a handling instruction for your own plant, where visible-panel defects usually originate. |
GCC Supply
Appliance coil into Gulf component manufacturing
Appliance manufacturing in the Gulf ranges from assembly operations using imported components through to local panel stamping and finishing. Which of those a buyer is running changes the specification more than the destination does.
United Arab Emirates
Panel and component supply where the visible and hidden parts are split by requirement before the coil is committed.
Steel coil supply for United Arab Emirates
Saudi Arabia
Build volumes for appliance and component manufacturing, where the surface requirement has to align with the finishing line before material is released.
Steel coil supply for Saudi Arabia
Qatar
Supply into component manufacturing where a technical submittal means the surface and finish basis are on the record before shipment is planned.
Steel coil supply for Qatar
Oman
Port-oriented routes where transit protection matters as much as the surface condition itself, because a marked panel cannot be painted back to class.
Steel coil supply for Oman
Bahrain
Industrial supply where the document set carries weight, because the surface condition is evidenced by record as much as by inspection on arrival.
Steel coil supply for Bahrain
Kuwait
Manufacturing supply where the coil feeds a stamping or roll-forming line, so the forming operation and the dimensional band are fixed before the run.
Steel coil supply for KuwaitThese pages set out the enquiry handling for each destination. They do not claim local warehousing, stockholding, a branch presence or a delivery timescale — those are confirmed against your own order. For a visible panel, say how the material is protected in transit and on arrival: a marked coil will be painted over rather than corrected, and the mark becomes the finished appearance.
Reference Notes
Reading an appliance coil requirement, and the limits of this page
A flat-rolled specification does several jobs at once: it defines the product, sets the ordering conditions, and establishes how the material is tested and accepted. What it does not do is tell you whether the panel will look right — that answer is produced jointly with your finishing line.
Appearance is produced by a process, not selected from a list
The face a customer judges on an appliance is the result of the material as supplied and everything your plant then does to it — forming, handling, storage and finishing. A surface requirement written into the order is one input to that result, and it is the only one the material supplier controls. That is why the specification has to state the surface, and why it can never promise the finished appearance on its own.
Visible and hidden parts are separate requirements, not separate qualities
It is tempting to read the visible and hidden distinction as a grading — the good material for the door and the cheap material for the bracket. That is not the distinction. Both parts are bought to a requirement; the requirements are simply different, and each is exact for its purpose. A bracket bought to a well-chosen structural requirement is not a lesser purchase than a panel bought to a well-chosen surface requirement.
The forming operation sits between the coating and the finished look
Where a coil arrives pre-coated and is then stamped, drawn or formed, the coating is formed along with the steel and the finished surface is the result of that operation. Whether the coating survives is a function of the coating system and the strain at the part, and it is not implied by the coating's name or by how it performs once installed. Treated as its own requirement, it is a straightforward enquiry; treated as an assumption, it is a rejected batch.
Material conformance and appliance approval are different records
A test certificate evidences the material in the lot against the specification your order names. It says nothing about whether a given appliance manufacturer will accept the part into their programme — that is their own qualification, granted to their supplier through their own process. Presenting material conformance as programme approval is a substitution neither document supports, and it is the misunderstanding most likely to surface late.
This page states no grade, no gauge, no coating mass figure, no composition and no test value, and it makes no claim about appliance OEM approvals, programme qualification or which specification edition is currently published. Flat-rolled standards are maintained and revised, so the publisher's own catalogue and your programme's controlling documents are the only sources that stay accurate. Read the specification your project cites, confirm its status there, and write the surface requirement onto the order rather than assuming it.
Which decision belongs to which party
Will anything look at this part in service?
Yours — from the product design. This is the answer that decides whether the part carries a surface requirement at all.
What will the surface be judged on?
Your finishing line and your customer's inspection, which are not the same test by default.
Which forming operation and severity applies?
Your tooling and press data — the die decides what the material has to do, not the part name.
Which specification and edition governs?
Whoever controls the product's drawings and specifications in your own engineering function.
May this part enter an appliance programme?
The appliance manufacturer, through their own supplier qualification. A distributor cannot confer this.
Is the material supplied to that specification?
The supplier — the one question in this list that a steel distributor actually answers.
Where It Is Applied
Six enquiry situations where visibility decides, not the part name
These are the settings in which appliance coil enquiries most often go out with the parts treated as one material line. In each of them the same two fields — visibility and the finishing route — are the ones that go missing.
A new model reuses the previous model's material line
The panels carry over from the last build while the finishing process has changed, so the surface the paint line now reveals was specified against a process the plant no longer runs.
Panels and internal brackets share one purchase order
The stricter of the two requirements is written across the whole order, so the brackets carry a surface requirement nobody will ever inspect and the panels may carry less than they need.
A pre-coated supply is introduced to shorten the paint line
The coating route changes from painted-after-forming to coated-then-formed, and the forming operation now acts on the coating itself — a question the original specification never had to answer.
A panel is rejected at final inspection for marks
The material met its specification and the finished panel still failed, because the surface condition that the customer's eye would catch was never written into the order and goods-in had nothing to check.
A visible panel is specified from the structural part's sheet
One grade is applied to both because it forms well in the dies, and the visible face is bought on properties that say nothing about how it will look once painted.
Coil is held in store between production runs
Material bought for one build is carried into the next, and the surface condition has to be confirmed as still acceptable — because storage and handling change a visible panel's outcome more than the mill certificate does.
Where the panel is supplied as flat cut blanks rather than as coil for a stamping or roll-forming line, the dimensional and handling questions change even though the surface requirement does not. The steel sheet range covers that form.
FAQ
What an appliance sourcing engineer asks before specifying coil
Written around the questions that decide whether a coil requirement matches the part — including the ones about what this page will not tell you.
Does Noor Deira Steel hold appliance OEM approvals?
No, and this page makes no such claim. Appliance manufacturers qualify their own material and component suppliers through their own processes, and that approval sits with the OEM and with whoever holds it — not with a steel distributor. What is described here is how feedstock is specified and evidenced commercially. If a brand's approval is a requirement of your order, that is a question for the party who granted it.
What makes a coil suitable for a visible panel?
The surface, and it is judged after the panel has been painted or coated rather than as it arrives. A coil bought on mechanical properties alone can form perfectly and still be rejected, because the marks, flatness and surface consistency that a painted exterior reveals were never written into the order. On a visible panel the surface condition is a primary requirement, not a secondary one.
Can the same coil be used for the cabinet and the internal brackets?
It can be bought on the same order and it should not be specified on the same line. The cabinet is judged on appearance after finishing; a bracket is judged on whether it forms, holds and joins, and it is never seen by the customer. Specifying both from an appearance-led requirement wastes the surface requirement on a part that will not show it, and specifying both from a structural requirement puts an unbought surface onto the part that will.
How should the finish be chosen for an exposed panel?
From what the panel is exposed to and how it is finished at your plant. A panel that is painted after forming, a panel that arrives pre-coated and is then formed, and a panel that keeps a bare metallic surface are three different specifications, and the forming step sits between the coating and the finished appearance in two of them. Name the finish route first, then let the coating basis follow from it, rather than picking a familiar coating and reasoning about it afterwards.
What should the enquiry say about the surface requirement?
Whatever your own finishing line and your customer's inspection will actually judge the panel on — and they are not the same thing by default. If the panel is painted, the requirement is what the paint reveals. If it is brushed or left as-coated, it is the surface as supplied. Write down which one applies, because a surface requirement that was never stated cannot be verified at goods-in and cannot be argued at rejection either.
Request a Quote
Send the part and whether it is seen in service, the forming operation, the finishing route, the surface condition and any treatment, the governing specification with its edition, the grade as your tooling requires it, the thickness and width with tolerances, the slit basis, the coil geometry and quantity, how the material is protected in the plant and in store, the documents your quality function requires, and your destination. Price is on request.
Appliance panel and component enquiries on this route are handled through the steel coil desk — the main steel coil enquiry desk. The form here reaches the same team.
