Transmission tower steel matched to member marks and connection details

Send the tower type, approved member list, full angle or section designations and connection drawings. State whether the enquiry is for raw sections, processed members or a complete marked kit, then include grade, protection and inspection requirements for that scope.

Prepare your specification Review specification decisions

A steel grade or angle-size list cannot establish tower capacity. The approved line and tower design controls member sizing, connection details and material acceptance.

Three supply boundaries

1Raw sectionsCut lengths and mill identity, bought against the section schedule.
2Processed membersCut, drilled, marked and protected to the approved detail drawings.
3Released kitGrouped and marked per tower, with a member-by-member packing list.

The same tonnage sits in all three. What differs is the scope, the evidence and the price basis.

Supply boundary and first decisions

Choose the supply boundary before comparing tower offers

Two offers for the same tower can be priced against completely different scopes. Fix the boundary first — raw sections, processed members or a released kit — then compare like with like. The table below is the check to run before either offer is read.

Fit

The approved bill of materials identifies each member and grade.

Before you enquire: Send item marks and current drawing revisions.

Verify first

Drilling, cutting, protection or trial assembly is included.

Before you enquire: Agree process tolerances and acceptance scope.

Do not infer capacity

An angle size or grade is proposed without an approved tower design.

Before you enquire: Obtain the structural design decision before procurement.

Choose the supply boundary before comparing tower offers
Decision	Why it matters here	Before you enquire
Fit	The approved bill of materials identifies each member and grade.	Send item marks and current drawing revisions.
Verify first	Drilling, cutting, protection or trial assembly is included.	Agree process tolerances and acceptance scope.
Do not infer capacity	An angle size or grade is proposed without an approved tower design.	Obtain the structural design decision before procurement.

Explore the full structural-steel range— the parent range page, where each section family sits beside its own standard.

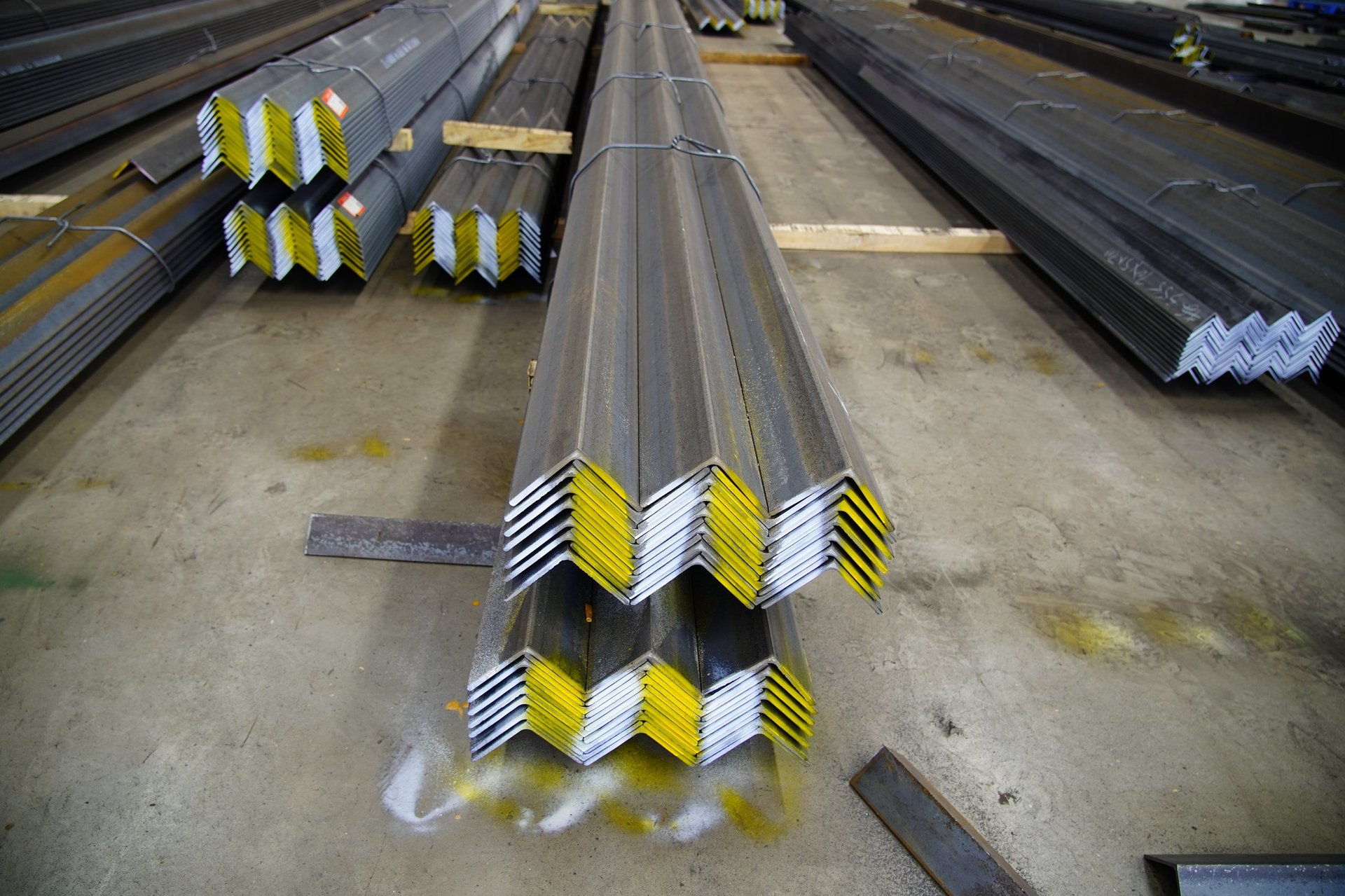

Equal and unequal angles beside member-mark symbols — Illustration: Make section orientation part of the order. Packed angle sections in a workshop. The image shows the product form only — it implies no supply, stock, origin, certification or capacity claim, all of which remain quotation-dependent.

Angle product selection

Specify equal or unequal legs, thickness and orientation for each tower member.

steel angle supplier

Flat-bar connection items

Identify flat connection items separately where the approved design calls for them.

steel flat bar supplier

Requirement and failure-risk map

Translate tower and line conditions into a member schedule

A tower is released as a set of members, not as a tonnage. Until the schedule exists, every offer is an assumption — and assumptions are where tower orders go wrong, because a brace, a hand or a hole pattern that does not reconcile stops erection just as effectively as a wrong grade.

Identify tower type, member function, wind and other governing load references, and the responsible design authority. Provide approved leg lengths, thicknesses, orientation, hole patterns and connection details. Include fabrication and galvanizing or other protection requirements, inspection access, maintenance assumptions and member-marking rules. Erection-kit completeness matters as well as tonnes: a missing brace, ambiguous hand or mismatched hole pattern can delay assembly even when the base grade is correct.

Design authority and load references

What to state: Tower type, the drawings and revision in force, and the wind or other governing load basis the design was checked against.
Why it changes the offer: This is what makes a member schedule approved rather than proposed. Without it, a section list is a preference.
What it costs if missed: Procuring against a superseded revision or an unapproved substitute changes the design basis invisibly.

Geometry, holes and orientation

What to state: Leg lengths, thicknesses, cut lengths, hole pattern, gauge, edge distance and which hand each member is.
Why it changes the offer: Equal nominal legs do not determine hole position, and orientation is not recoverable from a section designation.
What it costs if missed: A mirrored or mis-drilled member is scrap on site, discovered at the point where the tower cannot close.

Protection, inspection and kit release

What to state: Galvanizing or other finish scope, inspection criteria, member-marking rules and the kit grouping the site will receive.
Why it changes the offer: Coating and post-processing acceptance sit outside the raw material certificate and are inspected separately.
What it costs if missed: Tonnes can reconcile while the kit does not — a short or unmatchable kit delays assembly after material acceptance.

Tower inputs mapped to the decision they carry, the verification they need and the enquiry field each produces
Tower input	What it decides	Where its authority comes from	What the enquiry must produce
Tower type and member marks	Which members exist, how they are identified on site and how the kit is grouped for release.	The approved tower drawing set and the bill of materials at a stated revision.	Member mark, quantity and drawing revision. → Tower type and drawing revision field
Governing load reference	The design basis the member sizing was checked against — wind and any other named governing case.	The line design and the responsible design authority, not the supplier.	The load or design reference your approval is based on. → Application and service conditions field
Section designation and grade	The angle or section profile, its full designation and the material standard it is bought against.	The bill of materials. Members on one tower may differ from each other.	Full designation and grade, per member mark. → Profile designation and Grade fields
Hole pattern and orientation	Whether the members actually assemble — gauge, pitch, edge distance, cut length and hand.	The approved detail drawings and the dimensional inspection plan.	Hole pattern, tolerances, cuts and orientation. → Hole pattern and kit scope field
Protection and fabrication scope	Whether the offer covers raw section, cutting, drilling, marking, trial assembly or coating.	The project's processing and protection specification, separate from the material certificate.	The finish scope you are pricing and its inspection criteria. → Surface or coating field
Kit completeness and release rule	How shortages are reported and how the receiving team reconciles a tower before erection.	Agreed between buyer and supplier; the drawing set defines what 'complete' means.	Kit grouping, marking and shortage reporting. → Hole pattern and kit scope field

This page maps requirements to procurement inputs. It does not perform structural design, rate a line, or approve a substitution — final member sizing and connection approval remain with the project's design authority.

Material, geometry and kit completeness

Keep material, geometry and kit completeness separate

These three are commonly treated as one line on an enquiry, and they are not one thing. A member can be the right grade, the right size and still fail — because the holes are in the wrong place, or because a brace did not ship.

Use one controlled bill of materials to connect design, fabrication, inspection and packing.

Keep material, geometry and kit completeness separate
Specification decision	Applicability and limit	Evidence to request	RFQ action
Member and grade	Different tower members can have different approved sizes or materials.	Released bill of materials and heat evidence.	List member mark, full grade, section and quantity.
Holes and orientation	Equal nominal leg sizes do not define hole location or assembly hand.	Approved detail drawings and dimensional inspection plan.	State hole pattern, tolerances, cuts and member orientation.
Protection and fabrication	Coating and post-processing acceptance are separate from raw material certification.	Approved processing/protection specification and inspection records.	Identify galvanizing or other finish scope and inspection criteria.
Kit release	Tonnes alone cannot demonstrate a complete tower kit.	Member-by-member packing and assembly check.	Define kit grouping, marking and shortage reporting.

Member and grade

Different tower members can carry different approved sizes or materials. Quoting one material across the whole schedule is the simplification that reaches the bill of materials as an error.

Holes and orientation

Equal nominal leg sizes say nothing about hole location or assembly hand. Those come from the approved detail drawings, and they are what the dimensional inspection plan checks.

Protection and fabrication

Coating and post-processing acceptance are separate from raw material certification. A correct heat certificate does not evidence a correct finish.

Evidence note. This page states no dimensional tolerance, hole size, coating thickness or mechanical value for any grade. Those come from the project-selected standard and the approved detail drawings at a stated revision, and are confirmed on the documents issued for the material actually supplied. Where a figure matters to your acceptance, read it from the edition your project cites.

Local specification builder

Build a tower-member and kit enquiry

Record member-marking and processing requirements alongside material. The output checks enquiry completeness; it does not design a tower or establish line capacity.

Tower member schedule

Prepared in your browser. Nothing is sent from this page.

Complete the specification to prepare a review summary.

Your prepared specification will appear here. No enquiry has been sent.

Continue to enquiry handoff

Confirm the approved tower design, exact member geometry, connection tolerances and protection specification. No tower capacity is inferred from grade or section size.

What this builder does and does not do

Formats and checks the completeness of your enquiry, then gives you a summary to copy.
Validates that lengths and quantities are finite positive numbers in the unit you selected.
Keeps the enquiry usable while you wait for a drawing revision — nothing is submitted.
It does not design a tower, size a member, or infer capacity from a grade or an angle size.
It does not confirm price, stock, origin or lead time — those are quotation-dependent.
It does not transmit anything. Your details stay in this browser until you paste them into the RFQ yourself.

What the enquiry cannot cover yet

This page prepares your enquiry locally. Opening the RFQ from here does not submit it, and a submission is complete only when the receiving form returns a genuine acknowledgement.

Contact details are collected on the destination form, not here — this builder asks for no personal data. Supporting drawings travel through the destination's verified contact process.

Verification and documentation plan

Documents that support tower member and kit acceptance

Ask the release package to reconcile heat identity, processed dimensions, protection and member counts. Where trial assembly is required, agree its scope and acceptance before ordering.

Material and document acceptance
Control	What to examine	When and limits	Next action
Member and grade	Released bill of materials and heat evidence.	Before material acceptance; confirm feasibility and cost at quotation.	List member mark, full grade, section and quantity.
Holes and orientation	Approved detail drawings and dimensional inspection plan.	Before material acceptance; confirm feasibility and cost at quotation.	State hole pattern, tolerances, cuts and member orientation.
Protection and fabrication	Approved processing/protection specification and inspection records.	Before material acceptance; confirm feasibility and cost at quotation.	Identify galvanizing or other finish scope and inspection criteria.
Heat and item identity	Mill test certificate linked to heat markings and packing list.	Before release and again on receipt; a sample certificate is not evidence for the shipped heat.	Request traceability through cutting, bundling and delivery.

Illustration: Connect hole acceptance with the actual processed member. A metal section being cut in a fabrication workshop. The image states no measured value and depicts no premises, certificate, logo or test result. The image shows the product form only — it implies no supply, stock, origin, certification or capacity claim, all of which remain quotation-dependent.

Adjacent project controls

Connect tower procurement to the wider project controls

Use these routes for programme and standards coordination without replacing the tower's detailed design.

Energy-project procurement

Align tower lots with the wider transmission programme and document-release process.

structural steel for power plants

Infrastructure delivery

Coordinate access, receiving points and kit handling along the project route.

structural steel for infrastructure

Construction-stage steel control

Keep erection and temporary-work requirements distinct from the permanent tower member schedule.

structural steel for construction

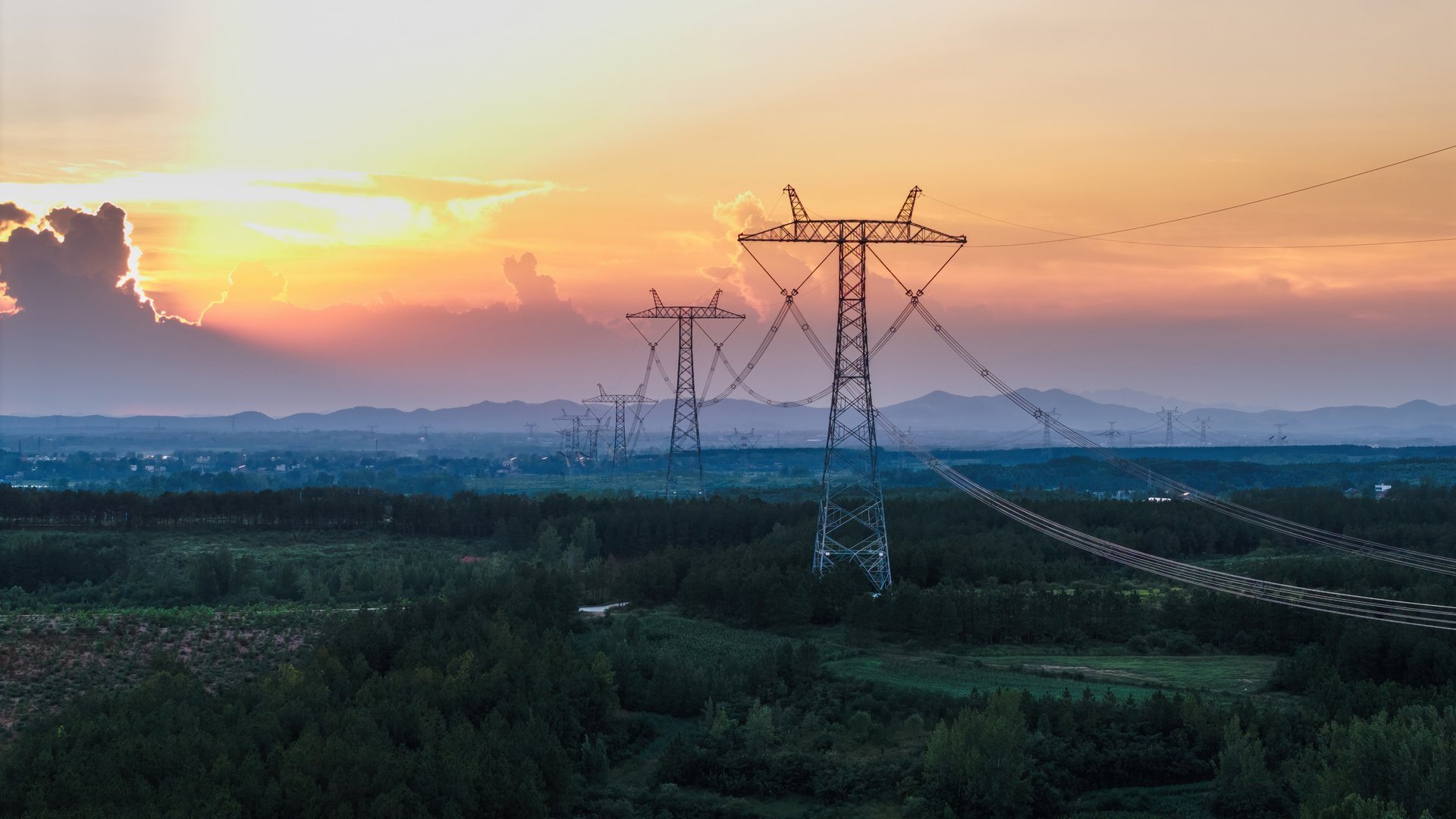

Tower members grouped as an erection kit — Illustration: Explain why kit completeness differs from tonnage. High-voltage transmission towers — the structures this member schedule serves. The image shows the product form only — it implies no supply, stock, origin, certification or capacity claim, all of which remain quotation-dependent.

GCC destination planning

Plan the GCC destination around the tower-kit schedule

Identify the actual receiving yard or route location and who checks kit completeness before erection. Country flags identify the destination; quotation must confirm the supply route, origin and availability for this order.

United Arab Emirates

Carry tower member marks and kit grouping into the destination enquiry. Identify the emirate, fabricator or site address and unloading restrictions; distinguish a domestic handover from an import leg.

structural steel supplier UAE

Saudi Arabia

Carry tower member marks and kit grouping into the destination enquiry. Name the consignee, importer and final site; ask who confirms product classification and border documentation before dispatch.

structural steel supplier Saudi Arabia

Qatar

Carry tower member marks and kit grouping into the destination enquiry. State the nominated receiving point and project document approver; align certificate review with the required arrival window.

structural steel supplier Qatar

Oman

Carry tower member marks and kit grouping into the destination enquiry. Specify the actual port, border point or inland site requested; separate the entry leg from onward transport and unloading.

structural steel supplier Oman

Kuwait

Carry tower member marks and kit grouping into the destination enquiry. Identify the contractor or fabrication yard receiving the sections; agree import-document responsibility and the named delivery place.

structural steel supplier Kuwait

Bahrain

Carry tower member marks and kit grouping into the destination enquiry. Confirm whether the order is for local consumption or onward shipment; name the consignee and agree who handles each transport leg.

structural steel supplier Bahrain

Receiving point and access

A port yard, a route location and an inland site each need a different unloading arrangement. Name the actual receiving point — the flag identifies the country, not the delivery.

Kit check responsibility

Agree who reconciles the member-by-member packing list before erection begins, and where a shortage is recorded. That step is easier to fix before the kit is distributed.

Document approver and window

Certificate review and any classification or border documentation should align with the arrival window the programme allows, not be raised once the material has landed.

These routes describe destination planning inputs. They do not assert that any market is served by a local branch, that stock is held anywhere, or that any destination is currently reachable — supply route, origin, price and availability are confirmed at quotation.

Commercial scope and comparison basis

Compare raw steel with raw steel, kits with kits

An offer that bundles the layers is not comparable with one that separates them. Ask each offer to show the same scope lines, so a lower figure for fewer operations is visible rather than persuasive.

Ask the offer to separate raw sections, cutting, drilling, marking, protection, trial assembly, inspection and kit packing. Define how shortages, damaged protection and drawing changes will be handled in the accepted commercial scope.

Ask for the offered mill and origin, section schedule, quantity basis, processing scope, packing, commercial validity and exclusions. State the Incoterm with its named place and edition, who unloads, and the requested delivery window. Price, availability, production allocation, transport feasibility and dates require written confirmation.

Coordinate an export enquiry— Agree durable member identification, kit-level packing lists and handling protection for the delivery route.

Scope lines every tower offer should show separately

Raw section — mill, origin and section schedule
Cutting — cut lengths and permitted deviation
Drilling — hole pattern, gauge and edge distance
Marking — member-mark durability and placement rule
Protection — finish scope and inspection criteria
Trial assembly — extent, criteria and reporting
Inspection — document level and who validates it
Kit packing — grouping basis and shortage reporting

Price on request. An unlisted exclusion in one offer is the most common reason two tower quotes appear to differ by more than they should.

Geometry, mass and material references

Check angle geometry and quantity descriptions

Use the angle reference for the shape schedule and the mass reference for planning; neither establishes tower capacity.

Angle size chart

Check both legs and thickness before transferring the drawing into the member list.

steel angle sizes

Mass and quantity reference

Reconcile planning mass separately from the member-by-member kit count.

structural steel weight chart

EN material delivery routeUse the full approved EN grade and condition where required by the tower material schedule.en 10025 structural steel supplier

Applicability boundary: each route above is a decision aid for the layer it covers — the dimensional reference, the quantity basis, or the material standard family. None establishes project approval for a tower member, and none implies availability for a specific grade, section or quantity.

Expert insight · Standards boundary

Does a line-design standard provide the detailed tower-member design?

IEC 60826 describes loading and strength criteria for overhead lines, while its public scope excludes detailed design of components such as supports and foundations.

Buyer implication: Obtain the approved tower member and connection drawings; a line-standard reference cannot replace the detailed procurement schedule.

Source review record

Method: Review the publisher's scope and its explicit component-design boundary.
Applicability: Transmission-line design-reference checks and tower order preparation.
Limit: The source does not size tower angles, approve connections or establish local project loads.

IEC 60826:2017 design-criteria scope · Information reviewed 2026-10-15.

Hand-over map

Keep tower identity from steel order to erection kit

Tower orders do not usually fail at the material selection. They fail at a hand-over, where one party assumed the next party had already closed something. Each stage below names the input, the output and the item that must be closed before it moves on.

Responsibilities from specification to receipt
Stage and owner	Required input	Evidence or output	Risk and next action
Engineering release — Buyer's design authority	Approve tower drawings, member marks and the bill of materials.	Approved specification and drawing revision	Unapproved substitution can change the design basis. Close the item before proceeding.
Offer review — Buyer and quotation team	Reconcile raw/processed scope, holes, protection and assembly exceptions.	Written technical exceptions and commercial scope	An unlisted exception can survive into the purchase order. Close the item before proceeding.
Material release — Mill, inspector and buyer as agreed	Check heat identity, processed dimensions, finish and kit count.	Accepted documents linked to the order items	Missing heat identity can make an otherwise correct section unacceptable. Close the item before proceeding.
Receipt and reconciliation — Receiving team	Record shortages or damage against the member-level packing list before erection.	Delivery record, item count and discrepancy record	Record any mismatch before the material is incorporated into work. Close the item before proceeding.

Comparability

Evidence that makes tower kits installable

The point of asking for this evidence is not administration. It is that two offers built on the same stated acceptance can be compared line by line, and a kit can be reconciled before erection rather than during it.

Member and grade

Released bill of materials and heat evidence.

List member mark, full grade, section and quantity.

This makes competing offers easier to compare against the same acceptance requirement.

Holes and orientation

Approved detail drawings and dimensional inspection plan.

State hole pattern, tolerances, cuts and member orientation.

This makes competing offers easier to compare against the same acceptance requirement.

Protection and fabrication

Approved processing/protection specification and inspection records.

Identify galvanizing or other finish scope and inspection criteria.

This makes competing offers easier to compare against the same acceptance requirement.

Buyer FAQ

Transmission-tower steel questions

These are the questions that come up once the tower drawings exist but the purchase basis does not — what still has to be confirmed before a member schedule becomes an order.

Can tower capacity be selected from angle size?

No. The approved structural design, loads, connections and full member arrangement control capacity.

Is a raw-section offer a fabricated-kit offer?

No. Cutting, drilling, protection, marking and kit completeness need explicit scope and acceptance.

Are equal angles always enough to identify the member?

No. Include leg sizes, thickness, cut lengths, holes, orientation and member mark.

When is trial assembly included?

Only within an agreed scope. Define the extent, acceptance criteria and reporting in the order if required.

How should kits be packed?

Agree kit grouping and durable member marks with a member-by-member packing list and receiving check.

Does IEC 60826 replace tower drawings?

No. Its line-design scope does not provide the detailed support and connection drawings needed for fabrication.

Qualified RFQ

Request a member-complete tower steel offer

Send the approved bill of materials, detail drawings, grade, processing and protection scope. Ask for kit-level quantities and clearly listed exclusions.

Prepare and copy the summary above, then open the structural-steel RFQ and paste it into Product Requirement. Add your name, company and reply email on that form. Supporting drawings can be shared through the destination's verified contact process.
