Industries · Automotive · Steel Tubes
Build the automotive tube order from the approved part number and revision, then lock grade, manufacturing route, condition and dimensional controls. Separate prototype or trial material from released series supply. A general tube-standard certificate cannot replace the customer’s component approval and change-control requirements.
Automotive is an industry context, not one tube specification. Mechanical components, formed parts and fluid-system items require separate product and validation decisions. No OEM approval or automotive certification is claimed here.
Programme Controls
Identify safety or functional criticality, forming and joining operations, traceability depth and the customer’s required approval package. Changes in mill, route, condition, finish or inspection can matter to the part even where nominal dimensions stay the same. State who approves those changes.
A safety-relevant component, a structural bracket and a fluid line do not carry the same validation scope. The criticality of the part sets how much evidence the order has to produce — and it is defined by the customer, not inferred from the tube description.

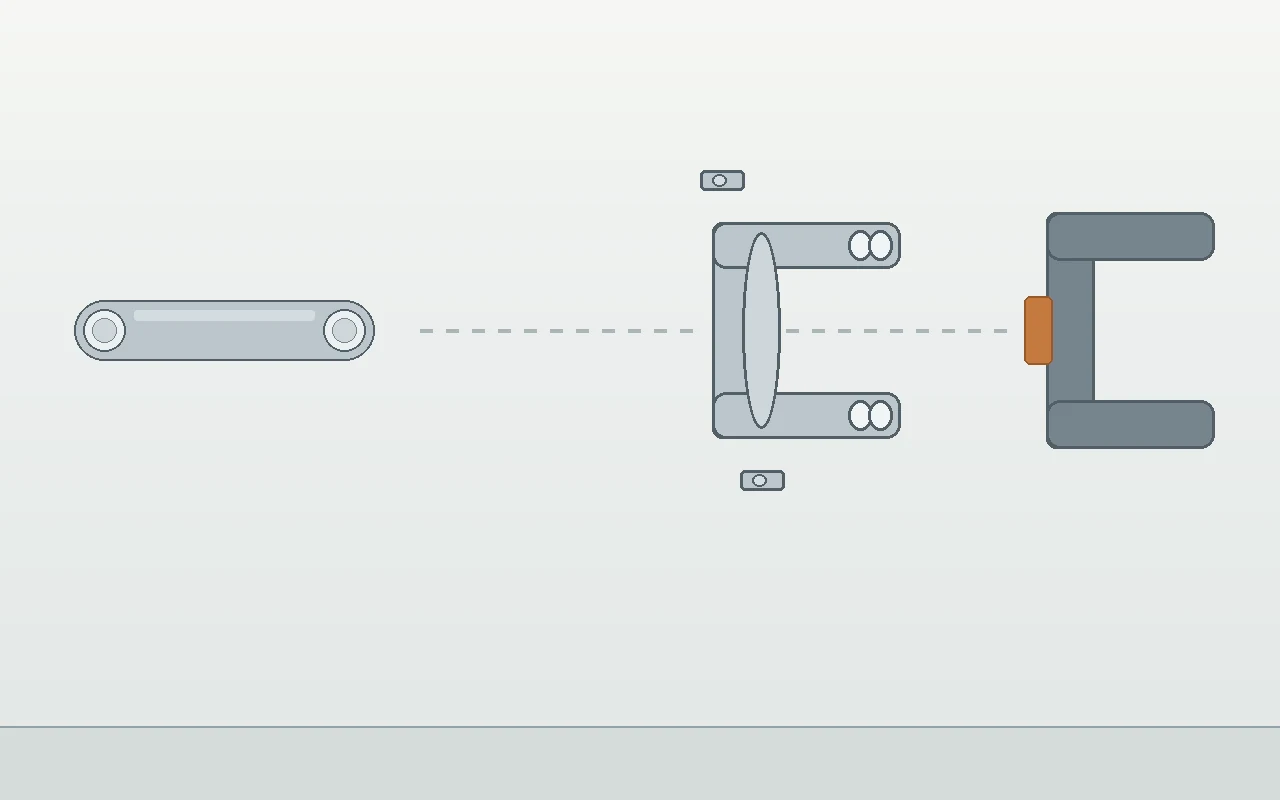

Machining, bending, welding and finishing each interact with the tube’s grade, condition and tolerances. Two parts made from the same nominal tube can need different callouts because the operations performed on them differ.
Where the component was validated against material from a producing source, or produced by a particular route, that becomes a controlled feature of the order. A conforming substitute is not the same article unless the change is approved.
An automotive tube enquiry is not a request for a tube. It is a proposal for a controlled supply, and the questions it has to answer are the same ones the customer’s own change-control process will ask later: which revision of which drawing is being bought against, which manufacturing route and condition were approved for that part, which dimensional features carry the function, and how a delivered lot is tied back to all of it. Answering those at enquiry stage is what turns a quotation into a supply scope a programme can actually run. Leaving them implicit is what lets a conforming tube arrive at a part it was never approved for.
RFQ Mapper
Capture the decisions below, prepare a review summary and copy it to the tube RFQ. The prepared summary supports purchasing review only. Release series supply after the required customer approval; identify every material, mill or process change as an exception.
Complete the specification to prepare a review summary.
Prepared specification
The prepared summary supports purchasing review only. Release series supply after the required customer approval; identify every material, mill or process change as an exception. This page prepares the summary locally and does not send it anywhere; the destination RFQ owns contact collection and submission.
Route Decision
Three bracket questions separate the routes before a grade is named. Each one changes which requirements the part carries, and none of them is settled by the tube’s nominal size.
| Decision | Why it matters here | Before you enquire |
|---|---|---|
| Machined part | Grade, condition and allowance should suit the approved machining plan. | Send the finished-part envelope and inspection criteria. |
| Formed or joined component | The approved material route interacts with production qualification. | State forming, joining and validation requirements. |
| Fluid-system item | Mechanical-tube acceptance may not establish system suitability. | Use the approved fluid-service and connection specification. |
Not sure which product family the supply belongs to? Explore the full steel-tubes range. It sets out the types, standards and enquiry path for every route named here.
Use when the customer explicitly approves its grade and condition.
Use where the drawing selects that welded drawn route.
Confirm seamless route and condition against the approved component requirement.
Acceptance Basis
Automotive is an industry context, not one tube specification. Mechanical components, formed parts and fluid-system items require separate product and validation decisions. No OEM approval or automotive certification is claimed here.
| Specification decision | Applicability and limit | Evidence to request | RFQ action |
|---|---|---|---|
| Part identity | Programme and revision govern the requirement. | Controlled drawing and customer material specification. | Identify part number and approval status. |
| Route and condition | A process change can require renewed part review. | Approved tube callout and process-change record. | State allowed route, grade and condition. |
| Critical features | Nominal size does not define the customer’s functional limits. | Agreed dimensional report and applicable capability/validation evidence. | Identify critical dimensions and required evidence. |
| Lot and change control | Repeat supply needs an agreed identity and change process. | Heat/lot mapping and accepted notification requirements. | Define traceability and approval owner. |
The left-hand column is what the order has to name. The middle two are what the supplier is asked to evidence against it, and the limits are the reason none of them can be inferred from the tube’s description. Use the specification mapper to turn these decisions into an enquiry the commercial department can answer line by line.
Document Package
Agree the required document package before requesting trial material. Keep mill certification, tube inspection and customer part approval distinct, and map the delivered lot back to the approved part revision.
| Control | What to examine | When and limits | Next action |
|---|---|---|---|
| Part identity | Controlled drawing and customer material specification. | Before material acceptance; confirm feasibility and cost at quotation. | Identify part number and approval status. |
| Route and condition | Approved tube callout and process-change record. | Before material acceptance; confirm feasibility and cost at quotation. | State allowed route, grade and condition. |
| Critical features | Agreed dimensional report and applicable capability/validation evidence. | Before material acceptance; confirm feasibility and cost at quotation. | Identify critical dimensions and required evidence. |
| Heat and item identity | Mill test certificate linked to heat markings and packing list. | Before release and again on receipt; a sample certificate is not evidence for the shipped heat. | Request traceability through cutting, bundling and delivery. |
A sample certificate is not evidence for the shipped heat. The record that matters at receipt is the one tied to the material actually delivered, and it is worth stating that expectation on the order rather than discovering it at goods-in.
Operating Duty
The drawing and service envelope govern acceptance. These paths address different purchasing decisions; an application label does not approve a material.
Translate the programme requirements into a specific tube application.
Review allowance and fit for sleeves, spacers or similar approved parts.
Align tube receiving, processing and revision control for repeat batches.
GCC Destination
Use the destination to close the quotation scope, then confirm feasibility and commercial terms in writing. Country flags identify the destination; quotation must confirm the supply route, origin and availability for this order.
A destination page plans the commercial and documentary side of the order. It does not change the acceptance basis on your drawing, and none of them implies a local office, warehouse or stock position.
Remaining Decisions
Use functional requirements to select the tube acceptance, then manage programme evidence separately.
Connect incoming limits to the approved component drawing.
Specify surface requirements that affect forming, joining, finishing or final interfaces.
Commercial Basis

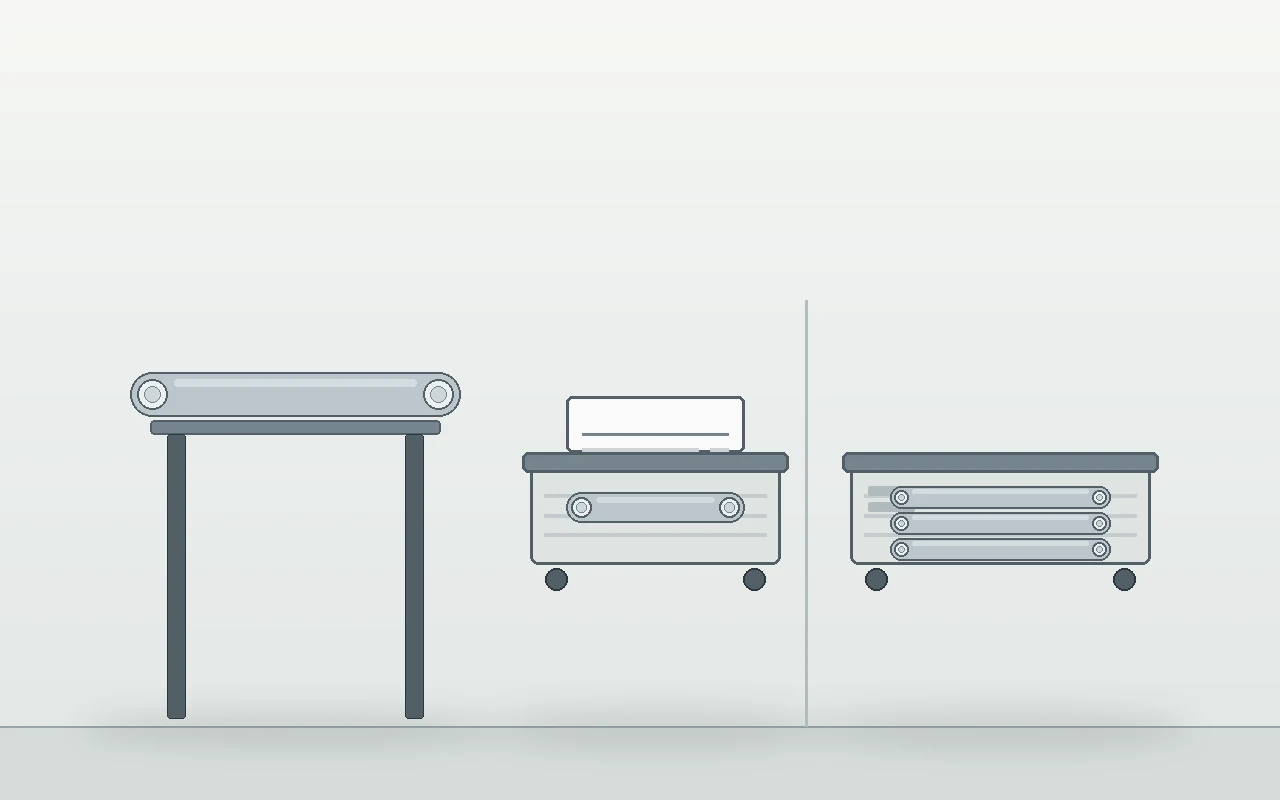

Quote prototype, validation and series quantities separately. Define length yield, cut-piece identity, inspection scope and change notification; do not infer production allocation or automotive approvals from a tube catalogue.
Trial, validation and series demand carry different evidence and different release status. Quoting them as one line is how trial acceptance gets mistaken for series approval.
The cut pattern decides how much usable length a delivery actually yields, and how each cut piece stays tied to the lot it came from.
State which inspections are performed, on what sampling basis, and which records travel with the delivery — before the order is placed, not after.
Agree how a material, mill or process change is disclosed and how long the offer holds. Both are commercial terms, not afterthoughts.
Ask for the offered mill and origin, tube schedule, quantity basis, processing scope, packing, commercial validity and exclusions. State the Incoterm with its named place and edition, who unloads, and the requested delivery window. Price, availability, production allocation, transport feasibility and dates require written confirmation.
Where the enquiry involves an international leg, coordinate an export enquiry — align tube identification, bundle protection and transport documents with the named delivery place before dispatch.
Pricing is on request. No rate is published before the revision, the approved basis and the delivery point are stated.
Expert Insight
JSA lists automotive parts within the machine-structure tube context of G3445. That scope does not approve a specific component, customer programme or supplier.
Buyer implication: Keep the material certificate and customer part-approval package as separate release requirements.
Method: Read the publisher’s scope and distinguish product-family coverage from customer qualification. Applicability: Illustrative G3445 machine-structure tubing. Limit: No OEM approval, certification status or component performance is inferred.
JSA JIS G3445:2025 public preview · Information reviewed 2026-10-16.
Why Control It
Each of these is a field on the order, and each one exists so that acceptance can be shown against the requirement rather than argued after the fact.
Controlled drawing and customer material specification.
Identify part number and approval status.
Approved tube callout and process-change record.
State allowed route, grade and condition.
Agreed dimensional report and applicable capability/validation evidence.
Identify critical dimensions and required evidence.
From Specification To Receipt
Four stages, each with an owner. An item that is still open at any stage is a decision waiting to be made by whoever receives the material rather than by whoever specified it.
| Stage and owner | Required input | Evidence or output | Risk and next action |
|---|---|---|---|
| Engineering releaseBuyer’s design authority | Customer releases part revision, material and validation scope. | Approved specification and drawing revision | Unapproved substitution can change the design basis. Close the item before proceeding. |
| Offer reviewBuyer and quotation team | Buyer resolves trial/series quantities and technical exceptions. | Written technical exceptions and commercial scope | An unlisted exception can survive into the purchase order. Close the item before proceeding. |
| Material releaseMill, inspector and buyer as agreed | Quality team accepts tube records and required customer approval. | Accepted documents linked to the order items | Missing heat identity can make an otherwise correct tube unacceptable. Close the item before proceeding. |
| Receipt and reconciliationReceiving team | Production reconciles lot identity before consuming the material. | Delivery record, item count and discrepancy record | Record any mismatch before the material is incorporated into work. Close the item before proceeding. |
Each stage has an owner, and every one of them can be settled before the order is placed. The mapper above collects them in one place.
Prepare your specificationCommon Questions
No. It supports material acceptance; the customer’s component and process approval remains separate.
Follow the agreed notification and approval process. Make the proposed change explicit before shipment.
Separate their quantities, evidence and release status so trial acceptance is not mistaken for series approval.
No. Request actual relevant supplier and project evidence when the purchasing specification requires it.
Part and revision, grade, route, condition, critical dimensions, validation scope, traceability, quantities and destination.
Enquiry Handoff
The prepared summary supports purchasing review only. Release series supply after the required customer approval; identify every material, mill or process change as an exception. Include the completed fields and the controlling drawing revision so exceptions can be returned against the right requirement.
Prepare and copy the summary above, then open the steel-tubes RFQ and paste it into Product Requirement. Add your name, company and reply email on that form. Supporting drawings can be shared through the destination’s verified contact process.
This page prepares your enquiry locally. Opening the RFQ does not submit it. A submission is complete only when the receiving form returns a genuine acknowledgement.
