Structural Steel · Steel Flat Bar
Steel Flat Bar, Specified by Dimension and Edge

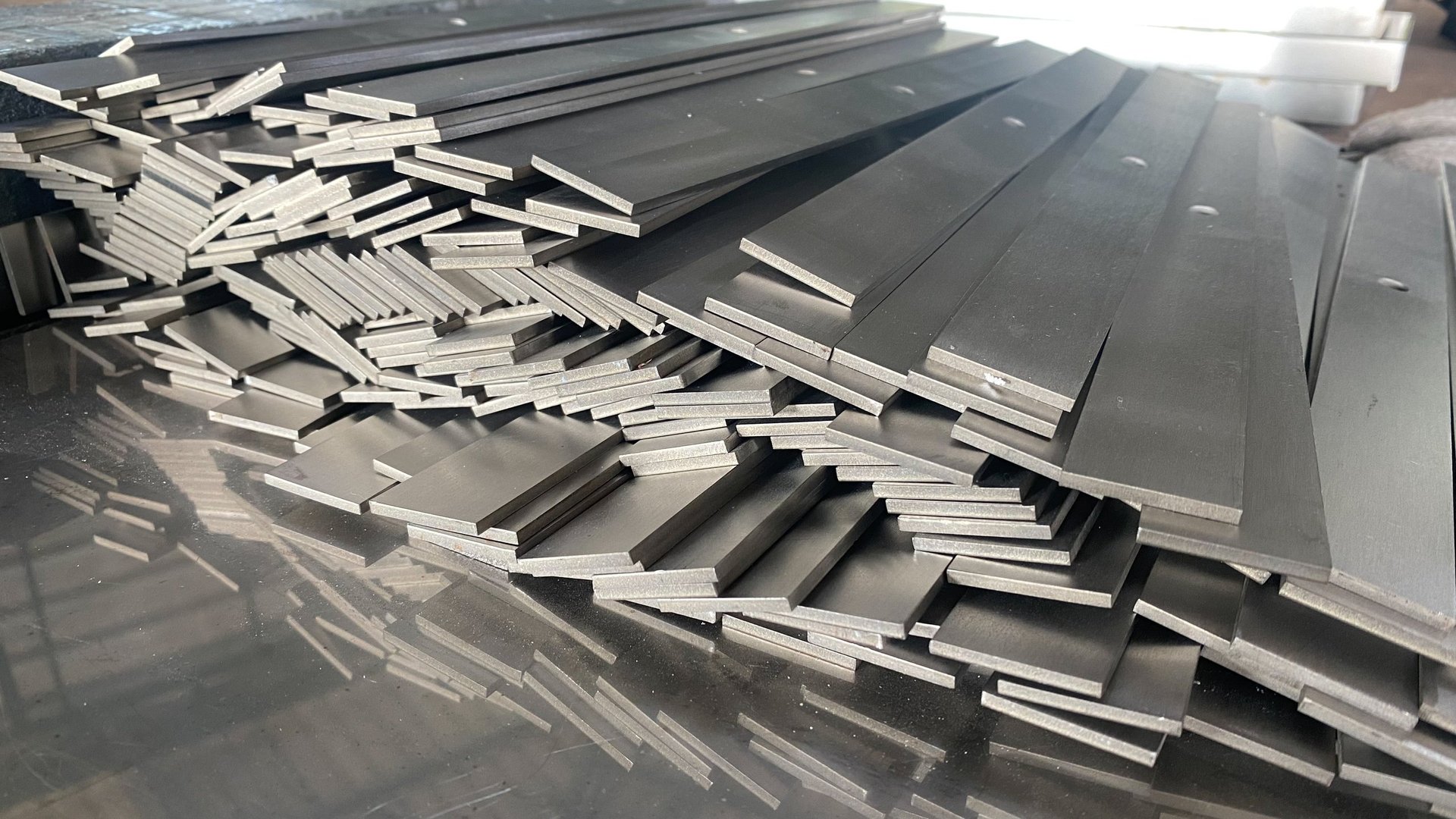

Flat bar is a rolled rectangular section — width, thickness and length, nothing more — and it is almost always bought for secondary work: brackets, tabs, straps, base plates and connection components. It is not a beam, and a schedule that treats it as one has confused a fabricated element with a structural member.
Price on request · Dimensions, edge condition and grade confirmed before quoting
Fit & Selection
When flat bar is the right purchase line — and where the term does too much work
Flat bar earns its place as a fabricated element: a bracket, a tab, a strap, a packer. These are the points that decide whether it suits the detail, and each one is settled before the steel is ordered.
The direct answer
Order flat bar by width × thickness × length, and treat it as a rolled rectangular section in its own right — not as a strip cut from a wider plate. State the material standard and grade separately from the dimensions, and say what the finished piece has to do: whether it bends, whether it is punched or drilled, how it is welded and what edge the detail needs. Capacity decisions stay with the engineer of record.
It is a section, not a strip off a plate
Flat bar is rolled to its own thickness and width, as a discrete product with its own tolerances and its own edge condition. A strip cut from a wider plate carries the plate's thickness tolerance and the plate's edge, which are set by a different standard entirely. The two can look identical on a drawing and behave differently in the shop.
Confirm which one the schedule intends. A cut strip is not an automatic substitute for a rolled flat bar, and the difference shows up in the tolerance and at the edge.
Width and thickness travel together
Flat bar is described by a width and a thickness that are both part of the product, not by one dimension with the other assumed. A schedule that names a width but not a thickness has described a family, not a bar — and the thickness is usually what the detail is actually dimensioned around.
State both, with units. The permitted tolerance on each is set by the dimensional standard that governs the series, at the size you are buying.
The edge has a condition, and the detail may depend on it
A rolled bar arrives with a mill edge that has its own profile and its own permitted variation. Where a piece is sheared, sawn or flame-cut to length, the cut end has a condition of its own — squareness, burr and edge quality — that the product standard does not describe.
Where fit-up or welding depends on the cut end, say so in the enquiry. What the drawing expects at the cut face is a specification input, not a shop assumption.
Straightness matters more than it looks
Flat bar is used in long, thin sections where a small deviation accumulates along a run — a strap that has to lie flat, a rail that has to line up, a tab that has to meet a hole pattern. Straightness is a product property, and it is worth stating where the detail is sensitive to it.
Where the piece has to sit flat or align over a distance, raise straightness as a requirement rather than discovering it at fit-up.
Punching, drilling and bending are process decisions
Flat bar is punched, drilled, bent, notched and welded constantly, and each of those operations constrains the material in its own way. A bar that a press can punch easily is not automatically the bar a tight bend radius will accept, and the welding procedure brings its own requirements.
State the operations the piece goes through. A material chosen without a view of how it will be worked is one the fabricator may have to price around.
The finish is its own line
Where a coating or protection system applies, it is governed by its own standard rather than by the flat bar product standard. Galvanizing in particular imposes fabrication-sequence and detailing requirements, so it belongs in the chain as a separate link rather than as a note on the material line.
The finish does not follow from the grade. It has to be specified, and it changes the sequence the shop works to.
This page sits inside the whole section range
Flat bar is one family among several open sections. The choice between them turns on the connection geometry the detail needs rather than on price, and the full range of shapes — with the member question each one answers — is on the types hub.
Settle these before the enquiry
- Width and thickness, both stated with units
- Rolled bar, or a strip cut from plate
- Edge condition, and what the cut ends need
- Whether the piece bends, punches or welds
- Material grade, as its own field
Flat-Bar RFQ Composer
State the piece and this page composes the enquiry
This is a completeness composer, not a tolerance calculator. It returns no dimensional value, no cut-length position, no capacity and no price — it returns the fields your enquiry still has to carry, the product forms worth comparing, and a summary you can hand to the commercial desk.
Five RFQ fields
0 / 5 answeredAll five are required. The thickness and the edge condition are the two most often left to the shop — and the two that change the quote most.
Your RFQ summary appears here
Set the five fields on the left and compose the enquiry. The result reports what is still open, which product forms are worth comparing against your detail, and the fields to carry into the RFQ.
Dimensions & Edge Condition
Six fields that describe a flat bar — and the two buyers most often leave open
A flat bar is described by its width and its thickness together, plus the length, the edge it arrives with, how straight it has to run, and the steel it was rolled from. The edge and the thickness are the fields most often left to the shop.
| Field | What it determines |
|---|---|
| Width | The breadth of the flat face. It is one of the two dimensions that describe the product, and it is not interchangeable with the thickness beside it. |
| Thickness | The second describing dimension. Two bars of the same width and different thickness are different products, and the detail is usually dimensioned around this one. |
| Length, and cut lengths | Whether mill lengths are acceptable or the bar has to arrive at a cut length, and to what tolerance the ends are to be prepared. |
| Edge condition | Whether the bar is supplied with its rolled mill edge, or cut to length by shearing, sawing or flame cutting — each of which leaves a different end condition. |
| Straightness | How true the bar has to run. It matters most where the piece lies flat, lines up over a distance, or has to meet an existing hole pattern. |
| Material standard and grade | Stated separately from the dimensions. The size of a bar says nothing about the steel it was rolled from, and the two are governed by different documents. |
These are the fields this page can tell you matter. The permitted tolerance on any dimension, and the range available in any series, are set by the dimensional standard that governs your product — not by this page.
The edge is where a flat-bar specification usually goes quiet
A rolled bar arrives with a mill edge that has its own permitted variation, and that edge is part of the product. The moment the bar is cut to length, a second edge condition is introduced — squareness, burr and face quality — produced by a process the rolled product standard does not describe. When a fit-up or a weld depends on that end, the requirement is real and it has to be stated. Leaving it unstated is not neutral; it simply transfers the decision to whoever cuts the bar.
The size says nothing about the steel
The width and thickness of a bar are governed by its dimensional standard; the grade is governed by the material standard. They are different documents, and a requirement that cites only one of them has left the other unstated. Where a grade has to be evidenced, the certificate is issued against the material standard.
How ASTM structural requirements are organisedQuality & Documents
What the evidence has to line up with
For flat bar the question is not only what the certificate says, but which product it describes — because a rolled bar and a strip cut from plate produce different document trails.
Dimensional and material evidence are separate checks
A material certificate states what the steel was tested to. It does not describe the width, the thickness, the edge or the straightness of the bar. Reconciling a flat-bar delivery therefore means measuring the product against its dimensional standard and reading the certificate against the grade — two separate exercises with two separate sources.
The cut end is not covered by the product standard
Where a bar is cut to length, the cut face is produced by a process the rolled product standard does not describe. Its squareness, burr and edge quality are a matter between the buyer and whoever cuts it, which is why they belong in the enquiry rather than in a fit-up argument later.
Traceability through the process chain
Flat bar is frequently cut, then punched, then formed, then welded, then coated. Each step makes it harder to associate a finished piece back to its heat. Where the project requires traceability, how it is to be carried through those steps has to be agreed before the work starts.
A cut strip from plate is a different document trail
If the bar was cut from a wider plate rather than rolled as a bar, the certificate describes the plate and its heat. The delivered strip is a product of that plate, and the thickness tolerance it carries is the plate's. Knowing which product form you bought is the first step in reconciling the documents.
What to ask to be evidenced
- The document that covers the form actually supplied — a rolled bar, or the plate it was cut from
- The material standard, edition and grade as supplied, stated separately from the dimensions
- The heat or cast identity, and how traceability is carried through cutting, punching, forming and coating
- The dimensional standard the bar series belongs to, so the product can be checked against a permitted tolerance
- The condition the cut ends are expected to arrive in, where the fit-up depends on it
- Any supplementary requirement the project adds beyond the standard citations
Confirm which certificate, test and marking your project's standard actually requires, against the standard itself and the edition the project is bound to. This page does not state those requirements.
Applications
Where a flat element earns its place
The application does not change the product decision — but it does change which material, inspection and documentation requirements arrive with it.
Brackets, cleats and connection tabs
Flat bar is the shortest route to a bracketed connection where the piece is essentially a flat element with holes. The width and thickness are set by the fixing pattern and the leg length the detail needs.
Straps, ties and bracing elements
Long thin flat elements used as straps or ties are bought by the run rather than by the piece, and straightness and cut-length control matter more here than in most flat-bar uses.
Base plates, packers and shim plates
Flat bar serves as base and packing material where a controlled thickness is wanted under another element, and where the piece is not called on to carry a bending role of its own.

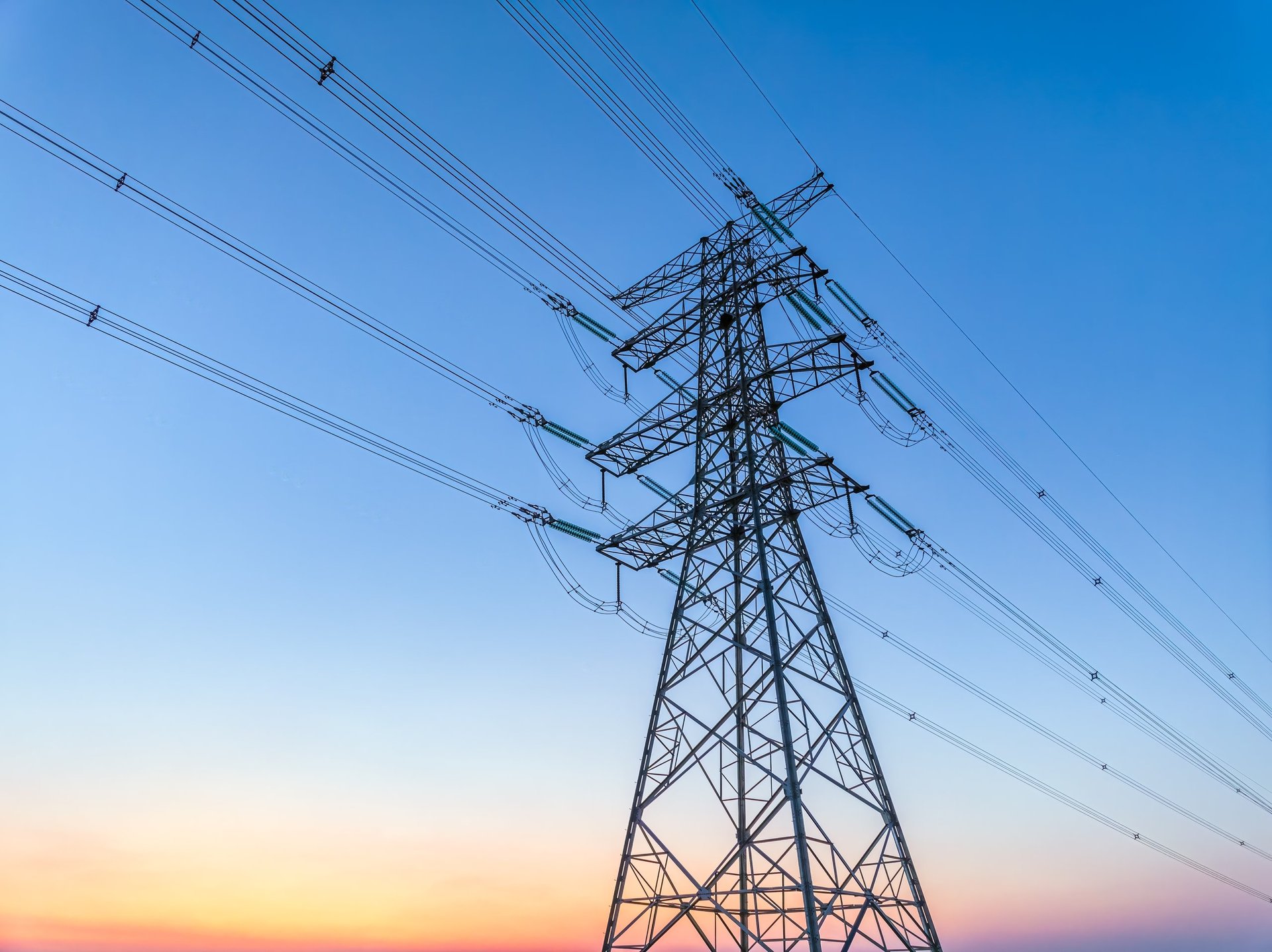

Lattice and transmission structures
Lattice work uses flat and angle elements heavily as secondary and bracing members, and the structure's own detailing conventions normally decide the section before the material is considered.
transmission tower steel supplierHandrails, guards and architectural metalwork
Architectural and safety metalwork uses flat bar for rails, frames and infill where a consistent flat face is wanted and the appearance of the edge matters as much as the strength.
Fabricated repairs and site modifications
In the shop and on site, flat bar is often the fastest route to a plated or strapped repair, provided the bar's tolerance and edge suit the fit-up the repair needs.
GCC Supply
The product decision travels; the shipment planning does not
A flat bar means the same thing in Dubai as in Dammam. What changes by destination is the documentation pack, the discharge port and the handling the long product needs in transit.
United Arab Emirates
Local supply and re-export enquiries, where the bar dimensions and the certificate requirement are usually confirmed on the same schedule.
Structural steel for United Arab Emirates
Saudi Arabia
Large project packages where the documentation pack and the inland route shape the order as much as the dimensions do.
Structural steel for Saudi Arabia
Qatar
Project-driven demand where the technical submittal is prepared alongside the enquiry rather than after it.
Structural steel for Qatar
Oman
Port-led planning: confirm the discharge point, the documents required and the Incoterm before the tonnage is fixed.
Structural steel for Oman
Bahrain
Shorter sea legs where handling at both ends, rather than transit time, is usually the constraint to plan around.
Structural steel for Bahrain
Kuwait
Industrial and infrastructure demand, where the dimensions and the paperwork have to be agreed before the steel is committed.
Structural steel for KuwaitThese pages set out the supply route and the enquiry handling for each destination. They do not claim local warehousing, stockholding, a branch presence or a delivery timescale — those are confirmed against your own order, not stated in advance.
Commercial & Logistics
What a flat-bar quotation is built from
A quotation is assembled from stated fields. Where one is missing, the figure returned rests on an assumption — and assumptions are what make two quotations for the same detail incomparable.
Where a field is unknown it is carried into the enquiry marked verify-before-quote rather than filled with an assumption. Load-path and capacity decisions remain with the engineer of record.
Two quotations are only comparable when both rest on the same fields
A price returned against a width alone and a price returned against a full set of dimensions with the edge condition stated are not the same offer, even when the numbers sit close together. Stating the fields first is what makes a comparison meaningful rather than merely numerical.
Adjacent Shapes
What each neighbouring form is actually for
A flat bar is often considered alongside four other forms. The comparison that matters is what the element has to do and how it connects — not which one happens to price lowest.
Strip cut from steel plate
Choose it when: A non-standard width is needed and the tolerance and edge of the parent plate are acceptable for the detail.
How it differs: A cut strip inherits the plate's thickness tolerance and the plate's edge, which are governed by the plate standard rather than a bar standard. Rolled flat bar is a product in its own right with its own tolerances — the two are bought on different terms and are not interchangeable by default.
Steel angle
Choose it when: The detail needs two faces at right angles — a corner, or a brace connection taking work in two directions.
How it differs: An angle is a bent section with two legs meeting at a corner; flat bar presents a single flat face. The angle adds a second plane of material, which is a different connection geometry rather than a thicker flat element.
steel angle sizesSteel channel
Choose it when: An open profile with returns is wanted for framing, rails or edge work rather than a single flat element.
How it differs: A channel offers two flanges on one side of a web, so it resists in a plane that flat bar does not. It is a framing section where flat bar is a plate element.
steel channel sizesSteel plate
Choose it when: The element is a large flat area rather than a narrow strip — a full base plate or a gusset sized by its area.
How it differs: Plate is bought by thickness and area against its own standard, and is not a narrow rolled section. Where the piece is wide relative to its thickness, the plate line is usually the right one.
Hollow sections
Choose it when: A closed profile is wanted, bought by wall thickness against its own dimensional standard, and the connection is detailed around a closed section.
How it differs: A hollow section encloses its cross-section and belongs to a separate product line with its own tolerances, material options and connection practice. It is not an open-section alternative to a flat bar, and the two are not compared on the same axis.
hollow sections supplierBeams and structural sections
Choose it when: The member actually spans or carries load along its length as a designed structural element.
How it differs: A beam is a rolled structural profile chosen for its load-carrying geometry, and it is governed by a structural section standard. Flat bar is a rectangular section usually bought for secondary and fabricated work, and it is not a substitute for a designed spanning member.
steel beam sizesThese are descriptions of what each form is for, not a substitution guide. Swapping one form for another changes the detail, and where an alternative is permitted it is approved by the design authority for that specific element rather than inferred at the point of order.
Where a section's own dimensions are the open question rather than the flat bar's, the published size references for those sections carry the figures — this page deliberately states none.
Expert Insight
Why a flat bar is checked twice, against two different documents
The point that decides most flat-bar delivery disputes: the certificate and the supplier's measurements are answering two different questions, and neither answers the other.
A mill certificate is a statement about the steel: its composition, its heat and the test results obtained from it, against a named material standard. What it does not describe is the product — because the width, the thickness and the permitted variation on both belong to the dimensional standard instead. That is why a delivery of flat bar is verified in two separate motions, from two separate sources.
The dimensional check is a measurement: the bar is assessed against the permitted tolerances for its series. The material check is a document comparison: the certificate is read against the grade the drawing cited. Neither substitutes for the other, and a buyer who checks only one has verified half the requirement.
There is a third consideration that is easy to miss: the cut end. Where the bar is supplied in mill lengths, only the rolled product's own edges are in play. Where it is cut to length — on a shear, a saw or a thermal process — a new edge condition is created that the rolled product standard does not describe. If the fit-up or the weld depends on that end, it is a requirement of the order and not a detail the supplier will infer.
What this page does not state
- No width, thickness, straightness or tolerance value is quoted here. Those belong to the dimensional standard that governs the series, at the size you are buying.
- No fixed cut-length inventory or availability. Whether the bar arrives in mill lengths or cut to size is settled against your own enquiry.
- No structural capacity, resistance, stress or load figure. Those are determined by the engineer of record against the design code and the actual loads.
- No claim that flat bar is a substitute for a designed structural section. It is bought for fabricated and secondary work, and the role it plays is set by your drawings.
Where a requirement has to be checked, check it with the publisher of the governing standard or with the engineer of record — and record the edition you checked against.
Buyer Advantages
What we do about the things that go wrong
Each item below starts from a real procurement concern on a flat-bar order, states the practice that addresses it, and ends at the outcome it produces.
Width, thickness and length are collected as separate fields
The composer asks for each dimension with units and a separate field, which is the difference between a bar that can be quoted against and a width that has to be interpreted. It is the most common source of a returned enquiry in this product line.
The edge and the cut end are treated as requirements
Because the cut end is not covered by the rolled product standard, the composer records the edge condition as its own input rather than leaving it to the shop. That keeps a fit-up requirement on the enquiry instead of in a later conversation.
Process operations are captured, not inferred
The composer asks what happens to the piece — bending, punching, welding, coating — so the material requirement is set with the fabrication route in view rather than discovered at the press brake.
Grade stays a separate line throughout
The material standard and grade are carried as their own fields, never folded into the dimension description. That keeps the size conversation and the steel conversation separate, which is what makes both checkable against their own documents.
Cut-length assumptions are never made
This page states no fixed cut-length availability. Whether the bar arrives in mill lengths or cut to size is settled against your enquiry, because inventory and stock position are not things a product page can honestly assert.
Capacity stays with the engineer
Nothing here computes a load, a stress or a capacity, and nothing asserts that a bar is adequate for a role. That boundary is stated rather than implied — a supplier's product page is not a design authority.
None of these rest on a claim about scale, stock, price or lead time. They describe how an enquiry is assembled and where the responsibility boundaries sit — which is what can be stated honestly before an order exists.
Enquiry to Delivery
Who owns what, at every stage
A flat-bar order moves through six stages. Each one names what comes out of it, who is responsible, and what a missing output costs later.
| Stage | Owner | Output |
|---|---|---|
| Establish the detail | Designer or detailer | A drawn element showing the fixing pattern, the leg lengths and what the piece has to do. |
| Fix the dimensions | Buyer or estimator | Width, thickness and length, each stated with units against the governing dimensional standard. |
| State the edge and the cut | Buyer with the fabricator | Whether a rolled mill edge is acceptable, and what condition the cut ends have to arrive in. |
| State the material | Buyer, against the project specification | Material standard and grade designation, named separately from the dimensions. |
| State the process route | Buyer with the fabricator | Whether the piece is bent, punched, welded or coated — and in what sequence. |
| Verify on delivery | QA or receiving inspection | A dimensional check against the product standard, and a document check against the form actually supplied. |
The stage that is most often skipped
Stating the edge condition is the step that gets compressed most often, usually because a schedule simply gives a width and a thickness and treats the rest as obvious. It is not obvious: the rolled edge and a cut end are produced by different processes with different conditions, and whether either matters depends on the detail. That is exactly why the composer above asks for it as its own field rather than folding it into the dimension description.
FAQ
Questions that come up once the detail is drawn
Is flat bar just a strip cut from plate?
Not necessarily, and the difference matters. Rolled flat bar is a product in its own right, with its own width and thickness tolerances and its own edge condition. A strip cut from a wider plate carries the plate's thickness tolerance and the plate's edge, governed by a different standard. They can look the same on a drawing and behave differently in the shop, so confirm which one the schedule intends rather than assuming the two are interchangeable.
Can I use flat bar as a structural member?
Whether a given element is adequate for a load-carrying role is a design determination, made by the engineer of record against the design code and the actual loads — not something a supplier's product page can answer. In practice flat bar is overwhelmingly bought for secondary and fabricated work: brackets, tabs, straps and packing. Where it is being used structurally, the specification and the approval come from your project documents.
What do I need to state to get flat bar quoted properly?
Width, thickness and length with units; the material standard and grade, stated separately; the edge condition, including what is expected at any cut end; whether the piece is bent, punched or welded; and the finish. Where a field is unknown, say so rather than leaving it blank — a quoted assumption and a quoted specification look identical on a quotation and behave completely differently on delivery.
Does the material certificate cover the dimensions?
No. A material certificate describes the steel — what it was made from and what it was tested to. The width, thickness, edge condition and straightness of the bar belong to the dimensional standard, and they are confirmed by measuring the delivered product against the permitted tolerances. A document check and a dimensional check are separate exercises.
Why does the edge condition matter so much on a flat bar?
Because a rolled bar arrives with a mill edge that has its own permitted variation, and where the bar is cut to length the cut end is produced by a process the rolled product standard does not describe. If the fit-up or the weld depends on that end — squareness, burr, edge quality — it is a requirement that has to be stated. It is not something the product standard covers on your behalf.
What if my detail does not fit one of the described forms?
Then it is worth settling with your fabricator before the enquiry, and the composer will carry the open field forward rather than choosing for you. Whether the piece is a rolled bar, a cut strip or a different section changes the tolerance, the edge and the document trail — so it changes the quote as much as the drawing.
Request a quote for Steel Flat Bar
Send the width, thickness and length with units, the dimensional standard, the material grade, the edge condition, the quantities and the destination — or send it with some of those still open and say which. Price is always on request.
