A size chart has one job it must not fail: keeping the trade name of a size apart from the dimensions you actually procure. A common 48.3 mm trade size does not mean that every tube carrying that name shares the same wall, tolerance, grade or finish — and a shared nominal diameter certainly does not establish that a coupler designed around one standard's tube will fit another's. Sizes are comparable only once each candidate carries its own standard and revision, its own tolerance basis, and its own units.
Free, no-obligation technical review
Information current as of
Send these inputs
Working technical tool
Enter two candidate sizes, each with its own standard, dimensions, units and tolerance source. The crosswalk reports what the two rows genuinely share and states what none of it establishes. It never returns “equivalent” — that judgement is not a chart output.
Row A
No designation entered
Outside diameter *
Wall thickness *
Length *
Row B
No designation entered
Outside diameter *
Wall thickness *
Length *
Crosswalk result
Not yet run
Nothing entered yet.
Enter two candidate sizes with their own standards, dimensions, units and tolerance sources. The crosswalk compares designations only once each row carries its dimensional source.
Basis checked
Match
Shared designation
NoShared nominal OD
NoShared standard
NoShared tolerance source
NoMissing fields
Row 1 — 12 missing
Row 2 — 12 missing
What none of this establishes
Copyable RFQ line
SCAFFOLD TUBE SIZE CROSSWALK LINE --- Row A --- Size designation: TO CONFIRM Source standard + revision: TO CONFIRM Outside diameter: TO CONFIRM (basis TO CONFIRM) Wall thickness: TO CONFIRM Length: TO CONFIRM (basis TO CONFIRM) Tolerance source: TO CONFIRM — no limits can be applied without it Coupler interface: TO CONFIRM --- Row B --- Size designation: TO CONFIRM Source standard + revision: TO CONFIRM Outside diameter: TO CONFIRM (basis TO CONFIRM) Wall thickness: TO CONFIRM Length: TO CONFIRM (basis TO CONFIRM) Tolerance source: TO CONFIRM — no limits can be applied without it Coupler interface: TO CONFIRM --- Crosswalk result --- Shared designation: no Shared nominal OD: no Shared standard + revision: no Shared tolerance source: no Equivalence: NOT established — never returned by this crosswalk. Basis: nominal and actual kept separate; no conversion and no tolerance inferred. Status: comparison aid only — not an engineering approval.Transfer this into the RFQ
Both rows and the crosswalk result are carried into the enquiry form.
Assumptions and method
Method, formula and data conditions
The method is not a formula — it is a set of conditions. Each rule below exists because breaking it produces a comparison that looks settled and is not. The unit system is whatever you state, and it is never converted silently.
“48.3 mm” identifies a size family. It does not state a wall, a tolerance, a grade or a finish. The crosswalk records the designation and the dimensions as separate fields so the name can never stand in for the numbers.
Two tubes can share a nominal diameter and be made to entirely different product standards. Each row holds its own standard and revision, and a row without one is reported as missing rather than inherited from the row above it.
A nominal figure has no acceptance limits until a standard supplies them. The tolerance source is required before any row can be marked comparable, because two dimensions are only equivalent within the tolerances that govern each.
Metric and imperial designations coexist in this market, and a bare number is ambiguous. Units are a field on every dimension, and a mismatch is flagged rather than converted on the buyer's behalf.
The coupler standard anchors what the diameter has to do. A crosswalk that ignores the interface answers a question about a tube nobody is going to assemble.
The crosswalk never returns “equivalent”. It returns same-size, and then states precisely what would still have to be established before equivalence could be claimed. That judgement belongs to the responsible engineer.
| State | What it describes | What it means for the decision |
|---|---|---|
| Same designation | Both rows carry the same trade or nominal size name. | Establishes only that the two are being referred to by the same label. It says nothing about wall, tolerance, grade or finish. |
| Same nominal OD | Both rows state the same nominal outside diameter. | A shared nominal figure. It does not establish that the toleranced diameters agree, because each row's limits come from its own standard. |
| Same standard + revision | Both rows cite the same tube product standard and edition. | A genuine basis for comparison — the dimensional regime is the same. Wall, grade and finish still have to be stated separately. |
| Same standard, same tolerances cited | Both rows cite the same standard and the same tolerance source. | The strongest basis the crosswalk can reach. It is still a dimensional comparison and not an engineering approval. |
| Equivalent size | Not returned. The crosswalk does not produce this status. | Equivalence across standards is an engineering judgement resting on the design, the interface and the exposure — not a chart output. |
Source hierarchy
Each candidate’s own tube product standard first — that is where its dimensions and tolerances come from. The coupler standard next, as the interface reference. Manufacturer data only where an authorized source publishes it for the specific product.
Applicability
A crosswalk row applies to the standard, edition and product form it was recorded from. Carried to a different standard or product form, the same numbers stop describing the same thing.
Limitations
No numerical tolerance, unit weight, load capacity or dimensional limit is published on this page. The crosswalk produces no equivalence status, and it cannot settle whether a coupler fits a tube it has not been checked against.
Procurement-grade worked examples
Each example shows the input, the method applied, the result, what it means, what it changes and how to verify it. No company, project or supplier data is used or implied.
Input
A requisition names a 48.3 mm scaffold tube. Two suppliers respond with that same size name, each working to a different tube product standard. Neither quote states a tolerance basis.
Method applied
The crosswalk holds both rows at designation = 48.3 mm with their own standard fields and empty tolerance sources. Because the standards differ and neither tolerance basis is present, it refuses to mark the rows equivalent.
Result
Comparison status: same size, not shown equivalent. Both rows carry a missing-source warning against the tolerance field and are listed separately.
Interpretation
The trade name matched. Nothing else has been established — not the wall, not the tolerance regime, not the grade and not the finish. A shared designation is a starting point for comparison, not the result of one.
Decision impact
Awarding on the shared size name alone can select tube whose toleranced diameter differs from the one the coupler was specified around.
Verification step
Obtain each supplier's tube standard with edition, and the tolerance basis for outside diameter and wall, before the two responses are treated as alternatives.
Input
The scaffold design calls for a number of cut lengths derived from the bay geometry. The quotation describes lengths supplied from a stocked range.
Method applied
The crosswalk records the design cut and the stock length in separate length fields, with their units and their bases. It does not substitute one for the other or treat the difference as a rounding matter.
Result
Comparison status: length basis mismatch flagged. The two lengths are recorded but not reconciled.
Interpretation
A stock length is what is available; a design cut is what the geometry requires. Treating the first as the second moves a cutting and scheduling decision into the design without anyone having made it.
Decision impact
Cutting and waste get decided at the site rather than at the design stage, after the order is placed.
Verification step
State the cut schedule against the design geometry and confirm it can be supplied, or agree explicitly where stock lengths will be cut and by whom.
Input
Two candidate tubes are described in different unit systems. The enquiry lists both without units on the dimension fields.
Method applied
The crosswalk holds each value with an empty unit field rather than inferring one from the other or from the size designation. It flags the ambiguity and leaves the conversion undone.
Result
Comparison status: units unresolved. Neither row is marked comparable until its unit is stated.
Interpretation
A bare number is not a dimension. Converting it would require a stated factor and a stated rounding rule, and performing that silently would hide both from everyone downstream of the decision.
Decision impact
A figure compared across unit systems without conversion produces a result that corresponds to no real quantity.
Verification step
State the unit on every dimension field, convert explicitly with the factor recorded, and re-run the comparison on the converted basis.
None of the examples states a tolerance value, a unit weight or a dimensional limit. Those are set by the standard governing each supply, and each example shows the verification step that resolves it rather than a figure this page cannot evidence.
Standards and tolerance context
A size designation, the dimensions behind it, the tolerances that govern them and the interface they have to meet all come from different places. A chart goes wrong the moment they are treated as one. The tables below keep them apart.
Every row names its applicability and the verification requirement behind it.
| Line | What it governs | Verification requirement | RFQ field |
|---|---|---|---|
| Size designation | A trade or nominal name used to reference a size family. It carries no dimensions of its own. | Buyer records the designation as given, separately from the dimensions. | Designation field |
| Source standard + revision | The tube product standard the dimensions in this row come from. | Buyer cites the standard and edition for each row independently. | Standard / revision field |
| Outside diameter | The interface dimension the coupler acts on. Nominal and measured are different quantities. | Buyer states the value, its unit and whether it is nominal or actual. | OD field |
| Wall thickness | An independent dimension with its own tolerance basis in the governing standard. | Buyer states the value, unit and basis; not inferred from the designation. | Wall field |
| Length | Either a stock figure or a design cut. The two are not interchangeable. | Buyer states the value, unit and which basis applies. | Length field |
| Tolerance source | Where the permissible variation for each dimension is defined. | Buyer supplies the document and clause. No value is generated here. | Tolerance source field |
| Coupler interface | The standard defining what the coupler is designed around. | Buyer names the coupler standard and revision. | Coupler standard field |
| Finish and presented diameter | A coating adds to the outside surface, changing what the coupler meets. | Buyer states the finish and confirms the coupler range against the presented diameter. | Finish field |
Suppressed values are replaced by the exact input needed to resolve them.
| Parameter | Decision implication | Verification requirement | RFQ field |
|---|---|---|---|
| Outside diameter tolerance | The permissible variation on the dimension the interface depends on. | Not published here. Take from the tube standard governing each specific supply. | Tolerance source field |
| Wall thickness tolerance | The permissible variation on wall, defined by the standard on its own basis. | Not published here. Take from the same governing tube standard. | Tolerance source field |
| Length tolerance | The permissible variation on length, which depends on how the length is supplied. | Not published here. Take from the standard or the agreed cut schedule. | Length field |
| Straightness and ovality | Form variations that affect assembly even where the diameter is within limits. | Not published here. Confirm which parameters the accepted standard specifies. | Verification requirement |
| Interface dimensions | The dimension set the coupler is designed around, from the coupler standard. | Take from the coupler standard and confirm against the tube as presented. | Coupler standard field |
| Coating build | How much a coating adds to the presented outside diameter. | Not published here. Confirm against the coating standard and the coupler range. | Finish field |
Evidence warning
Numerical chemistry, mechanical properties, tolerances, coating thickness or mass, unit weight, load capacity and dimensional limits are not printed on this page. Each is published by the standard and edition governing your supply, and each has to be read from that document for the specific material. Where a figure is needed to proceed, the row above states the input to supply instead.
Verification and misuse controls
The first table is the documentation a size row depends on — what it verifies, who issues it, when it is needed and what breaks without it. The second is the six ways a size comparison is most often read wrongly, and the control that prevents each.
| Document / test | What it verifies | Source / issuer | When required | Dependency |
|---|---|---|---|---|
| Mill test certificate | The standard, edition and grade the tube was made and tested to | Certificate naming the accepted document, traceable to the supplied lot | Before quotation is finalised | A size row cannot be tied to the material actually offered. |

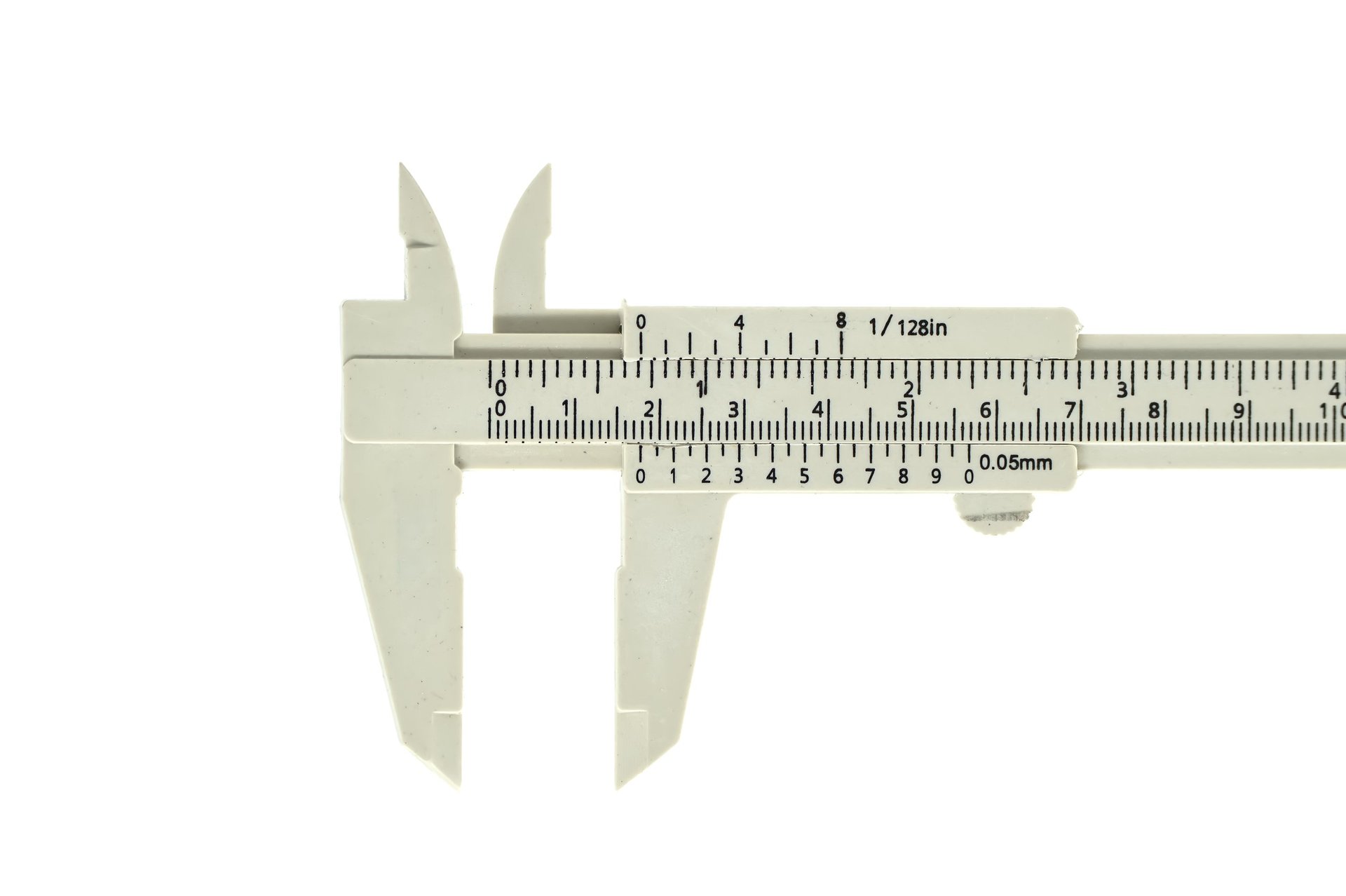

| Dimensional record | Measured outside diameter and wall against their tolerance bases | Measured record taken against a stated instrument | Before dispatch | A nominal size name stands in for a measurement with no limits attached. |
| Tolerance source | Which document supplies the permissible variation being applied per row | Citation of the standard, edition and clause in the accepted document | Before any crosswalk is used | Two rows are compared against different limits without anyone noticing. |
| Coupler specification | The coupler standard, revision and the size range the design depends on | Coupler specification checked against the presented diameter | Before order placement | The interface is assumed from matching nominal figures. |
| Finish documentation | The finish applied and, where coated, the coating standard that applies | Finish record naming the standard and method where a coating applies | Before dispatch | The presented diameter differs from the one the coupler range was checked against. |
| Design outputs | The dimensions and tolerances the scaffold design actually assumes | Design drawing or specification from the responsible engineer | Before quotation | The crosswalk is complete but answering a question the design never asked. |
Reading the trade name as a specification
A size designation such as 48.3 mm is treated as though it fixed the wall, tolerance and grade, when it fixes none of them.
Record the designation and the dimensions as separate fields so the name can never substitute for the numbers.
Assuming cross-standard equivalence from a shared OD
Two tubes with the same nominal diameter are treated as interchangeable even though each is governed by a different tolerance regime.
Require the standard, revision and tolerance source on every row before any comparison is marked comparable.
Letting a stock length answer a design cut
The available length is adopted as the required length, moving a cutting decision into the design without anyone making it.
Keep design cuts and stock lengths in separate fields with their bases stated.
Comparing values across unit systems
Metric and imperial figures are placed side by side and read as though they shared a unit.
State the unit on every dimension. The crosswalk flags a mismatch rather than converting silently.

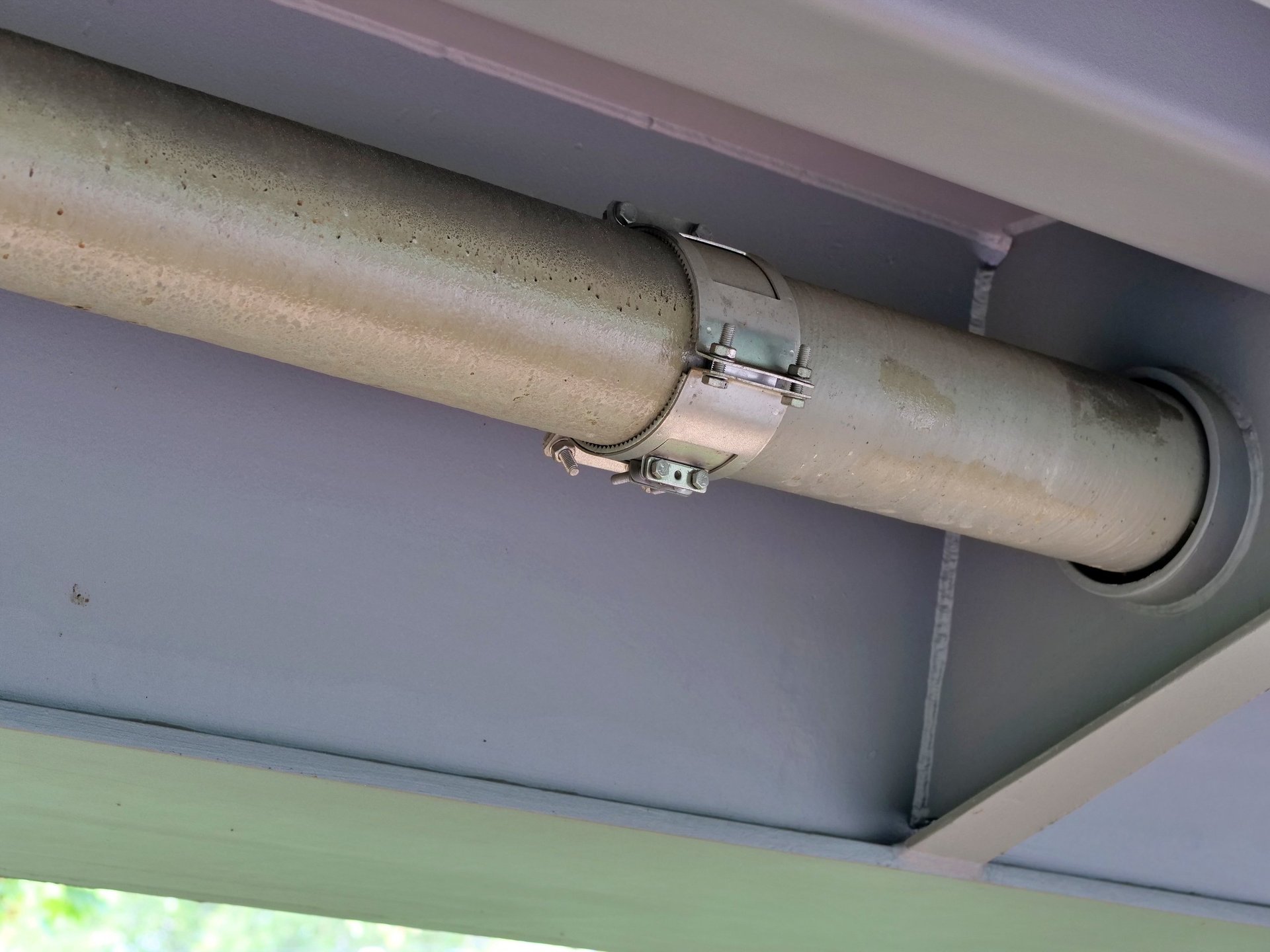

Checking the coupler against the bare diameter
The coupler range is verified against the uncoated figure when the tube arrives coated.
Record bare and presented diameters separately and confirm the coupler range against the presented one.
Reading the crosswalk as an engineering approval
A same-size result is taken as confirmation that the tubes are interchangeable in service.
Keep the crosswalk as a comparison aid and route adequacy questions to the responsible engineer.
When engineering review is required
A crosswalk answers a dimensional question about two size rows. It does not answer whether a coupler fits, whether a load class is met, or whether a tube is suitable for the access it will support. Those are engineering judgements belonging to the responsible engineer, and a size comparison — however well sourced — is not a substitute for them.
Product decision handoff
A size row establishes what the tube is dimensionally. It does not choose the tube form. The related page below carries that decision, with its own boundary stated.
Use where: Use where the coated tube form is the open decision and the requirement is to settle what the system is built from.
Boundary: The coated form does not settle the coupler family or the scaffold design — and a coating changes the presented diameter, which the interface check has to account for.
What this handoff cannot tell you
Neither the crosswalk nor the type route establishes load capacity, design adequacy or interface compatibility in service. Those come from the governing standard and the responsible engineer — the page states the input to supply rather than asserting a value it cannot evidence.
Related related tools and pages
Three listed destinations, grouped by what you would be trying to resolve. Take the one matching the question still open.
Compare against another member
GCC product × country routes
Each market page sets out the commercial route for a scaffolding pipe enquiry into that country — destination, importer, documents, Incoterm and delivery point kept explicit rather than assumed. Ports, charges, transit times and delivery dates are quotation dependent and are not published here.
United Arab Emirates
Saudi Arabia
Qatar
Kuwait
Bahrain
OmanDelivery inputs
Named place, site access, offloading position and the window the project needs. Each is a field on the enquiry rather than an assumption made at quotation.
Document set
The documents each market requires are stated on the enquiry with their issuers, so the scope is quoted rather than negotiated after order.
Incoterms 2020
The rule is quoted with its named place and port. The Incoterm defines delivery obligations — it does not by itself settle title, payment terms, duty or customs clearance.
Expert insight
Decision question
Can a common 48.3 mm trade size be treated as equivalent across every scaffold-tube standard?
Primary source
BSI Knowledge — BS EN 74-1:2022+A1:2025, Couplers for tubes
https://knowledge.bsigroup.com/products/couplers-spigot-pins-and-baseplates-for-use-in-falsework-and-scaffolds-couplers-for-tubes-requirements-and-test-procedures-1Scope, as published
BS EN 74-1:2022+A1:2025 is current for scaffold couplers, but cross-standard tube equivalence still requires the specific tube standard and tolerances.
Limitations
Buyer implication
Present equivalence as conditional and show the exact dimension and tolerance evidence behind each crosswalk row.
Evidence-led buyer advantages
Four concerns that come up on almost every size enquiry, and what actually resolves each one. No superiority claims — the resolution is a process, not a property of the steel.
A trade size mistaken for a specification
The designation and the dimensions are recorded in separate fields, and the crosswalk never lets the name stand in for the numbers.
A shortlist where each size is backed by dimensions rather than by a label.
Equivalence assumed from a shared nominal diameter
Every row carries its own standard, revision and tolerance source, and the crosswalk refuses a comparison while any is missing.
Rows treated as comparable only once the basis for comparing them actually exists.
A stocked length quietly answering a design cut
Design cuts and stock lengths are held in separate fields with their bases stated.
Cutting and waste decided at the design stage, where they belong.
An interface checked against the wrong diameter
Bare and presented diameters are recorded separately, with the coupler range confirmed against what it actually meets.
Couplers and tube that assemble as the design assumed, coating included.
Concern/Evidence or capability required/Procurement outcome
From enquiry to delivery
Each stage names the owner, the input it needs, the evidence it produces, the risk of skipping it and the next action. The early stages belong to the technical side of the review, not to the supplier.
Owner: Buyer / technical reviewer
Required input
The size name as it was given, recorded on its own.
Evidence / output
A designation that can no longer be mistaken for a specification.
Risk if missing
The trade name is carried through the enquiry and treated as the requirement.
Next action
Record the designation first, then the dimensions as separate entries.
Owner: Buyer / technical reviewer
Required input
The tube product standard and revision each row's dimensions came from.
Evidence / output
Every row with its own named source.
Risk if missing
Rows collected from different standards and silently treated as one set.
Next action
Cite the standard and edition on each row independently.
Owner: Buyer / technical reviewer
Required input
Outside diameter, wall and length with units, and each marked nominal or actual.
Evidence / output
A normalized set with units and basis preserved.
Risk if missing
A bare number compared across unit systems and read as a single quantity.
Next action
State the unit on every dimension field.
Owner: Buyer / engineer
Required input
The document and clause supplying the permissible variation for each dimension.
Evidence / output
Dimensions that carry defined acceptance limits.
Risk if missing
A crosswalk run against limits nobody has actually cited.
Next action
Attach the tolerance source before using any comparison.
Owner: Buyer / technical reviewer
Required input
The coupler standard and size range, against the diameter the tube presents.
Evidence / output
A verified interface rather than one inferred from matching names.
Risk if missing
Assembly stalls on site because the fit was read from a trade size.
Next action
Confirm the coupler range against the presented diameter, coating included.
Owner: Commercial department
Required input
Quantity with its unit basis, destination, and the Incoterm 2020 rule with its named place.
Evidence / output
A quotation request on a stated basis — price on request.
Risk if missing
A cost difference read as a commercial difference when the offers carry different obligations.
Next action
Hand the copyable crosswalk line to the Scaffolding Pipes enquiry form.
Buyer FAQ
The questions that come up once the buyer has established that a size name and a procurement dimension are two different things.
No. The size name identifies a designation, and nothing more. Two tubes can both be called 48.3 mm and differ in wall thickness, tolerance basis, grade and finish, because each is governed by its own product standard. Interchangeability in service depends on the scaffold design, the coupler interface and the exposure — none of which a shared trade name establishes.
Because equivalence across standards is an engineering judgement, not a chart output. What the crosswalk can honestly report is that two rows share a designation or a nominal diameter, and then state exactly what would still have to be established. Returning “equivalent” from a dimensional comparison would overstate what the data supports.
The standard. A dimension has no acceptance limits until a governing document supplies them, so a figure recorded before its standard is chosen cannot be compared against anything. Fixing the source first is what makes every dimension that follows meaningful.
It changes the diameter the coupler meets. A coating adds to the outside surface, so a tube's presented diameter is larger than its bare one. Where a coating applies, the coupler's size range has to be checked against the presented figure, and both diameters should be recorded separately so the check can be traced.
You can, but only after stating a unit on every value and converting explicitly with the factor recorded. The crosswalk will not convert on your behalf, because doing so silently would hide both the factor and the rounding rule from everyone reading the result afterwards. A bare number compared across unit systems is not a quantity.
Send the standard and revision you intend to work to, and mark the tolerance and length-basis fields as pending. That is more useful than an assumed figure, because the enquiry can be reviewed against the document you have actually chosen. Guessed tolerances are the one input that makes a size chart actively misleading rather than merely incomplete.
Qualified RFQ
An enquiry that arrives with each size tagged to its standard, units and tolerance source can be reviewed technically before it is quoted commercially. The crosswalk line you built above is carried into this form automatically — nothing you entered is discarded.
Contact the commercial department
Monday – Saturday: 8.00 AM – 6.00 PM · Sunday: Closed
Comparison inputs
A size designation becomes a comparison input only once five things are attached to it. The table below states each one as the question it answers and what goes wrong when it is missing.
| Attachment | The question it answers | If it is absent | RFQ field |
|---|---|---|---|
| Source standard + revision | Which document defines this size's dimensions, and on what basis? | The size name describes nothing in particular — two rows from different documents look identical. | Standard / revision field |
| Unit | What quantity is this number expressing? | Metric and imperial figures sit side by side and are read as though they shared a unit. | Unit field per dimension |
| Basis (nominal or actual) | Is this a designation or a measurement? | A measurement is averaged with a designation, or a designation is judged as though it carried limits. | Basis field per dimension |
| Tolerance source | Where do the permissible limits for this size come from? | The dimension has no defined acceptance limits, so the two rows cannot be compared against a common basis. | Tolerance source field |
| Length basis | Is this a stocked length or a design cut? | The available length is adopted as the required length, moving a cutting decision into the design. | Length basis field |
Why no conversion is performed for you
Unit conversion is a stated decision with a stated factor and a stated rounding rule. Performing it silently would hide both, and a converted figure that cannot be traced back to its origin is worse than an unconverted one that can. The crosswalk flags a mismatch and leaves the conversion — and the record of it — with you.
Worked example patterns
The worked examples are instances of three recurring patterns. Recognising the pattern is what lets you spot the same problem on an enquiry this page has never seen.
Reference pack
There is no downloadable size chart on this page, and deliberately so — a chart detached from its sources is exactly the artefact this resource warns against. What you can assemble is the record behind each row, and the list below is what that record contains.
The source standard and revision, per row
For each candidate tube as a product — the document every dimension on that row is read from.
The size designation
The trade or nominal name as given, recorded separately from the dimensions it does not define.
The tolerance source, with its clause
Where the permissible variation for outside diameter, wall and length is defined for that row.
The coupler standard and revision
The interface reference the outside diameter is checked against.
The dimensional record
Measured outside diameter and wall against their tolerance bases, taken with a stated instrument.
The finish record
Where a coating applies: the coating standard and method, and how the presented diameter differs.
The design outputs
The dimensions and tolerances the scaffold design actually assumes, from the responsible engineer.
The mill test certificate
The standard, edition and grade the tube was made and tested to, traceable to the supplied lot.
Send the standard and revision you intend to work to, and the commercial department will confirm what can be supplied against it, with the documents that evidence it. Price on request.
