Choose tube tolerances from the ordered product standard, edition, type, size and condition, then state the controlling dimension. Use the comparison below to check a measured value against your own absolute limits. It reports arithmetic and uncertainty-interval relationships; it does not invent a tolerance or certify the tube.
There is no universal tube tolerance across A513, A519, A213, A269, EN, DIN and JIS routes. A nominal ID calculated from OD and wall is not a guaranteed measured bore.
Comparison Tool
Compare one measured tube dimension with your entered limits
Enter absolute lower and upper dimensional limits from your approved source. Use one unit for all values. Enter the applicable expanded uncertainty; zero models a purely numerical comparison and does not mean the measurement is uncertainty-free.
No comparison prepared.
Comparison result
Enquiry Builder
Transfer the tolerance decision to an RFQ
Capture the decisions below, prepare a review summary and copy it to the tube RFQ. Copy the numerical comparison with its source and units. Obtain the actual standard limits and agreed decision rule before using a result for acceptance; include other required tube features and sampling.
Complete the specification to prepare a review summary.
Prepared specification
Copy the numerical comparison with its source and units. Obtain the actual standard limits and agreed decision rule before using a result for acceptance; include other required tube features and sampling. This page prepares the summary locally and does not send it anywhere; the destination RFQ owns contact collection and submission.
Method
Use absolute limits and a stated decision rule
For a nominal dimension N with signed lower and upper deviations, calculate L = N + lower deviation and H = N + upper deviation. Enter L and H, not the deviations. The comparison checks L ≤ measured value ≤ H. It also compares the entered interval measured value ± expanded uncertainty with those limits. It does not calculate uncertainty or choose a conformity decision rule.
What the tool does, and what it does not
It reports
- Whether the measured value lies between your two entered limits.
- The offset from the midpoint of the entered interval.
- Where the measured value ± expanded uncertainty sits relative to those limits.
It does not
- Supply a tolerance for any standard or size range.
- Calculate measurement uncertainty or convert between units.
- Choose a conformity decision rule or declare the tube conforming.
- Assess ovality, straightness, wall variation or lot conformity.
What to record alongside the reading
Record feature, unit, source edition, clause or drawing, size range, manufacturing condition, instrument, locations and sampling. Check ovality, straightness and wall variation separately where required. A single point result cannot establish whole-tube or lot conformity.
Worked Example
Worked example — arithmetic only
Assume a buyer-defined OD of 50.00 mm with illustrative deviations −0.10 mm and +0.15 mm. The absolute limits are 49.90 mm and 50.15 mm. A reading of 50.04 mm is numerically inside.
Reading inside

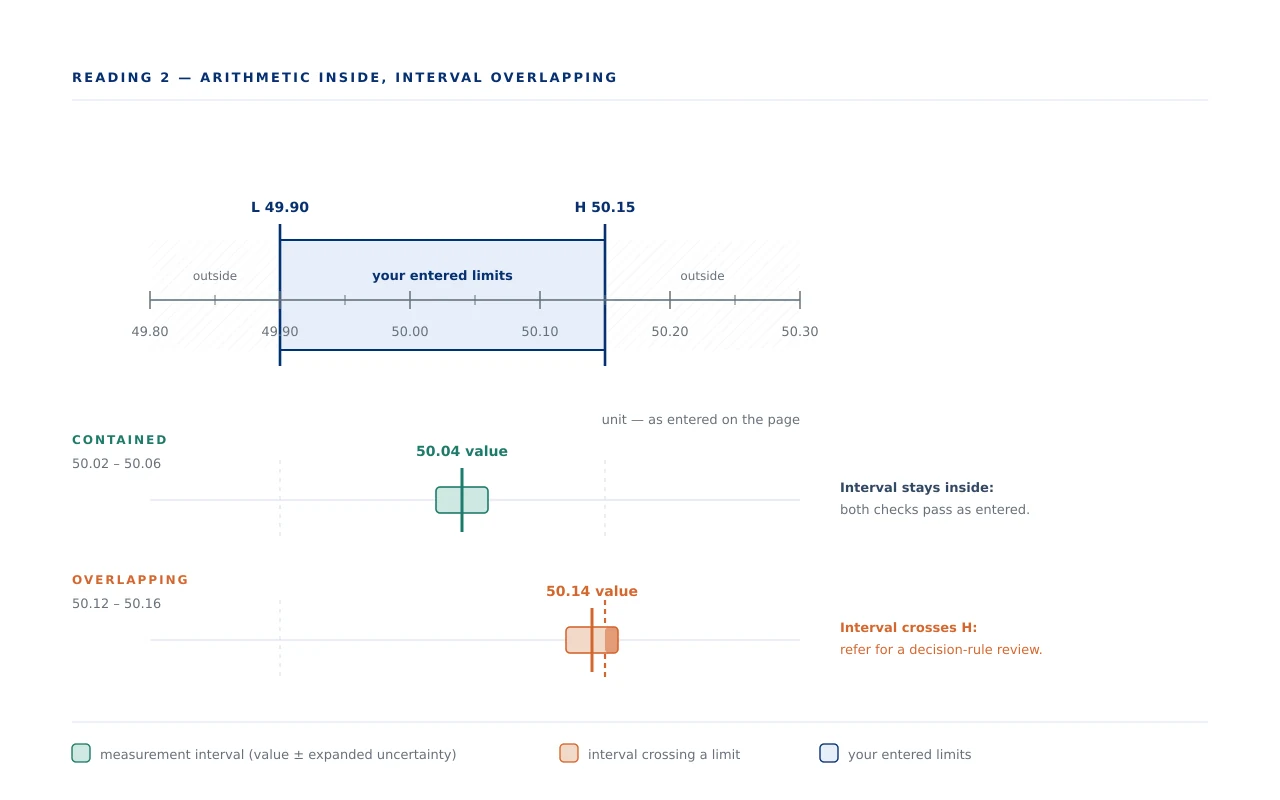

A reading of 50.04 mm is numerically inside the limits. With an entered expanded uncertainty of 0.02 mm, its interval is 50.02–50.06 mm and stays inside those limits.
Reading to refer
A reading of 50.14 mm with the same uncertainty gives 50.12–50.16 mm, which overlaps the upper limit. Refer it for the agreed decision-rule review.
These limits are invented. They are illustrative buyer-defined numbers and are not ASTM, DIN, EN or JIS tube tolerances. They must not be used as purchase limits.
Acceptance Basis
Put the acceptance basis on the order
There is no universal tube tolerance across A513, A519, A213, A269, EN, DIN and JIS routes. A nominal ID calculated from OD and wall is not a guaranteed measured bore.
| Specification decision | Applicability and limit | Evidence to request | RFQ action |
|---|---|---|---|
| Source applicability | The correct table depends on standard edition, product route and size. | Licensed ordered standard and approved drawing. | Record clause/table and applicable range. |
| Controlling dimensions | Simultaneous OD/ID/wall limits may require mill review. | Accepted dimensional schedule and measurement method. | Name which limits govern acceptance. |
| Measurement uncertainty | A reading near a limit needs an agreed conformity decision. | Uncertainty statement and agreed decision rule. | Identify inspection owner and decision basis. |
| Sampling and geometry | A single point does not prove all tube features. | Agreed positions, sampling and separate geometry checks. | List required OD, bore, wall, ovality and straightness controls as applicable. |
Document Package
Documents that support steel tube tolerance guide
Record instrument identity, method, positions and source limits with the reading. Resolve uncertainty and the acceptance rule before a borderline item is released. The calculator cannot assess a lot, select sampling or substitute for the ordered standard.
| Control | What to examine | When and limits | Next action |
|---|---|---|---|
| Source applicability | Licensed ordered standard and approved drawing. | Before material acceptance; confirm feasibility and cost at quotation. | Record clause/table and applicable range. |
| Controlling dimensions | Accepted dimensional schedule and measurement method. | Before material acceptance; confirm feasibility and cost at quotation. | Name which limits govern acceptance. |
| Measurement uncertainty | Uncertainty statement and agreed decision rule. | Before material acceptance; confirm feasibility and cost at quotation. | Identify inspection owner and decision basis. |
| Heat and item identity | Mill test certificate linked to heat markings and packing list. | Before release and again on receipt; a sample certificate is not evidence for the shipped heat. | Request traceability through cutting, bundling and delivery. |
A reading on its own is not an acceptance record. Without the instrument, the method, the positions and the source limits recorded beside it, a number cannot be reviewed later — and a sample certificate is not evidence for the shipped heat.
Route Decision
Decide whether this is the right tube route
Three bracket questions separate the routes before a limit is applied. Each one changes what the dimensional basis actually means.
| Decision | Why it matters here | Before you enquire |
|---|---|---|

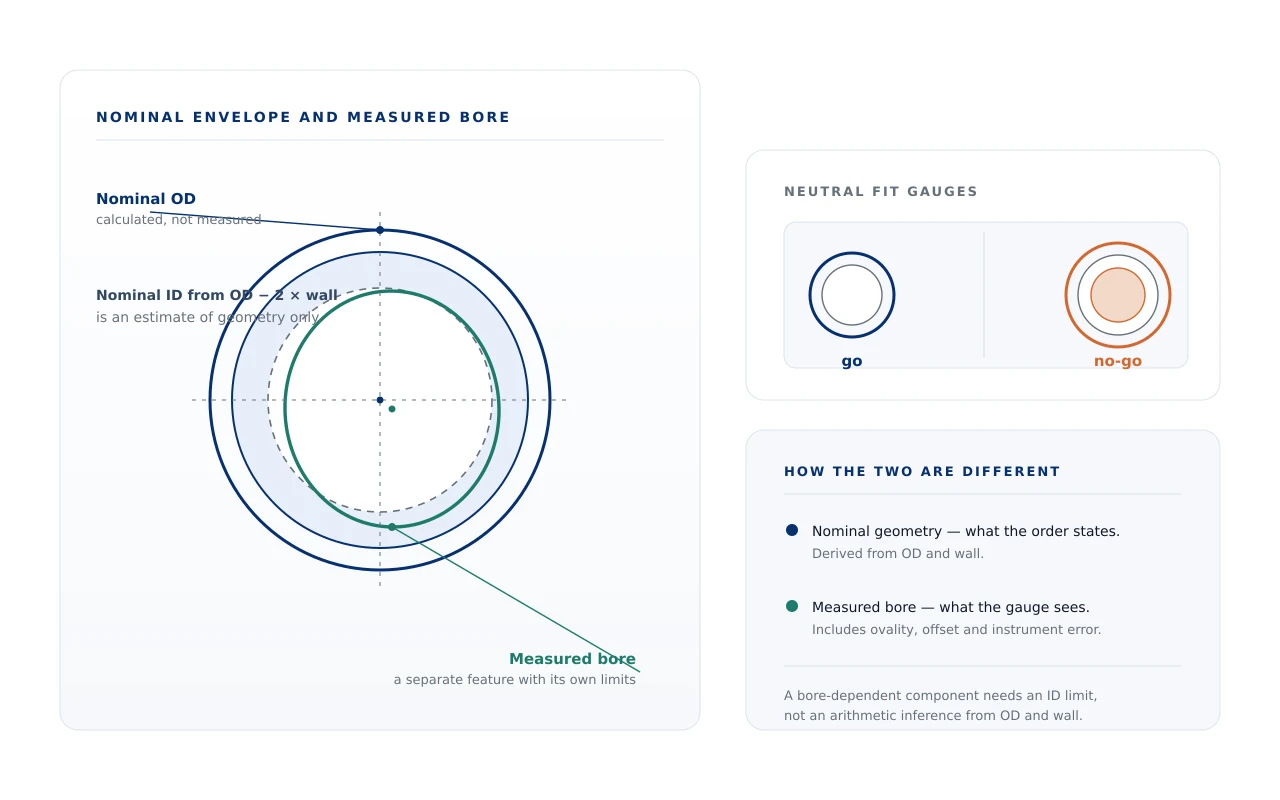

| OD and wall order | Derived nominal bore is an estimate of geometry. | Specify an actual ID requirement if the component depends on bore fit. |
| Minimum or average wall | The convention changes the acceptance basis. | State the ordered convention before applying any limit. |

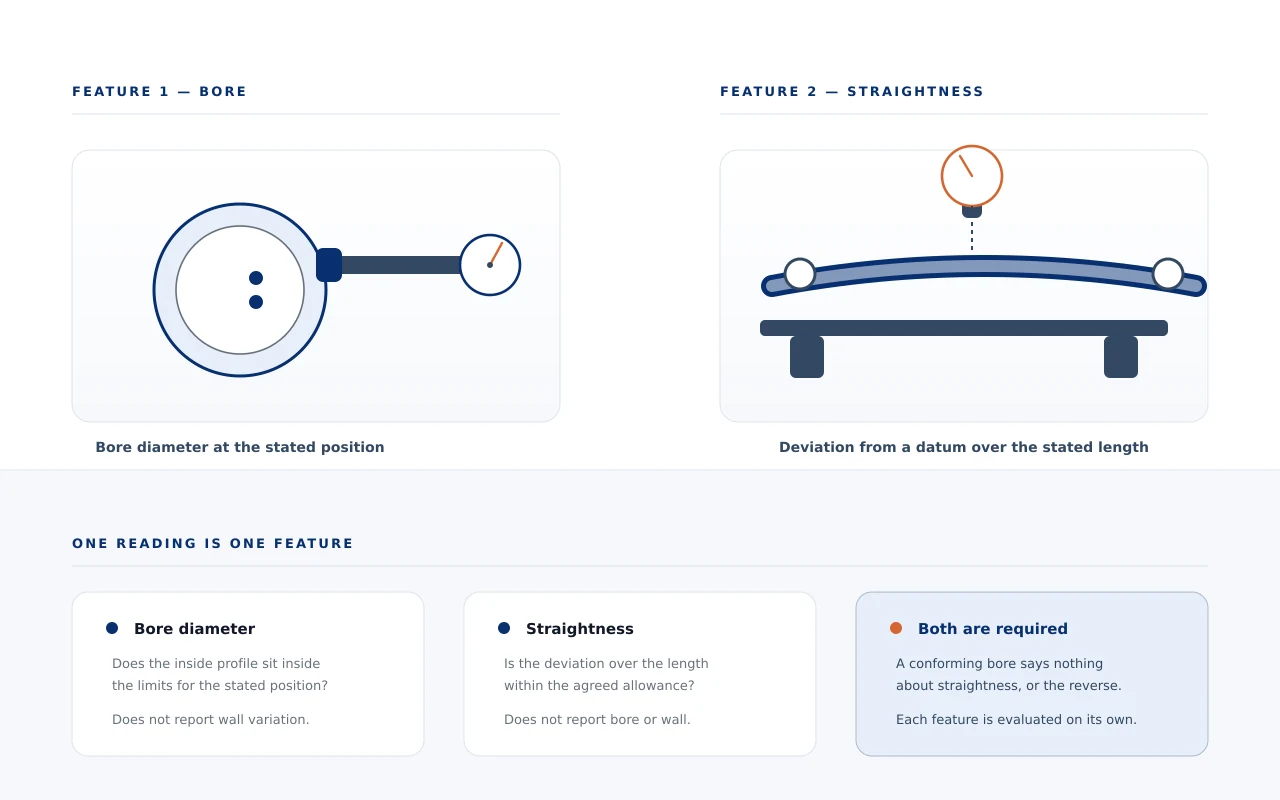

| Local measurement | One reading may not represent ovality, straightness or wall variation. | Use the agreed method, locations and sampling plan. |
