SD490: The Grade Is The Easy Part
SD490 is the higher grade in the Japanese reinforcing-bar family, and the question that decides everything else is not what it is but whether your design rules allow it here. Moving up a grade changes more than the strength: it tightens the bend and ductility behaviour the detailing has to respect, changes the anchorage and lap provisions that apply, and is a design revision rather than a purchasing preference. So specify it because the design calls for it and the governing rules permit it in that member — never because a higher grade seemed safer. In particular, do not treat SD490 as a straight substitute for SD390: the two are different grades with different detailing consequences, and the swap needs the designer's approval and a re-checked design.
What a higher grade changes
- Permission to use it in a member comes from the design rules, not the grade.
- Anchorage, lap and bend provisions follow the grade and need re-checking.
- SD490 is not a straight substitute for SD390.
Information current as of
Is It Allowed Here?
A higher grade is not a safer choice. It is a different set of design rules.
The instinct behind reaching for a higher grade is understandable — more strength sounds like more margin. It is not that simple. Permission to use a grade in a member comes from the governing design rules, and as the grade rises, the detailing provisions the rules attach to it tighten. The options below are grouped by the question each one answers, so permission is settled before the grade is ordered.
SD490 rebar
Higher gradeChoose it when
When the design genuinely calls for the higher grade and the governing rules permit it in the specific member — with the anchorage, lap and bend provisions re-checked rather than carried over.
Before you commit
Permitted use comes from the project's design rules, not from the grade. A higher grade is not automatically allowed where a lower one was, and the detailing consequences change with it.
SD390 rebar
Lower grade in the same familyChoose it when
Where the design calls for the lower grade and its detailing provisions close — often the straightforward answer where the higher grade brings no benefit the design needs.
Before you commit
Not a substitute in either direction. Moving between the grades changes detailing consequences and is a design revision requiring approval and a re-check.
Rebar for high rise buildings
Application contextChoose it when
Where the higher grade is being considered for cores, columns or other heavily loaded members and you need the application-specific decision alongside the grade.
Before you commit
The structural system and its design rules come from the project. A higher grade does not remove the need for the member-level permission check.
Open this routeReinforcement bar
Application contextChoose it when
Orient the grade decision against general concrete reinforcement requirements before comparing across standard families.
Before you commit
The application context is orientation, not acceptance. The controlling standard and the project's design rules still govern what may be supplied and where it may be used.
Open this routeWhat the grade does
It identifies which grade within the standard's own set is specified. That is a statement about the material, not about where it may be used.
What the design rules do
They determine whether that grade is permitted in your member, and what detailing provisions attach to using it — anchorage, laps, anchorage zones and bend limits.
Why the two are different questions
A grade can be perfectly available and perfectly conforming while still not being permitted in the member you have in mind. Availability answers supply; permission answers design.
The permission rule
Do not infer design suitability from the grade, and do not treat SD490 as a substitute for SD390. Confirm that the governing rules permit the grade in the specific member, that the anchorage, lap and bend provisions have been recalculated rather than carried across, and that the bends in your schedule are fabricable at this grade. A change of grade is a design revision — it belongs with the design authority, not with procurement.
SD490 Project-Acceptance Checklist
Settle permission first, then detailing, then evidence
This checklist is ordered by what actually decides the outcome. It requires the controlling edition, holds until the bar size is stated, and will not clear until you have recorded the project's permission to use the grade in the member and the re-checked detailing provisions. Entering the lower grade against this page returns a conflict, because the swap is a design change.
Permission & detailing inputs
Required fields marked *Use the edition the project specification requires.
Transcribe it exactly as the project specifies it.
The designation states no size — confirm from the detailing.
Record the design authority's position — the checklist will not clear without it.
Required test / document evidence
Nominal mass refers to the base bar and is either supplied by you or confirmed against the controlling standard and the supplied documents. This checklist does not estimate weight, does not certify a grade, and does not provide bend diameters or lap lengths.
Acceptance status
Add the controlling edition
The designation is recorded; the edition determines which grades exist in the standard, what each one requires, and whether the higher grade is carried at all. State the edition the project specification requires.
For the design authority to confirm
- The controlling standard and the edition your project is bound to.
- The project's permission to use this grade in the specific member or application.
- The re-checked anchorage, lap and bend provisions for the higher grade.
- The bar size and surface form the detailing requires.
- The test and inspection documentation required per consignment.
Boundaries of this checklist
- Do not infer design suitability from the grade. A higher grade is not automatically permitted in a member, and the stereotype that stronger is safer does not hold where detailing and ductility provisions tighten.
- SD490 is not a straight substitute for SD390. Different grades carry different detailing consequences, and a change of grade is a design revision requiring the designer's approval and a re-checked design.
- The designation is only meaningful with the edition that defines it — the grades a standard carries and what each specifies can differ between editions.
- Raising the grade changes anchorage, lap and bend provisions, so a detail that closed at the lower grade may need re-detailing rather than re-labelling.
- A general product declaration is not per-consignment evidence. What proves the delivered lot is separate from what the standard requires.
Nothing is transmitted yet, and this checklist does not approve a substitution or certify a grade. When permission and detailing are on record, send the summary to the commercial department for a confirmed quotation.
Grade, Edition & Detailing Consequences
What raising the grade changes, and who has to sign it off
A higher grade is not the same requirement with a bigger number. The tables below set out what the designation does and does not carry, and what the change of grade actually does to the detailing — because that is where the design revision lives.
What the requirement contains
Each element of the requirement, and who it belongs to
| Element | What it denotes | What it means for your enquiry | Owner / next action |
|---|---|---|---|
| The SD prefix | A steel bar for reinforcement within this standard's designation system. | Identifies the product family the rest of the symbol belongs to; it is not a strength statement on its own. | State the designation in full. |
| The grade number | The grade within the standard's own set — in this case the higher of the grades being compared. | A different number is a different requirement. It is not a portable strength value to match across standards. | Engineer states the grade. |
| The controlling edition | Not contained in the designation at all. | Defines which grades exist and what each one requires. It has to come from the project specification. | Engineer states the edition. |
| Permission to use it | Not contained in the designation at all. | The governing rules determine whether this grade is permitted in your member. Availability is not permission. | Design authority confirms. |
| Size & surface form | Not contained in the designation at all. | Physical attributes your detailing sets; the bend and dimensional provisions that apply follow from the size and grade. | Designer states size and form. |
This table explains how the requirement is composed. Confirm the exact grade set, the grade requirements and the edition against the current standard documents and your project specification — no numeric performance values are published here.
What a change of grade does
The detailing consequences that make this a design revision
| Provision | Why the grade affects it | What it means for your detailing | Owner / status |
|---|---|---|---|
| Anchorage & development | Calculated for the grade, bar size, concrete and confinement the design uses — the grade is one of those inputs. | Carrying the lower grade's provisions across is one of the ways a design quietly becomes invalid. Recalculate, do not relabel. | Designer — re-check on record. |
| Lap & splice lengths | Follow from the same inputs, and change when the grade changes even at the same bar size. | A lap that closed at the lower grade may not close here; splice locations and congestion may need revisiting. | Designer + detailer. |
| Minimum bend diameter | Set by the standard's bend requirements and the detailing rules, and becomes a tighter constraint as the grade rises. | Check the diameters in your bar schedule against what this grade and size permit, and that the bending yard can hold them. | Designer + fabricator. |
| Permitted use in the member | Determined by the governing design rules, not by the grade's availability or its strength figure. | A higher grade is not permitted wherever a lower one was. This is the first question, not the last. | Design authority — before fabrication. |
| Inspection & testing hold points | Set by the project's QA plan and the authority having jurisdiction, in addition to the standard's own requirements. | Agree what is witnessed, what is reviewed on paper, and what triggers a hold. | QA + buyer. |
No anchorage length, lap length or bend diameter is published on this page. Each is a function of your grade, bar size, concrete, confinement and governing rules, and belongs with your design authority and the current standard.
Bounded comparison
The adjacent routes worth opening before you commit
Each route answers a specific neighbouring question — the size the schedule calls for, and the bend guidance your fabricator will ask about. Neither is interchangeable with your requirement unless the design authority approves the change.
12 mm size route
Open reference10 mm size route
Open referenceBend diameter guidance
Open referenceMechanical properties
Open referenceComparison is bounded to the stated standard, grade and size basis. Do not substitute a designation, grade or size without an approved design change.

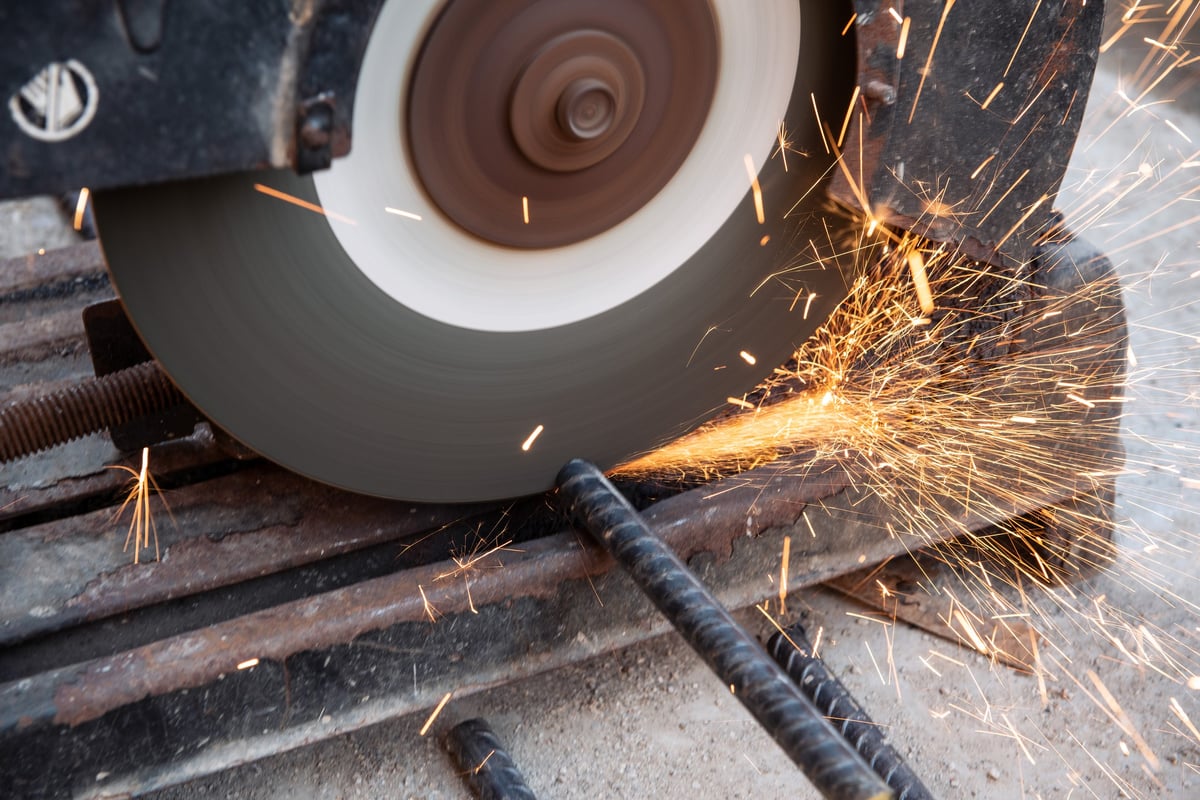

Fabrication consequences
A detail that closed at the lower grade is a fresh question at this one
Bending is the most tangible way a change of grade shows up. As the grade rises, the minimum bend diameter a bar can be taken to becomes a tighter constraint relative to its own diameter, so cranked bars, hooks and tight detailing that were routine at the lower grade have to be re-checked rather than copied. The same applies to cut lengths once the laps change. This is why the change of grade has to go back through the designer rather than being handled as a line-item swap: the fabrication drawing is downstream of a calculation that has just changed. The imagery here illustrates the fabrication step; it is not a statement about any specific bar's permissible bend.
Acceptance Evidence & Verification
What makes an SD490 offer defensible, and what you check on receipt
Because the design rests on the grade's behaviour rather than on a familiar strength figure, the evidence carries more weight here, not less. State an identical document set to every source so the offers you compare are comparable.
| Evidence / document | What it verifies | When it is required | Enquiry action |
|---|---|---|---|
| Mechanical results for the delivered lot | The measured performance of the material actually supplied, against the requirement the controlling edition sets for this grade. | Where the design relies on the grade's specified behaviour rather than on identification alone — the normal case at a higher grade. | Request results tied to the consignment. |
| Bend / rebend results | Bend acceptance of the lot at the diameters your schedule actually uses. | Where the detailing approaches the minimum bend diameter, which is the common case at a higher grade. | Request results at the scheduled diameters. |
| Chemistry information | The composition of the material where the project or the application requires it. | Where the specification, a coating system or a fabrication requirement depends on chemistry. | Request where applicable; not universal. |
| Bar marking & traceability records | The marking that ties a bundle to its documentation and to the requirement on the drawing. | For dimensional checks, schedule control and site traceability. | Confirm marking and traceability requirements. |
| Bundle weight, size & identification tags | Bundle weight, nominal size and the tags naming the consignment. | For schedule control, quantity verification and handling. | Confirm tag content and size identification. |
| Designer's re-check record | That permission for the member and the recalculated anchorage, lap and bend provisions are on record. | Where the governing rules constrain the grade or an authority requires the design basis on file. | Provide from the designer; not a supplier document. |
Requirement vs consignment
The standard and the designation state the requirement; the consignment documents state what was delivered. Both are needed, and neither replaces the other.
Issued against the delivery
Documentation is meaningful when it references the consignment actually received, not the product range in general.
Design side vs supply side
Permission and re-checked detailing are design records; mechanical and bend results are supply records. Keep them on separate sign-offs so neither is mistaken for the other.
Rebar bend diameter guide
Resolve the minimum bend diameter question, which tightens with the grade and decides whether your detailing can actually be fabricated.
Open technical referenceRebar chemical & mechanical properties
See how strength and ductility requirements are framed for a designated grade, and what your documentation must evidence.
Open technical referenceWhere A Higher Grade Gets Considered
The applications where the permission question decides the outcome
These are the settings where a higher grade is most often considered — heavily loaded high-rise members and dynamically loaded bridges — and they are also where the member-level permission and detailing checks matter most, because that is where congested detailing and continuity demand meet an already-tight layout.
Rebar for high rise buildings
Why the grade matters here
Cores, columns and transfer zones combine high demand with congested splice zones — the conditions where a higher grade is most tempting and where the permission and detailing checks matter most.
Fit limit
The structural system and its governing rules come from the design; a higher grade is not permitted in a member by default.
Open applicationBridge rebar
Why the grade matters here
Bridges add dynamic loading and heavy continuity demand, so the grade's ductility behaviour interacts with the detailing rather than sitting apart from it.
Fit limit
The bridge's governing specification and exposure class come from the project and are confirmed against it.
Open applicationApplication fit is confirmed against the controlling standard, the designated grade and the project's own design rules when the enquiry is quoted. No generic or unsupported suitability claims are made on this page.
GCC Markets & Destination Planning
Plan the destination, documents and delivery basis for an SD490 enquiry
For each GCC destination the specification, documents and commercial terms are aligned to your project basis at quotation. Because the controlling edition governs what conforms, aligning the enquiry baseline across sources is what makes the offers comparable.
United Arab Emirates
Design-approval and document review.
Add the delivery location, importer/customs inputs, Incoterm and document set before the SD490 enquiry is issued.
Saudi Arabia
Large project quantities and cross-border documentation.
Confirm the delivery location, importer inputs, Incoterm and documents so a higher-grade requirement is quoted on one consistent basis.
Qatar
Infrastructure technical-approval readiness.
Add the technical submittal and test document package the project requires for the specified grade.
Kuwait
Contractor and fabricator hand-off.
State the delivery location, Incoterm, documents and required date so the order can be planned against the specification basis.
Bahrain
Contractor procurement and industrial supply.
Provide destination, importer/customs inputs, Incoterm and documents before quotation of the SD490 rebar.
Oman
Port-oriented project supply planning.
Confirm the destination, required documents and Incoterm so the quotation basis is fixed for the specified designation.
Destination, documents, port or delivery line, Incoterm and the required delivery date are fixed at quotation from your specification. No served markets, local stock, local branches or delivery times are claimed in advance.
Commercial & Availability Inputs
What turns an SD490 requirement into a comparable offer
Availability, packing, documents, Incoterm and delivery are agreed from your full specification. Price is always on request — no live stock, lead-time or pricing claims are made before quotation.
| Quotation input | What it fixes | Status |
|---|---|---|
| Controlling standard & edition | Which edition the offer is made against — the baseline every source must quote to. | Required before quotation. |
| Grade designation | The grade as the project specifies it, assessed against the edition's own grade set. | Required before quotation. |
| Project permission | The design authority's position on using this grade in the member. | Required before the enquiry is issued. |
| Detailing provisions | The re-checked anchorage, lap and minimum bend diameters for this grade. | Required before fabrication. |
| Bar size & surface form | The nominal size and form the detailing requires — the designation states neither. | Required before quotation. |
| Quantity & unit | Total tonnes or bar count for the schedule. | Required for quotation. |
| Inspection & documents | The mechanical, bend, test and marking records required per consignment. | Fixed at quotation per the standard and service. |
| Availability (stock / mill) | Whether the enquiry is met from current availability or scheduled production. | Confirmed at quotation — never claimed in advance. |
| Incoterm & named place/port | The commercial and delivery basis for the consignment. | Fixed with the destination. |
| Required date | The delivery window the programme depends on. | Confirmed against availability. |
Price, stock, lead time, mill/origin and routing are quotation-dependent unless current verified evidence is present.
Commercial department
The commercial desk checks each SD490 enquiry for the controlling edition, the grade designation, the project's permission to use the grade in the member, bar size and surface form, the required document set and the delivery basis before quoting. Continue to the exporter route when packing, named place, Incoterm, export-document and shipment-planning fields are needed.
Steel rebar exporterOffice 3303, Churchill Executive Tower, Business Bay, Dubai, United Arab Emirates
Monday – Saturday: 8.00 AM – 6.00 PM · Sunday: Closed
Verifiable Outcomes
What each concern is checked against, and what you can rely on
Each risk on this page is mapped to the check that actually addresses it, then to a practical outcome. No superiority claims and no design-suitability claims are made.
| Buyer concern | Check on this page | Outcome you can rely on |
|---|---|---|
| Assuming a higher grade is permitted wherever a lower one was | The checklist makes project permission for the specific member a required step and will not clear without it. | The member-level permission question is answered by the design authority rather than assumed from the grade. |
| Substituting SD490 for SD390 without a redesign | Entering the lower grade against this page returns a conflict that sets out the detailing consequences of the change. | A grade swap is caught as a design change rather than processed as a purchasing preference. |
| Carrying lower-grade anchorage and lap provisions across | Re-checked anchorage, lap and bend provisions are collected as an explicit item tied to the permission step. | Detailing is recalculated for the grade rather than relabelled. |
| Scheduling bends the higher grade cannot take | The bend question is surfaced alongside the grade and linked to the dedicated bend-diameter reference. | Bendability is checked before bars are fabricated, not after. |
| Quoting against the wrong edition of the standard | The edition is a required field in its own right, and the checklist will not resolve without it. | Every source quotes against the same edition, making the offers comparable. |
| Accepting a general declaration in place of lot evidence | The evidence matrix separates the standard's requirements from the documents proving the delivered consignment. | Conformity is demonstrated on what actually arrived. |
From permission to delivery
- 1
Establish whether the grade is permitted
Confirm the governing design rules allow this grade for the specific member or application — the step that decides whether the rest matters.
- Owner:
- Design authority
- Input:
- Governing rules, member type
- Output:
- Permission on record
- Risk:
- Higher grade assumed safer
Next: Fix the edition and grade
- 2
Fix the controlling edition and grade
State the edition the project is bound to and the exact grade designation, since the edition defines what the grade requires.
- Owner:
- Engineer + buyer
- Input:
- Project specification
- Output:
- Edition and grade fixed
- Risk:
- Edition assumed from the bar mark
Next: Re-check the detailing provisions
- 3
Re-check anchorage, lap and bend provisions
Recalculate the detailing for the higher grade rather than carrying provisions across from the lower one.
- Owner:
- Designer + detailer
- Input:
- Grade, size, concrete
- Output:
- Re-checked detailing
- Risk:
- Provisions relabelled, not recalculated
Next: Confirm fabrication feasibility
- 4
Confirm fabrication feasibility
Check the minimum bend diameters in the schedule against what the grade and size permit, and that the bending yard can hold them.
- Owner:
- Designer + fabricator
- Input:
- Bar schedule, bend diameters
- Output:
- Fabricable detailing
- Risk:
- Bends that cannot be made at this grade
Next: Fix size and surface form
- 5
Fix the bar size and surface form
State the nominal size and form the detailing requires, since the designation states neither.
- Owner:
- Designer + detailer
- Input:
- Bar schedule, form
- Output:
- Physical requirements fixed
- Risk:
- Size mismatched at order
Next: Agree the per-consignment documents
- 6
Agree the per-consignment documents
State the mechanical, bend, test and marking documentation required against the delivered consignment, identically to every source.
- Owner:
- QA + buyer
- Input:
- Required documents
- Output:
- Evidence requirement fixed
- Risk:
- General declaration substituted for lot evidence
Next: Fix destination and delivery basis
- 7
Fix destination, Incoterm and date
Confirm the delivery location, Incoterm rule and required date so the enquiry is complete and comparable.
- Owner:
- Buyer + commercial
- Input:
- Destination, Incoterm, date
- Output:
- Qualified enquiry ready to issue
- Risk:
- Unstated documents or port
Next: Issue the qualified RFQ
Technical reference note
Which authoritative requirement most changes an SD490 decision
A source-backed note on the requirement this page is built around — stated with its source, its checked date and its limits.
The requirement that changes the decision
The fact that governs this page is that a grade designation is a reference into a standard, and permission to use that grade in a structure comes from somewhere else entirely. The designation identifies which grade is specified; the edition of the standard defines what that grade requires and what tests verify it. Neither of them says anything about whether the grade may be used in your member. That is a determination the governing design rules make, applied to the specific structure — and it is the first question, because everything downstream depends on the answer.
The second consequence is specific to moving up a grade. Anchorage, development, lap and bend provisions are calculated from inputs that include the grade, so raising the grade changes the answer to calculations the design already made. A detail that closed at the lower grade may not close here, and the minimum bend the fabrication drawing assumes may become unachievable. That is why a change of grade is a design revision rather than a substitution: the calculation has to be re-run and the detailing re-issued, not the bar mark relabelled.
Primary authority
Japanese Industrial Standards — JIS G 3112, Steel bars for concrete reinforcement — the standard that defines the SD designation system and its grades. Consult the current edition, or your project specification's citation of it, for the grade set and requirements in force.
Designation structure checked · confirm the edition in force and the grade set it carries before specifying
What this note does and does not cover
Covers: how the designation relates to its standard, why permission is a separate design question, and why raising the grade changes detailing calculations rather than only the bar mark.
Does not cover: your project's controlling edition, the design code governing your members, or any equivalence to another standard — each must be taken from the standard and the project directly.
Limit: a standards body's public information is a scope reference, not a substitute for the purchased standard. Nothing here certifies a grade, approves its use in a member, or supplies a bend diameter or lap length.
Practical consequence: establish permission for the member first, state the designation and edition together, re-check the detailing rather than carrying it across, and require consignment-specific documentation.
FAQ
What engineers ask before moving up to a higher grade
Written for the decision that has to go back through the design, not around it.
Can I use SD490 instead of SD390 to get more strength?
Not without the designer's approval, and not as a purchasing swap. Raising the grade changes more than the strength — the anchorage, lap and bend provisions that apply follow the grade, and the minimum bend diameter the detailing can use tightens. A detail that closed at the lower grade may need re-detailing rather than re-labelling. A change of grade is a design revision, so it has to go back through the design authority and be re-checked.
Does a higher grade automatically mean it is permitted in my member?
No. Permission to use a grade in a particular member comes from the governing design rules applied to that structure, not from the grade itself. A higher grade is not automatically allowed wherever a lower one was, and the assumption that stronger is always safer does not hold where detailing and ductility provisions tighten as the grade rises. That determination belongs to your design authority.
What does the designation tell me, and what does it not?
In this system the SD prefix identifies a steel bar for reinforcement and the number identifies the grade within the standard's own set. Together with the edition that defines it, the designation tells you which grade is being specified. It does not tell you the bar size, the surface form, whether the project permits the grade in your member, or anything about equivalence to another standard family's grades.
Why do anchorage and lap provisions need re-checking at the higher grade?
Because they are calculated for the grade, bar size, concrete and confinement the design actually uses, and the grade is one of those inputs. Carrying the lower grade's provisions across to the higher grade is one of the ways a design quietly becomes invalid. The re-check is what makes the change of grade legitimate rather than cosmetic.
What evidence should accompany an SD490 consignment?
Ask for the mechanical, bend and inspection documentation the controlling standard and your project require, tied to the specific consignment delivered rather than to the product range generally, together with bar marking and traceability that connects the material to those records. Where the detailing depends on the grade's behaviour, the relevant results should be checkable against the requirement rather than assumed from the designation.
Is SD490 equivalent to an ASTM or BS grade?
No, not by the naming. Each standard family defines its own designations, strength characteristics, ductility requirements and test regimes, and none of those transfer on a similar-looking number. If your project governs a different family, the reinforcement should be assessed against that family's own designations and design rules rather than cross-matched to this one.
Qualified RFQ
Request a quote for SD490 Rebar
Copy the RFQ summary you have built, then send it to the commercial department. The enquiry is ready for review once the controlling edition, the grade designation, the bar size, the project's permission for the member, quantity, destination and required evidence are complete.
Price, stock, origin and lead time remain quotation-dependent unless current verified evidence is present. This page does not approve the grade for your member or provide bend and lap values.
Office 3303, Churchill Executive Tower, Business Bay, Dubai, United Arab Emirates
Monday – Saturday: 8.00 AM – 6.00 PM · Sunday: Closed
Copyable RFQ summary
- Standard / edition
- To be confirmed
- Grade designation
- SD490
- Bar size
- To be confirmed
- Project permission
- Not stated
- Quantity
- To be confirmed
- Destination
- To be confirmed
- Nominal mass (kg/m)
- Confirm per standard / documents
Add any remaining open items — member permission, re-checked anchorage/lap provisions, minimum bend diameters, the edition, per-consignment documents, availability, price or lead time — as explicit fields before sending.
