Hot Dip Galvanized Scaffold Tube Supplier
Hot-dip galvanized scaffold tube needs two evidence tracks, not one. The tube is evidenced by its product standard and revision, grade and dimensions; the coating is evidenced by the galvanizing route that was actually used, the coating standard that governs that route, and the acceptance test applied. The coating route and its standard must be stated on the enquiry, because broad galvanizing standards can exclude automatically galvanized tube.
The tube and the coating are two different things, made to two different documents. What decides whether galvanized tube is right is the production route it gets, the coating standard that genuinely governs that route, and the test that accepts it.
Tube and coating evidenceSend these inputs before the coating can be evidenced
- Substrate standard & revisionThe tube product standard and the exact revision it is made and tested against.
- Grade / designationThe designation the tube standard uses, stated in full with its edition.
- OD, wall & lengthOutside diameter, wall and length, each with its own tolerance basis.
- Galvanizing processThe route the tube will actually get — automatic-line, batch hot-dip, or pre-galvanized.
- Coating standard & testThe standard that governs that route, and the acceptance test the project will apply.
- Service environmentThe exposure the coating has to withstand, and for how long.
- Repair & interfaceAny repair/renovation allowance, and the coupler range against the coated diameter.
Selection logic
When hot-dip galvanized scaffold tube fits — and when it does not
The tube and the coating are two different things, made to two different documents. Decide on the tube standard first, then set the coating requirement against the route that will actually produce it — hot-dip galvanized settles neither.
Fits when
- The tube product standard and revision are stated, and the coating standard is stated separately — two documents, not one.
- The galvanizing route is named, so the coating standard can be checked against the process that will actually produce the tube.
- The coating acceptance test is agreed, so the coating can be accepted or rejected on a stated basis rather than on appearance.
- The coupler's size range is confirmed against the coated diameter, since the coating adds to the surface the coupler grips.
Does not fit when
- ISO 1461 is cited for tube hot-dip galvanized in an automatic plant, which the 2022 scope expressly excludes.
- Hot-dip galvanized is treated as the whole specification, with no galvanizing route and no coating standard named.
- The coating is accepted on appearance, with no acceptance test or scope agreed before release.
- A tube mill certificate is offered as evidence of the coating, when it evidences only the steel.
Closest related alternatives
Standard route
BS 1139 scaffolding tube
Use where the project names a BS 1139 part and year, so the tube requirement follows a document you can cite directly.
Boundary: Identify the exact part and year — the series name is not by itself proof of steel-tube compliance.
Compare this routeGrade route
stk400 scaffolding tube supplier
Use where the strength designation is the fixed point the project works to, rather than a product standard.
Boundary: A grade label proves neither the product standard nor the coating standard.
Compare this routeSize route
48.3mm scaffolding tube
Use where the nominal outside diameter is already fixed by the coupler system in use.
Boundary: A nominal size establishes neither wall thickness nor the coated diameter the coupler meets.
Compare this routeMaterial route
galvanized steel scaffold tube supplier
Use where the galvanized material route is the fixed point and the coating requirement has to be resolved against it.
Boundary: A galvanized material label settles neither the coating method nor the acceptance test.
Compare this routeDecision tool
HDG Scaffold Tube Coating Evidence Builder
Turn a coating request into verifiable coating-method, inspection and document fields. The builder checks the coating standard you cite against the galvanizing route the tube will actually get, keeps unknown inputs visible rather than defaulted, and produces the two evidence tracks the order needs.
Required fields are marked *. Unknown is treated as unknown, never defaulted — revise any input without losing your other entries. The builder runs entirely in your browser; nothing is transmitted until you choose to send it.
Coating evidence result
Add the required specification fields to build the coating evidence set.
Missing: Substrate standard and revision, Grade / designation, Outside diameter and tolerance basis, Wall thickness and tolerance basis, Galvanizing process, Coating standard, Coating acceptance test, Repair / renovation allowance, Service environment, Documents, Quantity and unit basis. Enter them to build the coating evidence set — your other entries are kept.
Still needed: Substrate standard and revision, Grade / designation, Outside diameter and tolerance basis, Wall thickness and tolerance basis, Galvanizing process, Coating standard, Coating acceptance test, Repair / renovation allowance, Service environment, Documents, Quantity and unit basis
Scope warnings & assumptions
No scope warnings or cautions are recorded for this combination. The coating standard has been checked against the production route; no engineering approval is given here.
Method. The coating standard is tested against the galvanizing route you state, and the tube and coating are held as separate evidence tracks. Results are a qualification aid, not an engineering approval.
Required coating evidence
Ask for these on the quotation, so the coating is evidenced rather than asserted.
- Coating declaration naming the coating standard that governs the route used
- Coating method record naming the galvanizing process applied to the supplied material
- Result of the coating acceptance test at the agreed scope and stage
- Coating requirement stated separately from the tube product standard on the quotation
Inspection checkpoints
- Tube certificate checked against the stated product standard, revision and grade
- Dimensional record checked for OD, wall and length against their tolerance bases
- Coating declaration checked against the galvanizing route actually used
- Acceptance test result checked against the named test, scope and stage
Copyable RFQ summary
Product / entity: Hot Dip Galvanized Scaffolding Tube Substrate standard + revision: to confirm on RFQ Grade / designation: to confirm on RFQ Outside diameter + tolerance: to confirm on RFQ Wall thickness + tolerance: to confirm on RFQ Length + tolerance: to confirm on RFQ (state length and tolerance basis) Galvanizing process: to confirm on RFQ Coating standard: to confirm on RFQ Coating acceptance test: to confirm on RFQ Repair / renovation allowance: to confirm on RFQ Service environment: to confirm on RFQ Documents: to confirm on RFQ Quantity + unit basis: to confirm on RFQ Destination / named place: to confirm on RFQ Incoterm + version: Incoterms 2020 — named place to be stated by buyer Required date: to be stated by buyer Acceptance notes: Tube evidence and coating evidence are separate tracks. ISO 1461:2022 excludes tube and pipe hot-dip galvanized in automatic plants, so the coating standard is confirmed against the actual production route. No price, stock, lead time or corrosion life is asserted by this page.
This summary states requirements only. No stock position, price, lead time, coating life or approval is asserted.
Standards, grades & coating basis
The evidence that closes the specification
Each table names its source basis, the condition the value depends on, the buyer decision it changes and the RFQ field it lands in. Values that cannot be evidenced are replaced by the verification step required to resolve them.
Two evidence tracks, held apart
The tables below separate what the steel is from what the coating is, so neither document is used to prove the other. A mill certificate evidences the tube. It does not evidence the zinc coating, and a coating record does not evidence the tube.
- The tube standard and revision fix what the steel is made and tested against.
- The galvanizing route decides which coating standard and test apply.
- The coating adds to the surface, so the coupler meets the coated diameter.
- A grade label proves neither the product standard nor the coating standard.
Where a value cannot be evidenced it is replaced below by the verification step that would resolve it, rather than by an estimate.
Standard, revision and coating basis
| Input / option | Source basis / condition | Buyer decision implication | RFQ field / next action |
|---|---|---|---|
| Tube product standard | Governs the steel tube itself — material, dimensions and tolerances — cited with its revision. | Buyer cites the tube standard and revision. | Tube standard field |
| Coating standard | Governs the zinc coating, and must genuinely cover the galvanizing route used. | Buyer states the coating standard that applies to the route. | Coating standard field |
| Galvanizing route | Automatic-plant, batch hot-dip and pre-galvanized routes are governed differently. | Buyer states the route, or requires the supplier to state it. | Coating method field |
| ISO 1461:2022 scoping | The 2022 scope expressly excludes tube and pipe hot-dip galvanized in automatic plants. | Buyer confirms the coating standard covers the actual route. | Coating evidence request |
| Grade / designation | Identifies a strength basis within the tube standard; it proves neither standard nor coating. | Buyer states the designation in full with its edition. | Grade field |
| Standard and edition | Every value carries source, revision, units and condition — an unversioned reference is not a specification. | Buyer cites the governing document and revision. | Standard / revision field |
Dimensional input table
| Input / option | Source basis / condition | Buyer decision implication | RFQ field / next action |
|---|---|---|---|
| Outside diameter (uncoated) | Nominal OD is a label; the tolerance basis attached to it is what matters. | Buyer states nominal OD and its tolerance basis. | OD / tolerance field |
| Wall thickness | Wall drives mass, stiffness and load behaviour, and carries its own tolerance basis. | Buyer states wall and its tolerance basis. | Wall field |
| Length | Cut length with a stated length tolerance; stock and cut lengths are different statements. | Buyer states length and length tolerance basis. | Length field |
| Coated outside diameter | The coating adds to the outside surface, so the coupler meets the coated diameter, not the nominal one. | Buyer confirms the coupler's size range against the coated diameter. | Coupler compatibility field |
| End condition | Whether ends are plain, and how coating is handled at cut ends and any threading. | Buyer states the end condition required. | End condition field |
| Mass per unit length | Derived from OD, wall and a stated density — a calculation, not a standard value. | Buyer confirms the density basis or accepts the stated assumption. | Mass field with stated basis |
Service condition and coating table
| Input / option | Source basis / condition | Buyer decision implication | RFQ field / next action |
|---|---|---|---|
| Exposure environment | Marine, industrial or general atmospheric exposure changes what the coating has to withstand. | Buyer describes the exposure and the service period. | Environment field |
| Coating acceptance test | The test that accepts or rejects the coating follows from the route and the governing standard. | Buyer names the test and its acceptance basis. | Coating test field |
| Repair / renovation allowance | Where coating is damaged at cut ends, threads or handling, a repair provision has to be agreed. | Buyer states whether a repair allowance is required. | Repair field |

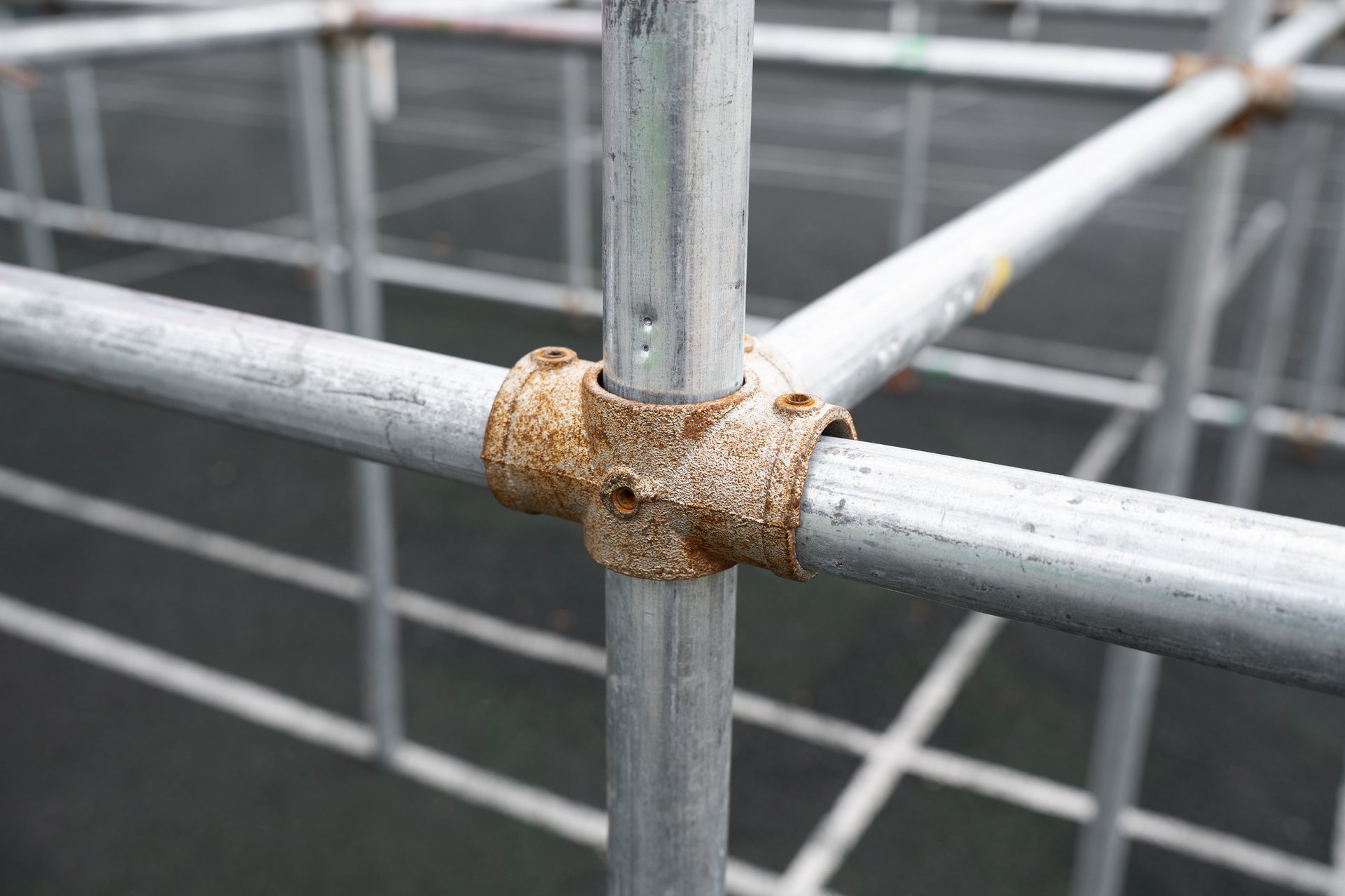

| Coupler interface | The coating adds to the contact surface, which can change the clamping fit on tight couplers. | Buyer checks the coupler size range against the coated diameter. | Compatibility check note |
| Handling and site damage | Coated tube is repaired less easily than bare tube; handling expectations belong on the enquiry. | Buyer states any handling or repair requirement. | Notes field |
| Service life expectation | No service life is asserted here — it follows from the coating system, the environment and the maintenance regime. | Buyer states the service life the project requires. | Verification requirement |
Compare across related tube pages
Test the current requirement against a bounded related page. Never present one as interchangeable with another unless the governing document for your order explicitly approves the alternative.
Evidence warning: product-specific compliance always requires evidence from the actually supplied tube and its coating. No chemistry, mechanical property, tolerance, coating thickness or mass, unit weight, load capacity or corrosion life is published here, because those depend on the governing standards, the route and the service conditions for your order. SI is the page-default display; the governing standard's native unit system is never mixed with inch-pound acceptance values.
Quality & documentation
Evidence gates before the tube is released
Separate the tube evidence from the coating evidence and from the commercial documents. Each row names what the buyer must specify, what it verifies, who accepts it, and the risk that follows if it is missing.
No certificate is implied by this page
Nothing here states that a particular certificate, inspection, test or approval exists for any consignment. Each row is a requirement to be requested and evidenced per order. Where a row names a supplier as the holder, it means the document is ordinarily issued on the supply side — not that it has been issued for your enquiry.
| Requested document / test | What the buyer must specify | What it verifies | Acceptance owner | Risk if missing |
|---|---|---|---|---|
| Mill test certificate | The tube product standard and revision, and the grade, that the certificate must state | Certificate naming the tube standard, revision and grade, traceable to the lot | Buyer / project | The certificate evidences the steel, not the coating, and can be mistaken for both. |
| Dimensional record | Outside diameter, wall and length, each with the tolerance basis | Measured record for OD, wall and length against the stated bases | Buyer / project | Coupler fit cannot be confirmed against a nominal size alone. |
| Coating standard declaration | The coating standard that governs the galvanizing route actually used | Declaration naming the coating standard and the route it governs | Buyer / project | A coating is accepted on a standard that does not cover the route. |
| Coating method record | The galvanizing route — automatic-plant, batch hot-dip or pre-galvanized | Record naming the method used for the supplied material | Buyer / project | The route is assumed, and the applicable standard is never checked against it. |
| Coating acceptance test | The test the project will apply to the coating, and its scope and stage | Result of the named test at the agreed scope and stage | Buyer, with the named body | The coating is accepted on appearance rather than measurement. |
| Independent inspection | Whether inspection is independent, and at what scope and stage | Named body, scope and stage, agreed before release | Buyer, with the named body | Inspection performed later than agreed, at a stage that cannot change the outcome. |
| Packing list and marking | The bundle, tagging and marking convention required | Packing list and marking that reconcile against the supplied lot | Commercial | The consignment cannot be reconciled against the documents on arrival. |
Application & industry paths
Where the operating condition changes the coating decision
Each path starts from the condition the tube works in, names the compatibility or coating risk it creates, and states the specification implication — so the route is used only where it genuinely changes what you specify.
Construction
scaffolding pipe for construction
- Operating condition:
- General access scaffolding on new-build sites, with repeated assembly, dismantling and re-use across phases.
- Risk:
- A coating specified without a standard or test basis cannot be judged as it wears through handling and re-erection.
- Specification implication:
- Fix the coating standard and acceptance test at enquiry, so wear is judged against a stated requirement rather than an impression.
Applies where: Applies where the construction operating pattern genuinely changes the coating decision — not merely because the site is a construction site.
Open the application routeOil & gas
scaffolding pipe for oil and gas
- Operating condition:
- Short, intensive shutdown windows in a controlled industrial atmosphere, with inspection and access constraints.
- Risk:
- Tube arriving without the agreed coating and tube documentation delays access work that has no slack in the schedule.
- Specification implication:
- Agree the coating declaration, the method record and the tube certificate before dispatch, because there is no time to resolve them on site.
Applies where: Applies where the shutdown's document and inspection regime changes what has to be evidenced.
Open the application routePetrochemical
scaffolding pipe for petrochemical
- Operating condition:
- Chemically exposed operating areas where the coating system may itself be constrained by the facility.
- Risk:
- A finish chosen without checking the facility's own constraints can be rejected on site, and a coating standard that excludes the production route leaves no acceptance basis at all.
- Specification implication:
- Confirm any coating restriction alongside the coating standard and route, so the acceptance basis and the facility constraint are settled together.
Applies where: Applies where the facility's constraints change which coating is acceptable.
Open the application routeGCC destination planning
Scaffolding pipe routes across the GCC
One card per Scaffolding Pipes market page. Each asks for the destination, the importer and document context, the trade term and the verification the route needs. No office, stock, clearance capability or delivery time is claimed anywhere on this page.
United Arab Emirates
scaffolding pipe supplier UAE
Domestic supply with Dubai-based coordination.
Name the delivery emirate or port, the coupler system in use and the coating standard required. Domestic routes are coordinated from the Dubai base against the agreed tube specification.
Plan the destination inputs
Saudi Arabia
scaffolding pipe supplier Saudi Arabia
Technical submittal and document scope led.
Agree the tube standard and revision, the coating standard and acceptance test, and the document set before release, naming the port or inland destination.
Plan the destination inputs
Qatar
scaffolding pipe supplier Qatar
Approval sequence and importer context.
Confirm the importer's document and classification context, the named port, and the approval sequence before the quotation is finalised.
Plan the destination inputs
Kuwait
scaffolding pipe supplier Kuwait
Project-based supply with defined delivery windows.
State the tube specification, coating standard and quantity basis, and tie the shipment to the named destination and required window.
Plan the destination inputs
Bahrain
scaffolding pipe supplier Bahrain
Industrial supply and re-export documentation.
Confirm the document set, the named place and the importer's requirements before dispatch, since industrial routes depend on accurate paperwork.
Plan the destination inputs
Oman
scaffolding pipe supplier Oman
Port-oriented supply with onward delivery planning.
State the port or inland delivery place and the Incoterm rule with its named place, and align the coating requirement with the exposure at the destination.
Plan the destination inputsCommercial inputs
What changes the offer
Every row below is an input that moves the quotation. Price, stock, origin, lead time, freight and delivery date all remain quotation-dependent — this section explains which buyer inputs change the offer rather than inventing live commercial data.
| Quotation input | Why it changes the offer | Buyer decision | RFQ field |
|---|---|---|---|
| Tube standard & revision | The governing document for the steel, not a series name | Buyer cites the tube standard and revision | Tube standard field |
| Grade / designation | Set independently of the coating requirement | Buyer states the designation in full | Grade field |
| OD, wall & tolerance basis | Drives mass, stiffness and coupler fit | Buyer names OD, wall and tolerance bases | Dimension field |
| Length & end condition | Cut length and end treatment change handling, packing and coating repair | Buyer states length, tolerance and end condition | Length field |
| Galvanizing route | Decides which coating standard and test apply | Buyer states the route or requires it to be declared | Coating method field |
| Coating standard | Must cover the route actually used | Buyer states the coating standard required | Coating standard field |
| Quantity & unit basis | Pieces, lengths or tonnes — the basis is stated with the figure | Buyer confirms the unit basis | Quantity field |
| Packing & bundle arrangement | Bundle weight and lifting points change the handling operation | Buyer confirms bundle weight and marking | Packing field |
| Named port or place | Routing and vessel schedule are quotation-dependent | Buyer names the port, terminal or inland place | Destination field |
| Incoterm 2020 rule | The rule and its named place are one term, not two | Buyer chooses the rule and named place | Incoterm field |
| Payment & documentary terms | Incoterms allocate delivery cost and risk, not payment | Buyer states instrument and timing separately | Payment field |
| Requested delivery window | Lead time is quotation-dependent and never asserted here | Buyer states the window required | Date field |
| Inspection & document scope | Destination and project requirements decide the paper set | Buyer lists each document and its issuer | Document matrix |
Incoterms note: the rule and its named place are one term, not two. An Incoterm allocates delivery cost and risk between the parties; it does not allocate payment terms, and it does not decide duty or clearance. State the rule with its named port or place, and keep payment terms in their own field.
Related alternatives & resources
Where this decision continues
Grouped by the role the destination plays in the current decision — a cross-product comparison and two verification resources. These are bounded alternatives, not a link directory, and none of them replaces the current product decision.
Expert insight
Does ISO 1461:2022 cover all hot-dip galvanized scaffolding tube?
A normative scope screening: compare the tube's galvanizing production route against the ISO 1461 public scope exclusions.
Hot-dip galvanized sounds like a single specification. It is a process family, and the tubes inside it are made by routes that are not interchangeable when it comes to which standard governs the coating.
Method. Compare the tube's galvanizing production route with the ISO 1461 public scope exclusions.
What the source establishes. The ISO 1461:2022 scope defines the articles the standard governs and, in doing so, expressly excludes tube and pipe hot-dip galvanized in automatic plants. That is a scoping statement, so it decides applicability before any coating value is considered.
What it does not establish. The complete coating requirements — the public abstract is not a substitute for the licensed standard. It also does not tell you that no standard applies to automatic-line tube; a different tube or coating standard may govern it. The point is that the applicable standard has to be established, not assumed.
The practical consequence is direct. If the tube in question is automatic-plant hot-dip galvanized, ISO 1461 cannot be cited for it — so an enquiry that names ISO 1461 as the coating standard has not established an acceptance basis at all. The quotation should state the coating standard and the method that genuinely apply to the supply route, together with the test evidence that supports them.
This is a scope question, not a quality judgement. It does not say one galvanizing route is better than another; it says the citation has to match the route before it means anything. Making the coating standard a mandatory RFQ field, rather than an assumed badge, is what keeps that check in the process.
Buyer implication. Make coating-standard applicability a mandatory RFQ field, not an assumed badge.
ISO — ISO 1461:2022, Hot dip galvanized coatings on fabricated iron and steel articles
- Authority
- International Organization for Standardization (ISO)
- Reference
- iso.org — ISO 1461:2022
- Scope
- ISO 1461:2022 excludes tube and pipe hot-dip galvanized in automatic plants, so a buyer must verify the actual process and the product-specific coating specification.
- Limitations
- The public abstract is not a substitute for the complete licensed standard. A different tube or coating standard may govern automatic-line galvanized tube.
- Information date
- 27 September 2026
Buyer advantages
What separating the two evidence tracks changes
Each row is a real failure mode from a galvanized scaffold tube purchase, mapped to the control that closes it and the procurement outcome that follows.
ISO 1461 assumed to cover the tube
Evidence: The page states the 2022 scope boundary outright and makes the galvanizing route a required input, so a standard that excludes the actual process is caught at enquiry rather than at inspection.
Outcome: Coating evidence matched to the route that was actually used.
One document offered as evidence of two things
Evidence: The tube evidence and the coating evidence are held as separate tracks, each with its own document and its own issuer.
Outcome: A mill certificate that is not mistaken for a coating record.
The galvanizing route left unstated
Evidence: The route is captured as its own field — automatic-line, batch hot-dip or pre-galvanized — because the applicable standard differs between them.
Outcome: A coating requirement that can be checked against the process that produced it.
The coating accepted on appearance
Evidence: The acceptance test and its scope are captured as fields, so the coating is measured against a stated requirement.
Outcome: A coating that can be accepted or rejected on a documented basis.
The coated diameter assumed to match the nominal one
Evidence: The coated outside diameter and the coupler's stated size range are brought together as an explicit check.
Outcome: Interface compatibility confirmed instead of discovered on assembly.
From enquiry to delivery
Route-aware workflow for a galvanized tube order
Seven stages. Each states the buyer input it needs, the role that owns it, the evidence it produces, the risk it closes and the next action. No timing is promised at any stage, and no named individual is invented.
- Stage 01
Enquiry
Owner: Buyer / procurement
- Buyer input
- Tube product standard and revision, grade, OD, wall and length with their tolerance bases.
- Evidence / output
- A tube specification complete enough to be quoted against.
- Risk it closes
- Suppliers quoting different tubes under a reference that looked specific.
- Next action
- State the tube standard, revision and dimensions before anything else.
- Stage 02
Coating definition
Owner: Buyer / technical reviewer
- Buyer input
- The galvanizing route, the coating standard that governs it, and the acceptance test to be applied.
- Evidence / output
- A coating requirement stated separately from the tube requirement, with its own standard.
- Risk it closes
- A coating standard assumed from the words hot-dip galvanized and found to exclude the actual route.
- Next action
- Separate the coating standard from the tube standard on the enquiry.
- Stage 03
Scope check
Owner: Technical reviewer
- Buyer input
- The coating standard cited against the galvanizing route the tube will actually get.
- Evidence / output
- A scope position that is confirmed rather than presumed.
- Risk it closes
- ISO 1461 cited for tube hot-dip galvanized in an automatic plant, outside its published scope.
- Next action
- Confirm the governing coating standard covers the production route.
- Stage 04
Interface and repair check
Owner: Technical reviewer / system supplier
- Buyer input
- The coated diameter against the coupler range, and any repair/renovation allowance for cut ends.
- Evidence / output
- An interface and repair position that is agreed before release.
- Risk it closes
- A coupler assumed to suit the nominal size, and damaged coating with no agreed repair provision.
- Next action
- Confirm the coupler size range and state any repair allowance.
- Stage 05
Commercial quotation
Owner: Commercial department
- Buyer input
- Incoterm 2020 rule with its named place, quantity basis, packing and destination.
- Evidence / output
- A quotation request on a stated basis — price on request.
- Risk it closes
- A cost difference read as a commercial difference when the offers carry different obligations.
- Next action
- Hand the qualified RFQ to the Scaffolding Pipes enquiry form.
- Stage 06
Packing and dispatch
Owner: Supplier / carrier
- Buyer input
- Bundle arrangement, lifting points, marking convention and load-out sequence.
- Evidence / output
- Packing and handling captured so coating damage risk can be managed.
- Risk it closes
- Coated tube bundled without a handling basis, then disputed on site.
- Next action
- Confirm packing and marking against the destination requirement.
- Stage 07
Delivery and document handoff
Owner: Buyer / importer
- Buyer input
- Confirmed named place, delivery window, and both the tube and coating documents.
- Evidence / output
- A two-track document handoff at the buyer's end, reconciled against the requirement.
- Risk it closes
- Coating evidence assumed to sit inside the tube certificate and found missing.
- Next action
- Confirm both document tracks with the importer before dispatch.
Buyer FAQ
Post-decision questions on galvanized scaffold tube
Procurement-specific answers for this product type. Definitions already settled above are not repeated here, and the visible answers match the FAQ schema exactly.
Does ISO 1461:2022 cover my hot-dip galvanized scaffold tube?
Not automatically, and for a lot of scaffold tube the answer is no. The ISO 1461:2022 scope expressly excludes tube and pipe hot-dip galvanized in automatic plants, which is how a large share of scaffold tube is coated. So the standard cannot be assumed from the words hot-dip galvanized. What settles it is the production route the tube actually gets, and the coating specification that governs that route.
Why do I need two evidence tracks rather than one?
Because the tube and the coating are two different things, made to two different documents. The tube is evidenced by its product standard, revision and grade, with a dimensional record. The coating is evidenced by the coating standard that governs the production route, the method used, and the acceptance test applied. A mill certificate for the steel says nothing about the zinc coating, and a coating record says nothing about whether the steel met the tube standard.
How do I find out which galvanizing route my tube will get?
Ask the supplier to state it on the quotation. The routes differ in what they can produce and in which coating specification governs them — automatic-plant (in-line) hot-dip, batch hot-dip, and pre-galvanized coil or strip are distinct processes, and the standard that applies is not the same for all of them. Make the route and the applicable coating standard a required field on the enquiry rather than an assumption.
What coating evidence should the quotation carry?
The coating standard that actually governs the production route, the method used, and the result of the acceptance test the project will apply to the coating — at an agreed scope and stage. Where independent inspection applies, name the body and the stage. Ask for these separately from the tube's mill certificate, because one document does not evidence the other.
Does the galvanized coating change the tube dimensions I order?
The coating adds to the outside surface, so the diameter the coupler grips is the coated diameter, not the nominal one. That matters on tolerance-tight couplers. Order the tube by its product standard and dimensions, and confirm the coupler's stated size range against the coated diameter the tube will present rather than the nominal size alone.
How do I compare two galvanized scaffold tube offers fairly?
Put them on one line item. State the tube product standard and revision, the grade, the outside diameter and wall with their tolerance bases, the length, the galvanizing route, the coating standard and acceptance test, the inspection and document scope, the quantity with its unit basis, the named destination and the Incoterm with its named place. Offers that differ on the galvanizing route or the coating standard are not price differences — they are different coatings.
Qualified RFQ
Send a reviewable galvanized tube RFQ
Your enquiry is ready for review when the tube standard and revision, grade, dimensions, galvanizing process, coating standard, acceptance test, document scope and quantity carry values. Copy the payload or complete the form — either way both evidence tracks travel with it.
Your RFQ payload
Built from the fields above. Copy it to your records, or send it and the brief is attached automatically.
Product / entity: Hot Dip Galvanized Scaffolding Tube Substrate standard + revision: to confirm on RFQ Grade / designation: to confirm on RFQ Outside diameter + tolerance: to confirm on RFQ Wall thickness + tolerance: to confirm on RFQ Length + tolerance: to confirm on RFQ (state length and tolerance basis) Galvanizing process: to confirm on RFQ Coating standard: to confirm on RFQ Coating acceptance test: to confirm on RFQ Repair / renovation allowance: to confirm on RFQ Service environment: to confirm on RFQ Documents: to confirm on RFQ Quantity + unit basis: to confirm on RFQ Destination / named place: to confirm on RFQ Incoterm + version: Incoterms 2020 — named place to be stated by buyer Required date: to be stated by buyer Acceptance notes: Tube evidence and coating evidence are separate tracks. ISO 1461:2022 excludes tube and pipe hot-dip galvanized in automatic plants, so the coating standard is confirmed against the actual production route. No price, stock, lead time or corrosion life is asserted by this page.
Send it to the Scaffolding Pipes team
The commercial department reviews a complete enquiry. No field is inferred on your behalf, and no price, stock position, lead time or coating outcome is stated by this page.
