Technical resource · Dimensional reference
Choose the channel series first, then the full designation. Use the verified reference entries to compare depth, width, thickness and nominal kg/m, estimate a theoretical quantity and carry the exact profile into an enquiry.
The compact chart is a dimensional reference, not stock, a full rolling catalogue or a load-capacity table. UPE, UPN and PFC are not interchangeable solely because their depths match.
Working technical tool
Select one of the verified reference entries. This is a compact reference set, not a catalogue of available stock. Unlisted sizes require a producer table; do not interpolate.
Mass per metre is read from the cited producer entry. Nothing is estimated from the name.
Choose a reference entry, positive length and whole number of pieces.
The selected designation, dimensions, length and piece quantity populate the enquiry fields below. Grade and service approval remain separate.
Reference output
No reference result yet. The estimate applies a tabulated nominal mass per metre to the length and piece count you enter — it is a planning quantity, not a shipment weight.
No allowance for tolerances, coating, cutting waste or packing. Not a capacity check and not a measured shipment mass.
Complete the channel enquiry after the lookup
The reference calculator supplies designation and geometry for listed entries. Add grade, tolerances, service and commercial details before preparing the combined RFQ summary.
Complete the specification to prepare a review summary.
0 of 14 required fields completed.
The calculated mass uses a nominal producer value. Confirm profile geometry, material grade, tolerances and design approval separately.
The specification you prepared is attached exactly as you entered it — designation, grade, standard edition, dimensions, quantity basis, destination and required documents. Unresolved items travel with it as open questions rather than being resolved on your behalf.
Price on request. A specification review is the first step — it is not a priced quotation, and no availability is confirmed at this stage.
Method, formula and data conditions

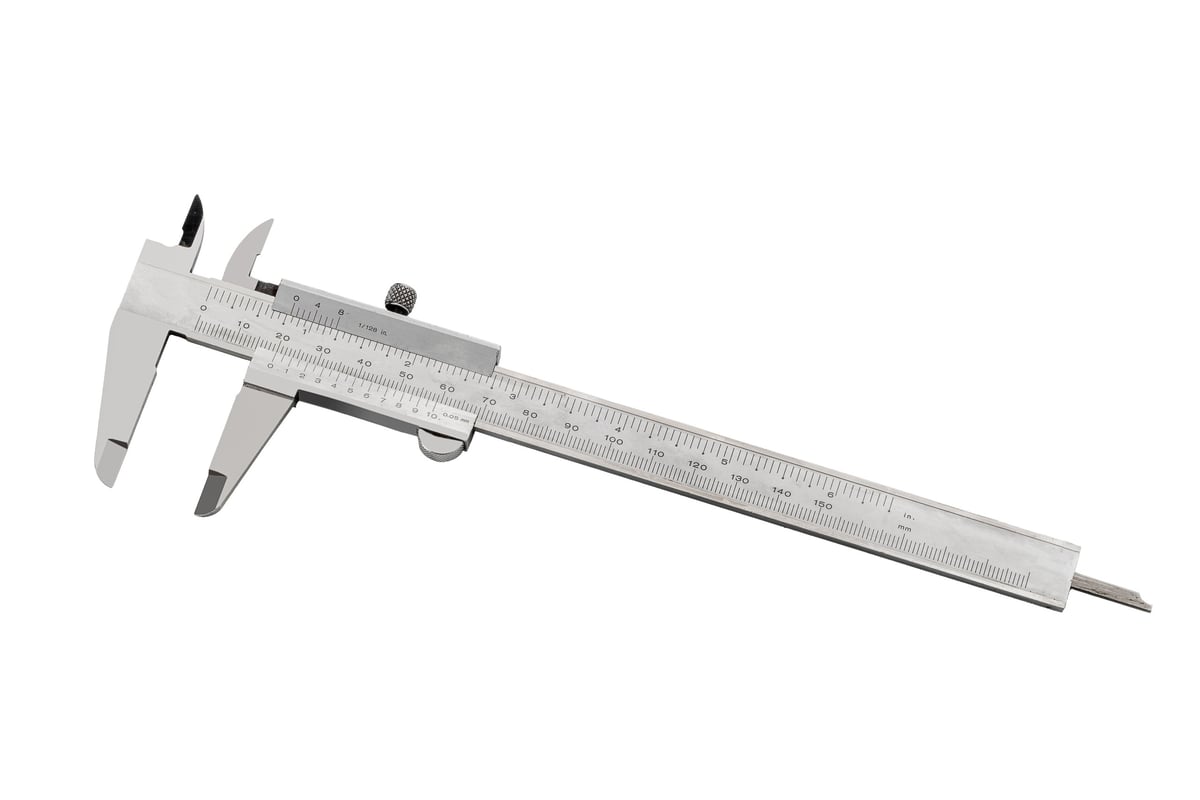

Read h, b, web thickness, flange thickness and mass per metre from the cited producer entry for the exact series. The formula is arithmetic; what the result means is a separate question.
Theoretical total mass (kg) = tabulated mass (kg/m) × piece length (m) × number of pieces. Every numeric field on this page carries its unit explicitly — metric throughout, and no value is converted silently.
mass (kg) = kg/m × m × pieces
Data checked . The source tables do not expose a separate revision date here.
These nominal values do not state availability or material compliance for any order.
Request a QuoteProcurement-grade worked comparisons
Each comparison shows the entry, the arithmetic and the decision it changes. The values are the producer entries tabulated on this page — none of them establishes stock, capacity or a material grade.
UPE 200 is listed at 22.8 kg/m with a 80 mm width; UPN 200 is 25.3 kg/m with a 75 mm width. The common 200 mm depth does not establish equivalent geometry. Check connection and design approval before changing series.
For ten UPE 200 pieces at 6 m each: 22.8 kg/m × 6 m × 10 = 1,368 kg. Use this as a planning quantity and confirm the producer table, commercial mass basis and delivered quantity.
The PFC 260x90x35 reference has a tabulated mass of 34.8 kg/m. Do not treat the rounded designation component as a measured mass, or silently replace its series.
A theoretical total is an arithmetic result, not a commercial quantity. Ask whether pricing and dispatch use theoretical mass, measured mass or pieces before you compare two offers for the same channel.
Verified reference entries
The values below are a compact producer reference checked on 2026-10-15. Source-specific radii and full section properties remain in the cited tables; the ordered material and tolerances require their own acceptance basis.
| Specification decision | Applicability and limit | Evidence to request | RFQ action |
|---|---|---|---|
| Series identity | Same depth does not mean the same channel. | Exact producer designation and section drawing. | Record series, h, b, web and flange dimensions. |
| Grade and tolerance | A geometry table does not certify the material or permissible deviations. | Material certificate and applicable dimensional standard. | Add full grade, condition and critical tolerances. |
| Quantity basis | Nominal kg/m gives theoretical mass only. | Producer table and agreed commercial measurement method. | State length, pieces and invoice/dispatch mass basis. |
| Designation | Depth h / width b (mm) | Web / flange (mm) | Nominal kg/m | Order implication |
|---|---|---|---|---|
| UPE 100 | 100 / 55 | 4.5 / 7.5 | 9.8 | Parallel-flange series; confirm the full producer drawing. |
| UPE 200 | 200 / 80 | 6.0 / 11.0 | 22.8 | Do not substitute by depth alone. |
| UPN 200 | 200 / 75 | 8.5 / 11.5 | 25.3 | Tapered-flange series; check connection fit. |
| UPN 300 | 300 / 100 | 10.0 / 16.0 | 46.2 | Retain the UPN designation. |
| PFC 260x90x35 | 260 / 90 | 8.0 / 14.0 | 34.8 | Use tabulated mass for estimates, not the rounded name. |
| PFC 300x90x41 | 300 / 90 | 9.0 / 15.5 | 41.4 | Confirm offered geometry and tolerances. |
Sources: ArcelorMittal Orange Book UPE node/253, UPN node/265 and PFC node/259, linked in the method section. These nominal values do not state availability or material compliance.
Documents and acceptance
Reject ambiguous series, mixed units and capacity claims drawn from mass alone. For a channel not listed here, request the producer's full geometry and mass entry before calculating.
| Control | What to examine | When and limits | Next action |
|---|---|---|---|
| Series identity | Exact producer designation and section drawing. | Before material acceptance; confirm feasibility and cost at quotation. | Record series, h, b, web and flange dimensions. |
| Grade and tolerance | Material certificate and applicable dimensional standard. | Before material acceptance; confirm feasibility and cost at quotation. | Add full grade, condition and critical tolerances. |
| Quantity basis | Producer table and agreed commercial measurement method. | Before material acceptance; confirm feasibility and cost at quotation. | State length, pieces and invoice/dispatch mass basis. |
| Heat and item identity | Mill test certificate linked to heat markings and packing list. | Before release and again on receipt; a sample certificate is not evidence for the shipped heat. | Request traceability through cutting, bundling and delivery. |
Illustration: Show the verification behind a reference lookup.
Original illustration produced for this page; not a Noor Deira facility, customer material or test result.
From reference to enquiry
The reference identifies a section. Which enquiry it belongs in depends on whether the designation resolved cleanly, needs another series checked, or needs an engineering decision first.
| Decision | Why it matters here | Before you enquire |
|---|---|---|
| Use the reference | The complete designation matches a listed producer entry. | Verify the offered mill table before ordering. |
| Verify another series | Only the nominal depth matches the drawing. | Compare width, web, flange and flange geometry. |
| Engineering review | A replacement is being selected for strength or stability. | Obtain a design check; dimensions and mass do not establish capacity. |

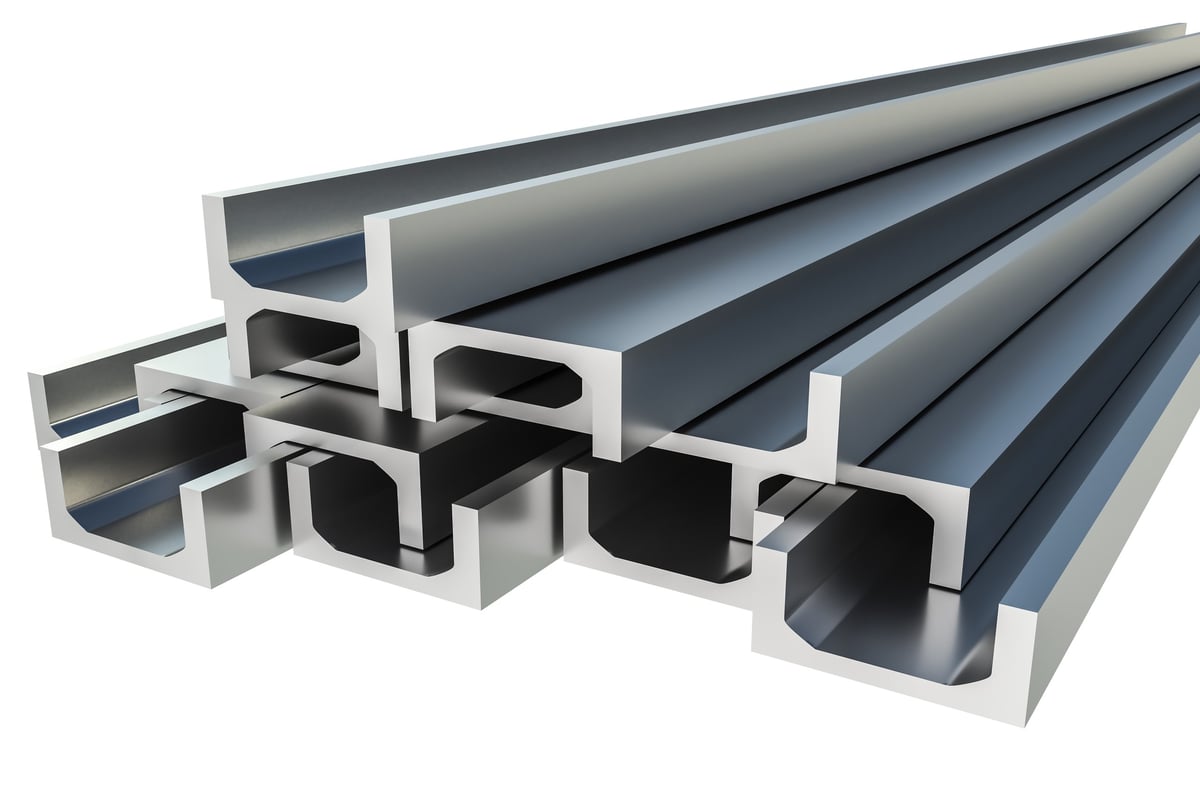

Illustration: Distinguish channel families visually without adding invented dimensions.
Original illustration produced for this page; not a Noor Deira facility, customer material or test result.
Where the channel is used
The chart identifies the section; the application design determines whether it is suitable. None of the links below approves a substitution — each one is where the connection and design questions belong.
Check the actual support and connection design before changing channel series.
structural steel for constructionReconcile profile geometry with equipment and access-support interfaces.
power plant structural steel supplierKeep member marks, grades and drawing revisions attached to the dimensional result.
structural steel for infrastructure

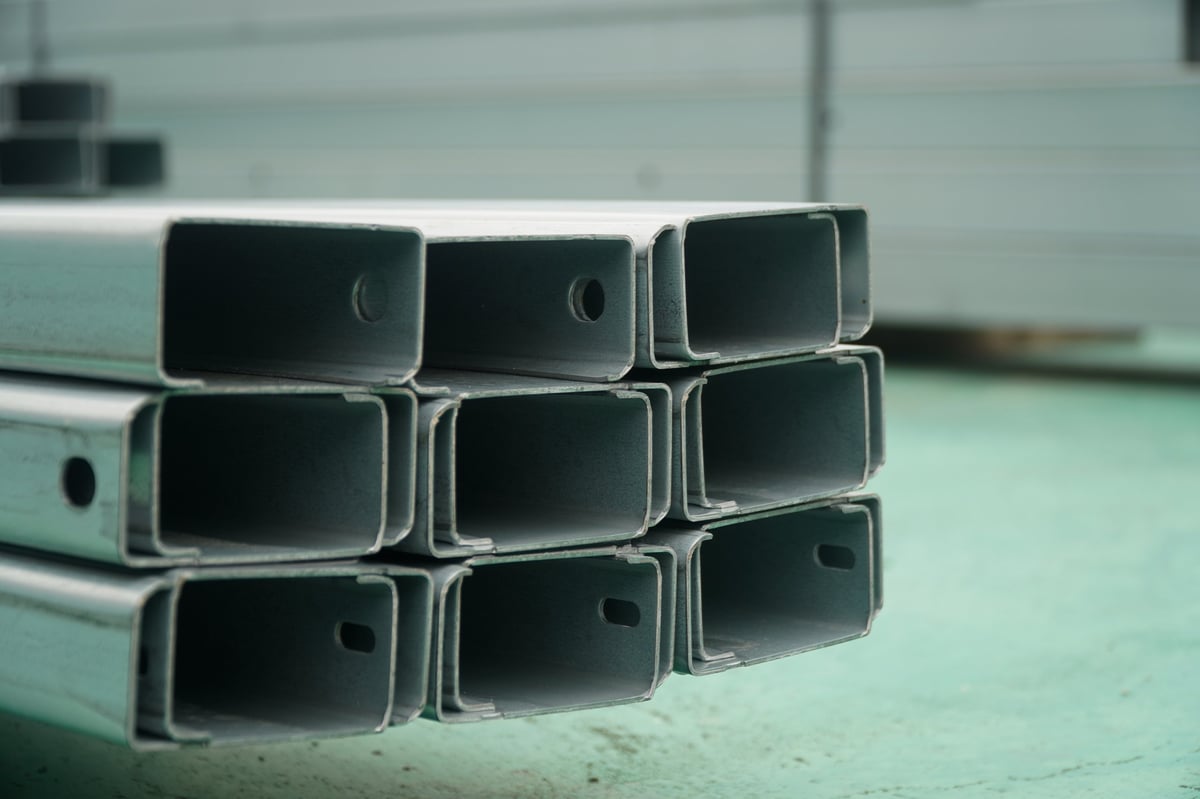

Illustration: Connect the dimensional result to connection fit.
Original illustration produced for this page; not a Noor Deira facility, customer material or test result.
GCC destinations
Confirm cut lengths, receiving access and document approval before requesting transport terms. Country flags identify the destination; quotation must confirm the supply route, origin and availability for this order.
Carry the exact channel series and designation into the destination request. Identify the emirate, fabricator or site address and unloading restrictions; distinguish a domestic handover from an import leg.
structural steel supplier
Carry the exact channel series and designation into the destination request. Name the consignee, importer and final site; ask who confirms product classification and border documentation before dispatch.
structural steel supplier
Carry the exact channel series and designation into the destination request. State the nominated receiving point and project document approver; align certificate review with the required arrival window.
structural steel supplier
Carry the exact channel series and designation into the destination request. Specify the actual port, border point or inland site requested; separate the entry leg from onward transport and unloading.
structural steel supplier
Carry the exact channel series and designation into the destination request. Identify the contractor or fabrication yard receiving the sections; agree import-document responsibility and the named delivery place.
structural steel supplier
Carry the exact channel series and designation into the destination request. Confirm whether the order is for local consumption or onward shipment; name the consignee and agree who handles each transport leg.
structural steel supplierQuantity and commercial basis
Use the calculated mass as an enquiry estimate. Ask whether pricing and dispatch use theoretical mass, measured mass or pieces, and separate cutting, coating and packing from the raw-section quantity.
None of these is established by a size chart, and none is confirmed by an automated estimate.
Coordinate an export enquiryAgree long-member handling and bundle identification for the exact channel series and cut lengths.
Related size resources
Use the size-chart pillar to find the correct geometry reference instead of applying a channel table to another form.
Check the distinction between nominal mass and agreed commercial quantity.
structural steel weight chartUse the I-section reference where the member is a beam rather than a channel.
ipe hea heb dimensions chartReconnect to the central size-chart framework and select the resource for the actual form.
steel size chartsExpert insight
The cited UPE and UPN producer entries show different widths, thicknesses and nominal masses at the same 200 mm depth. A depth-only substitution is therefore incomplete.
UPE 200
UPN 200
Buyer implication: Carry the full series and dimensions into the design and connection review before accepting a substitute.
Compare the exact UPE 200 and UPN 200 entries and preserve their units and series.
Dimensional comparison of the cited producer reference entries.
No capacity, stock, tolerance or cross-mill interchangeability is established by the comparison.
ArcelorMittal UPE section-property table · Information reviewed .
Evidence
Each of these makes competing offers easier to compare against the same acceptance requirement — and each one is a question the size chart alone cannot answer.
Evidence to request
Exact producer designation and section drawing.
RFQ action
Record series, h, b, web and flange dimensions.
This makes competing offers easier to compare against the same acceptance requirement.
Evidence to request
Material certificate and applicable dimensional standard.
RFQ action
Add full grade, condition and critical tolerances.
This makes competing offers easier to compare against the same acceptance requirement.
Evidence to request
Producer table and agreed commercial measurement method.
RFQ action
State length, pieces and invoice/dispatch mass basis.
This makes competing offers easier to compare against the same acceptance requirement.
Responsibility
Four stages stand between a dimensional lookup and accepted material. Each one has an owner, a required input and a failure mode — none of them is resolved by the chart.
| Stage and owner | Required input | Evidence or output | Risk and next action |
|---|---|---|---|
| Engineering release — Buyer's design authority | Confirm the drawing's channel series and exact designation. | Approved specification and drawing revision | Unapproved substitution can change the design basis. Close the item before proceeding. |
| Offer review — Buyer and quotation team | Compare the producer geometry, grade and commercial mass basis. | Written technical exceptions and commercial scope | An unlisted exception can survive into the purchase order. Close the item before proceeding. |
| Material release — Mill, inspector and buyer as agreed | Check material identity and agreed dimensional evidence. | Accepted documents linked to the order items | Missing heat identity can make an otherwise correct section unacceptable. Close the item before proceeding. |
| Receipt and reconciliation — Receiving team | Reconcile designation, length and pieces rather than relying only on total tonnes. | Delivery record, item count and discrepancy record | Record any mismatch before the material is incorporated into work. Close the item before proceeding. |
Buyer questions
The answers below restate what the reference entries on this page actually support — and where the limit of a dimensional table begins.
No. Give the series and full designation, then verify width, web, flange and geometry. At a nominal 200 mm depth the cited UPE and UPN entries differ in width, web thickness, flange thickness and nominal mass, so the depth alone does not fix which channel your drawing calls for.
Only after the designer checks the full geometry, connection and structural implications. UPN is a tapered-flange series and UPE is a parallel-flange series; they are not interchangeable on a like-for-like basis, and a substitution that looks reasonable on depth can change the connection detail.
No. Capacity depends on the design, grade, restraint, orientation and loading. A nominal mass per metre is an arithmetic property of the section, not a statement about how it performs. Adequacy for a given design is determined by your engineer against the governing code.
It is theoretical. Confirm the commercial measurement basis, tolerances, processing and delivered quantity. The estimate applies a tabulated nominal mass per metre to the length and piece count you enter, and allows nothing for permissible rolling deviations, coating, cutting waste or packing.
Use the offered producer's verified table. Do not interpolate an unlisted designation. The reference set on this page is a compact selection rather than a rolling catalogue, so an absent size is a prompt to obtain the producer entry, not to derive one.
No. The source is a dimensional reference; the actual grade, mill, availability and documents require quotation confirmation. A geometry table does not certify the material or the permissible dimensional deviations, and the grade cannot be inferred from the section designation.
