Is steel sheet gauge the same thickness for every material system?

No. Gauge is a convention, not a universal measurement, and the same gauge number denotes different thicknesses depending on which gauge table and material system it belongs to. Confirm which convention the requirement was written against before any number is converted, and state the resulting thickness explicitly in millimetres or inches on the order.

Why must the gauge convention be selected before conversion?

Because a gauge number carries no thickness on its own — the thickness only exists relative to a named table. Converting before the convention is declared produces a figure that cannot be checked against any source, and two suppliers reading the same gauge number from different conventions will quote incomparable material. Declare the system first, then convert.

Should a purchase order use gauge or explicit millimetre/inch thickness?

Use explicit thickness with its unit system, and retain gauge only as a reference input. A purchase order needs a value that can be measured and an acceptance basis that can be tested; a bare gauge number gives neither. Where the requirement originated as a gauge, state the gauge and the convention alongside the converted thickness so the chain of reasoning stays visible.

How do thickness tolerances relate to the converted nominal value?

The converted figure is a nominal thickness. It becomes an acceptance criterion only when a tolerance basis is attached, and that basis depends on the product form, the ordered thickness, width and length, the material specification and the unit system. Never treat the converted value alone as a pass/fail limit; state the tolerance requirement explicitly and verify it against the governing document.

Technical Resource

Steel Sheet Gauge Chart

Never convert a gauge number until the gauge convention and material system are declared. The RFQ output should state explicit thickness in millimetres and/or inches plus the applicable tolerance basis, with gauge retained only as a reference input.

Request a Quote Convert a gauge number

The converter stays locked until you declare a gauge convention — no stock, price or lead time is supplied.

What this page does — and where it stops

Locks the system before converting: No thickness is produced until a gauge convention and material system are declared, because a gauge number carries no thickness on its own.
Outputs explicit thickness: The result is stated in millimetres and inches with its unit system named, so gauge stays a reference input rather than becoming the specification.
Does not carry gauge tables: No gauge table is reproduced or invented here. The page states which condition must be declared before any conversion is trustworthy.

Decision implication: a gauge number on its own is not a specification, and a conversion made without a declared system cannot be checked against any source. Next action: declare the convention and material system, then convert.

GCC Product × Country Routes

A converted thickness, by GCC destination

The converted nominal thickness does not change by destination. The delivery basis, the documentation set and the customs evidence chain do. Each route below collects the inputs specific to that destination.

United Arab Emiratessteel sheet supplier UAEThe UAE route carries the widest spread of delivery locations of the six — Jebel Ali, Khalifa Port, Sharjah and the inland free zones each change the last-mile assumption that sits underneath a converted specification.

Specification inputs: Declared gauge convention, nominal thickness in mm and/or inches, unit system, tolerance basis, grade or standard, coating state and quantity.
Importer responsibility: Importer of record, the exact inland delivery point, offloading capability and any free-zone or re-export treatment.
Documents to verify: Mill test certificate, packing list, commercial invoice, certificate of origin and any destination-specific conformity evidence.
Delivery and logistics: The Incoterm must name the exact discharge or delivery point; a free-zone movement changes the customs evidence chain.

RFQ consequence: An ambiguous delivery point is the most common reason a delivered comparison cannot be closed once the gauge has been converted.

Saudi Arabiasteel sheet supplier Saudi ArabiaSaudi Arabia applies its own conformity assessment route for imported steel products, so the evidence set — not the converted thickness — is what most often decides whether a shipment can clear.

Specification inputs: Governing standard and designation, explicit nominal thickness with unit system, tolerance basis and coating class where specified.
Importer responsibility: Confirming which conformity route applies to the product and end use, and holding the resulting evidence.
Documents to verify: Mill test certificate plus the destination conformity evidence set; both must be verified per shipment.
Delivery and logistics: Confirm the port of entry and whether inland transport is inside the quoted basis or a separate line.

RFQ consequence: An unverified conformity route delays clearance regardless of how precisely the gauge was converted.

Qatarsteel sheet supplier QatarQatar's project-driven demand means the documentation set is usually tied to a named project specification, so the thickness basis on the certificate must reconcile with the basis on the order.

Specification inputs: Project specification reference where one governs, explicit thickness with unit system, tolerance basis and coating state.
Importer responsibility: Confirming which project specification governs and reconciling it against the order documents.
Documents to verify: Mill test certificate, certificate of origin and the project-specific documentation the buyer's specification requires.
Delivery and logistics: Confirm the port and whether the receiving site imposes handling or delivery-window constraints.

RFQ consequence: A converted value that does not reconcile with the certificate basis forces a rework of the order documents.

Kuwaitsteel sheet supplier KuwaitKuwait's clearance route depends on an accurate declared value and origin, both of which sit underneath the material price rather than inside it.

Specification inputs: Explicit nominal thickness with unit system, tolerance basis, grade or standard and quantity with its weight basis.
Importer responsibility: Importer of record, accurate declared value and origin, and any customs-verification inputs.
Documents to verify: Commercial invoice, packing list, certificate of origin and mill test certificate.
Delivery and logistics: Confirm the delivery point and whether inland transport is inside the quoted Incoterm.

RFQ consequence: An unverified customs input changes the landed comparison even when the converted thickness is correct.

Bahrainsteel sheet supplier BahrainBahrain is typically served overland or by short sea from the UAE, so consolidation and transfer points matter more than the sailing time.

Specification inputs: Explicit thickness with unit system, tolerance basis, coating state and quantity with its weight basis.
Importer responsibility: Confirming the receiving site, offloading capability and whether a transfer point sits inside the delivery basis.
Documents to verify: Mill test certificate, packing list, commercial invoice and certificate of origin.
Delivery and logistics: Confirm whether an overland leg is inside the delivery basis and who carries the transfer risk.

RFQ consequence: A delivery basis that silently excludes a transfer leg makes the landed comparison misleading.

Omansteel sheet supplier OmanOman's delivery variability is driven by whether the receiving site sits near Sohar and Salalah or inland, which changes the inland leg rather than the material.

Specification inputs: Explicit nominal thickness with unit system, tolerance basis, grade or standard and quantity.
Importer responsibility: Confirming the receiving site, the inland transport basis and the offloading arrangement.
Documents to verify: Mill test certificate, certificate of origin, packing list and commercial invoice.
Delivery and logistics: Confirm which port and whether the inland leg is inside the quoted basis.

RFQ consequence: An inland leg left outside the basis is the most common source of a re-quoted comparison.

Decision implication — the converted thickness travels unchanged across all six destinations, so a difference between two quotations is never the material; it is the delivery basis, the evidence set or the customs input. Next action: fix the destination inputs for your route before comparing a converted figure commercially.

What does not change by destination

The declared gauge convention and the conversion it produced
The nominal thickness and the unit system it is stated in
The governing standard and the material system

What does change by destination

The conformity evidence set the destination requires
The customs inputs, declared value and origin treatment
The delivery point and whether an inland leg sits inside the basis

Expert Insight

Can a gauge number be converted to one universal thickness?

No — and the reason is structural rather than a matter of picking the right table.

Method

Use ASTM A568/A568M-25a as the controlled dimensional framework for the order, and treat gauge as an external convention that only becomes usable once the buyer declares which gauge table and material system it belongs to. Convert only after that declaration, and show millimetres and inches as the procurement output.

Scope

Dimensional requirements for covered carbon, structural and HSLA sheet — useful as the order-control reference once a gauge conversion has been made.

Limitations

Gauge is not a single universal thickness scale. The same gauge number denotes different thicknesses in different conventions and material systems.
A conversion is only as reliable as the table it came from. This page does not reproduce or invent gauge tables.
The converted value is a nominal thickness, not an acceptance limit. It only becomes an acceptance criterion once a tolerance basis is attached.
Where a product specification and a general requirement differ, the specification named on the order governs.

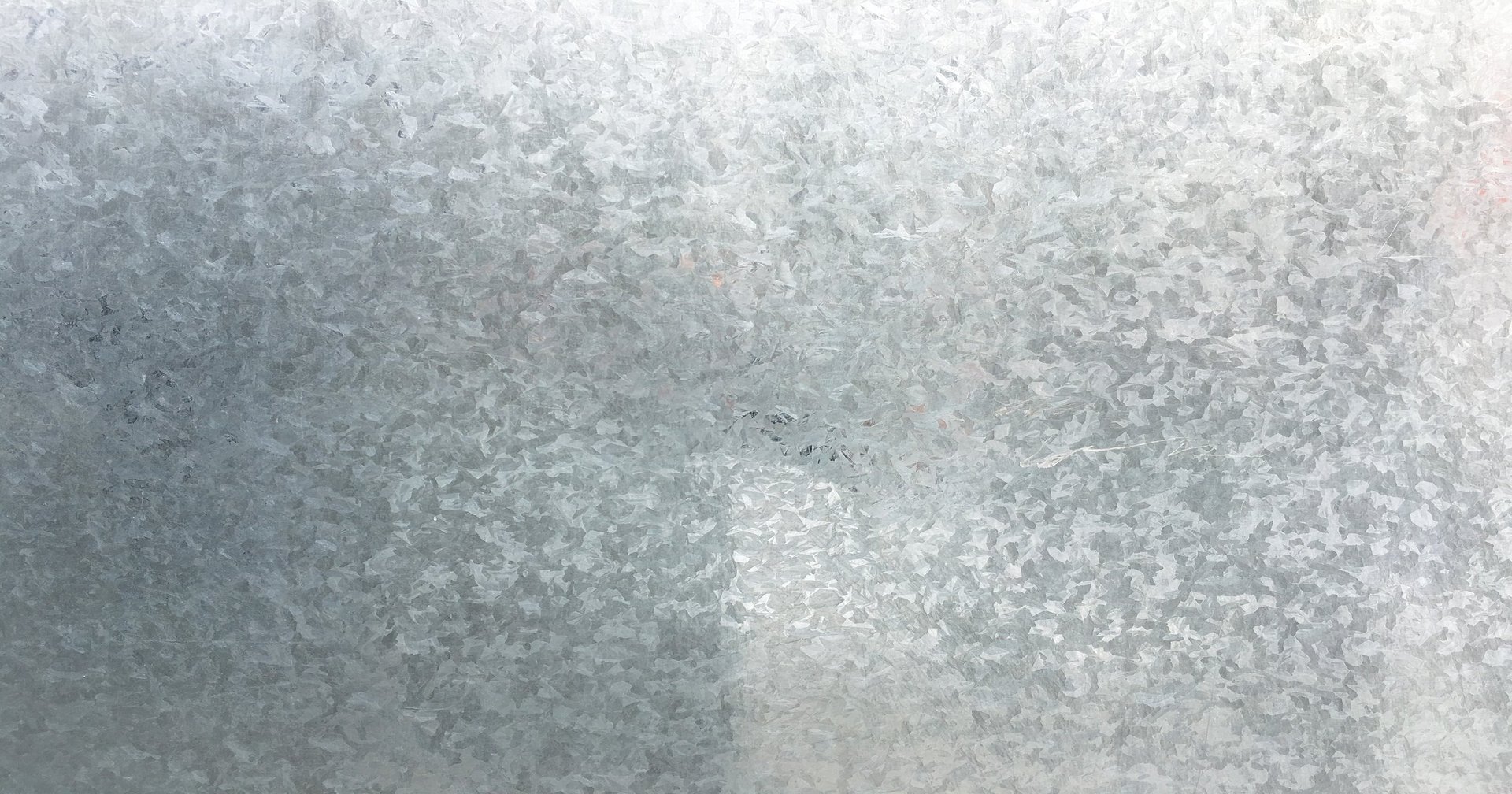

Coating state changes the basis: a coated product's delivered thickness is not the same figure as its base-metal thickness.

Primary source

ASTM A568/A568M-25a — General Requirements for Steel Sheet

Information date 2026-09-11

Presented at organization level as a source-backed procurement insight. No named individual is attributed, and no table values are reproduced.

Buyer implication — Use gauge only as an input convenience after the buyer declares the gauge convention and material system. Transfer explicit nominal thickness, the unit system and the tolerance basis into the RFQ, and never let a bare gauge number stand as a specification.

Evidence-Led Buyer Advantages

What this page removes from the risk

Six concerns that recur on gauge-referenced sheet orders, each mapped to the evidence that resolves it and the procurement outcome it produces.

Disputes caused by an unstated gauge convention

Evidence: A written declaration of the gauge convention and material system in the enquiry, the purchase order and the inspection documents, recorded alongside the gauge number itself.
Outcome: Both parties convert from the same declared basis, so a delivered thickness is assessed against what was actually agreed rather than against an assumed table.

Ordering to gauge where the drawing specifies a thickness

Evidence: A stated nominal thickness with units and the applicable standard, carried as the primary requirement, with gauge retained only as a cross-reference.
Outcome: The order matches the drawing and the governing standard on the first pass, removing the re-quote and re-cut cycle that follows a mismatched reference.

Oversized allowances on weight-critical packages

Evidence: The declared tolerance basis, the resulting edge and thickness allowance, and the coated or uncoated state of the material, all stated before the quantity is fixed.
Outcome: Weight and coverage are calculated from declared figures rather than a nominal assumption, so the commercial allowance reflects the real condition of the order.

Substitution risk when a gauge number is treated as a thickness

Evidence: A documented mapping between the gauge number, its convention and the resulting nominal thickness, signed off by the specifying engineer or buyer.
Outcome: Substitutions are assessed on equivalent declared thickness and tolerance, so lower-cost alternatives are compared on like-for-like technical grounds.

Inspection rejection at the receiving end

Evidence: The declared conversion source, the revision date of the reference used, and the tolerance basis against which the material will be measured.
Outcome: Inspection criteria are agreed before shipment, so acceptance is decided against a documented basis instead of an inspector's own table.

Quotation delay while the basis is clarified

Evidence: A single RFQ line carrying the gauge number, the declared convention, the material system, the governing standard, the tolerance basis and the coating state.
Outcome: The commercial team quotes without a clarification round, because every field needed to convert and price the requirement is already declared.

Decision implication — every advantage here comes from separating a convention from a measurement, not from a claim of superiority. Next action: check your own specification against these six concerns before the enquiry leaves your desk.

From Enquiry to Delivery

Where a gauge conversion sits in the order

Each stage names the concern it resolves, who owns it, the input required, the evidence it produces, the risk if it is skipped, and the next action.

Stage 1
Requirement definition
Owner: Buyer or specifying engineer
Buyer concern
Whether the requirement is actually written in gauge or in thickness, and which of the two governs acceptance.
Required input
The drawing, the datasheet and the applicable product standard, with the thickness requirement stated in metric or imperial units.
Evidence or output
A written requirement naming the nominal thickness, its units and the governing standard, with any gauge reference recorded as secondary.
Risk if skipped
The order is placed against a reference that neither party can verify later.
Next action
Confirm which of thickness or gauge governs before any conversion is attempted.
Stage 2
Gauge conversion
Owner: Buyer with the commercial team
Buyer concern
Whether the gauge number resolves to the thickness the project can actually use, and on what declared basis.
Required input
The gauge number, the declared gauge convention, the material system and the tolerance basis.
Evidence or output
An explicit nominal thickness in millimetres or inches, the declared conversion source and the stated assumption behind it.
Risk if skipped
A single-number conversion is treated as universal when it is only valid inside one declared system.
Next action
State the convention and the governing standard in writing before the figure is used anywhere.
Stage 3
Specification issue
Owner: Buyer with the commercial team
Buyer concern
Exact definition of the product so the quotation and the production run address the same requirement.
Required input
Material type, surface condition, coating state, edge condition, coil or cut length, and quantity.
Evidence or output
A written specification referencing the governing standard by designation, together with any project-specific requirements.
Risk if skipped
The supplier quotes against an interpretation the buyer never intended to specify.
Next action
Issue the specification as one controlled document rather than as a sequence of messages.
Stage 4
Tolerance and acceptance basis
Owner: Buyer, supplier and inspection party
Buyer concern
The thickness and edge tolerances the material will actually be measured against on arrival.
Required input
The declared tolerance basis, the inspection method and the sampling plan to be applied.
Evidence or output
A stated tolerance basis tied to the governing standard, with the measurement method recorded.
Risk if skipped
Acceptance is decided by the inspector's own reference rather than the agreed basis.
Next action
Agree the tolerance basis and the inspection method before the order is confirmed.
Stage 5
Quotation and commercial terms
Owner: Commercial team with the buyer
Buyer concern
Alignment between the technical requirement and what the quotation actually covers.
Required input
The controlled specification, the tolerance basis, the quantity and the delivery point.
Evidence or output
A written quotation stating the technical basis it was prepared against, alongside commercial terms and validity.
Risk if skipped
A price is accepted against an assumption that no document records.
Next action
Read the quotation's technical basis against the specification before accepting.
Stage 6
Documented release and delivery
Owner: Supplier with the buyer's receiving and inspection teams
Buyer concern
Whether the delivered material can be verified against the agreed basis without renegotiation.
Required input
The agreed specification, the declared conversion basis and the inspection plan.
Evidence or output
The inspection documents stated for the order, referenced to the governing standard.
Risk if skipped
Material is rejected or accepted on a basis that differs between the two parties.
Next action
Verify the delivered documents against the agreed basis before releasing the consignment.

The route that carries the order forward

steel sheet supplierCarry the confirmed specification forward as a commercial enquiry.This is the route that converts a settled technical basis into a priced, quoted requirement.Boundary: It does not convert gauge numbers on your behalf; bring the declared thickness with you.

Decision implication — the conversion is stage two of six, and it is the only stage that is worthless if the one before it was skipped. Next action: confirm the convention was declared before you act on any figure this page produces.

Source 03 — Gauge Conventions

The four things a gauge number can be written against

A gauge number is a pointer, and this table names the kinds of target it can point at. Its limitation applies to every row: this page does not reproduce a gauge table, so the specific table in use must be supplied or verified by the party that declared it.

Gauge conventions with material scope and applicability note
Basis the requirement is written against	Material scope	Applicability and limitation
Gauge convention A — declared by the buyer	As stated on the enquiry	The table the requirement was originally written against. Only the buyer or the specifying engineer can confirm which table this is.
Gauge convention B — declared by the buyer	As stated on the enquiry	A different table produces a different thickness from the same gauge number in the same material system.
Metric thickness with declared units	As stated on the enquiry	A directly measurable figure. Requires only the unit system and the governing standard to be orderable.
Imperial thickness with declared units	As stated on the enquiry	A directly measurable figure. The unit system must be stated on the order so the value is not re-read as metric.

Source and verification requirement

No gauge table is reproduced here, and none is inferred. The declared convention must be traceable to a document the buyer holds — a drawing note, a project specification, a datasheet or a client instruction — and that document must be identifiable by revision or date.

Buyer implication

If you cannot name the table your gauge number came from, you do not yet have a specification — you have a reference. Treat the requirement as unsettled until the convention is written down.

RFQ field: declared gauge convention, with the identifying document reference.

Decision implication — the taxonomy exists to make one question unavoidable: which of these is your requirement written against? Next action: write the answer into the enquiry before any number is converted.

Source 05 — Conversion Inputs

Every input a conversion depends on, and the RFQ field it produces

A conversion is only as reliable as its weakest declared input. Each row states why the input is required, the limitation that applies to it, and the field it becomes on the request for quotation.

Conversion inputs with rationale, limitation and resulting RFQ field
Input	Why it is required	Limitation	Resulting RFQ field
Gauge number	The reference the requirement originated from; retained so the chain of reasoning stays visible.	Carries no thickness on its own. It is meaningless without the convention it belongs to.	Gauge number (reference only)
Gauge convention or table	Determines which thickness the gauge number resolves to.	Multiple conventions exist and this page does not reproduce any of them. The applicable table must be supplied or verified by the buyer.	Declared gauge convention
Material system	The same gauge number can resolve differently across material systems.	Must be stated explicitly; it cannot be inferred from the product name alone.	Material type and system
Output unit system	Determines whether the stated nominal thickness is read as millimetres or inches.	Mixing metric and imperial values in one schedule without labels is a common source of error.	Nominal thickness (mm) / (in)
Governing product standard	The document that controls dimensions and general requirements for the order.	A general requirement does not override the product specification named on the order.	Governing standard and designation
Tolerance basis	Converts a nominal thickness into something that can be accepted or rejected.	Depends on product form, ordered thickness, width, length, specification and unit system.	Tolerance basis and inspection method
Coating state	Establishes whether the stated figure refers to base metal or to the coated product.	A coated product's delivered thickness is not the same figure as its base-metal thickness.	Coating state and thickness basis
Quantity and weight basis	Fixes whether the order is reconciled by piece, by length or by weight.	A weight basis computed from an undeclared thickness assumption cannot be reconciled afterwards.	Quantity with its weight basis

Decision implication — an input left implicit does not disappear; it is silently substituted by an assumption. Next action: transfer each of these fields into the enquiry before it is issued.

Source 07 — Failure Modes

How a gauge conversion goes wrong

Four failure modes seen on gauge-referenced sheet enquiries, each with the mechanism that produces it and the control that prevents it.

Failure mode 1

The convention was never declared

Mechanism: The gauge number is converted against whichever table the reader happens to have, so buyer and supplier arrive at different thicknesses from the same reference.
Leading indicator: The enquiry names a gauge with no reference to the table, the material system or the document it came from.
Control: Require the declared convention and its identifying document reference as a mandatory line on the enquiry before any figure is produced.

Failure mode 2

The converted value was treated as universal

Mechanism: A single converted figure is reused across a different material system, grade or coating state, where the same gauge number does not resolve to the same thickness.
Leading indicator: One thickness figure appears across multiple product forms in the same schedule with no per-form basis stated.
Control: Record the material system and coating state alongside every converted figure, so the value cannot be lifted out of its declared context.

Failure mode 3

The nominal value was used as an acceptance limit

Mechanism: Inspection measures delivered material against the converted nominal figure instead of against the agreed tolerance basis, so conforming material is rejected or non-conforming material is accepted.
Leading indicator: The order states a thickness but no tolerance basis, measurement method or sampling plan.
Control: State the tolerance basis and the inspection method as separate, explicit fields before the order is confirmed.

Failure mode 4

Coating state was left implicit

Mechanism: The stated figure does not distinguish base-metal thickness from delivered thickness, so the certificate and the specification are read against different references.
Leading indicator: A coated product is ordered with a single thickness figure and no statement of which basis it refers to.
Control: Declare the coating state and the thickness basis explicitly, and confirm which basis the inspection documents report.

Decision implication — none of these four failures is caused by arithmetic; every one is caused by an undeclared basis. Next action: apply the control for each mode that matches your requirement before the order is placed.

Buyer carries re-quote risk

When the convention surfaces late, the quotation has to be rebuilt against a different thickness, and any lead time already committed is lost.

Supplier carries rejection risk

Where the nominal figure was treated as an acceptance limit, conforming material can be rejected at receiving, shifting cost and delay onto the supply side.

Both parties carry dispute cost

An undocumented basis means neither party can demonstrate what was agreed, so the disagreement is resolved commercially rather than technically.

Project carries schedule risk

For fabrication and cladding programmes, a thickness dispute at receiving propagates directly into the installation sequence.

Source 08 — Verification Checklist

What to verify, and where each item has to come from

Six items decide whether a gauge-referenced requirement is orderable. Each is stated with its source, the limitation that applies, the buyer implication and the RFQ field it becomes.

Verification checklist with required source, limitation, buyer implication and RFQ field
Item to verify	Required source	Limitation	Buyer implication	RFQ field
Gauge convention and its identifying document	The drawing note, project specification, datasheet or client instruction the gauge number came from.	An undocumented convention cannot be verified by any third party, including the supplier.	Without it, every downstream figure rests on an assumption that cannot be tested at inspection.	Declared gauge convention + document reference
Explicit nominal thickness with unit system	The conversion the buyer performed, stated in millimetres or inches and labelled as such.	An unlabelled value can be re-read in the wrong unit system by any party in the chain.	A unit error is not detectable at inspection until the material is measured against the wrong scale.	Nominal thickness (mm) / (in)
Material system and grade	The applicable product specification named on the order.	A general requirement does not override the product specification named on the order.	Two orders can carry identical thickness and still be incomparable if the material system differs.	Material type, system and grade
Governing standard and designation	The standard the buyer intends to order against, stated by its full designation.	Edition and revision matter; a designation without its revision is ambiguous over time.	The standard decides both the dimensional framework and which tolerances apply.	Governing standard, designation and revision
Tolerance basis and inspection method	The tolerance requirement and the measurement method agreed with the supplier.	Tolerance limits depend on product form, ordered thickness, width, length, specification and unit system.	Without a stated basis, acceptance is decided by whoever measures first.	Tolerance basis + inspection method
Coating state and thickness basis	The product specification and the order line describing the coating.	Coated and base-metal thickness are different figures and are not interchangeable.	The certificate and the specification can be read against different references without either being wrong.	Coating state + which thickness basis

Decision implication — verification is only possible against a document, so an item without a source cannot be verified at all. Next action: work down this list and confirm each source exists before the enquiry is issued.

Working Tool

Gauge-to-Thickness Converter with System Lock

This tool records the basis of a conversion and produces a copyable record for your enquiry. It does not reproduce a gauge table, so it never generates a numeric thickness: that figure must come from the declared convention, supplied or verified by you.

The system lock. Every field below is required. If the gauge convention is not declared, or any field is missing, the tool returns an error instead of a figure — because a thickness produced without a declared basis would be invented, not converted.

Conversion basis

Gauge convention (required)

Material system (required)

Gauge number (required)

Enter the number alone — no units, symbols or separators.

Required output unit (required)

Order controls

Governing product standard (required)

Tolerance basis (required)

Coating state (required)

Quantity (required)

Decision implication — a tool that refuses to answer without a declared system is more useful than one that guesses, because the guess would be indistinguishable from a real figure. Next action: record the basis, copy the record, and transfer it into your enquiry.

Conversion Method

Four steps, in this order

The order matters as much as the steps. Each one below states its principle, the limitation that applies, and the consequence for the buyer if it is skipped.

Declare the system before converting
Principle
Establish which gauge convention and which material system the requirement was written against, and record the document that declares it.
Limitation
This page cannot determine your convention for you. It is a property of your requirement, not of the material.
Buyer implication
Until the convention is named, the gauge number is a reference rather than a specification.
Convert to an explicit figure and label the units
Principle
Produce a nominal thickness in millimetres or inches and state which unit system the figure is in.
Limitation
The conversion is only valid inside the declared convention. Lifting the figure into another system invalidates it.
Buyer implication
An unlabelled thickness can be re-read in the wrong unit system by any party downstream.
Attach the governing standard and the tolerance basis
Principle
Name the standard the order will be placed against and the tolerance basis against which the material will be accepted.
Limitation
A general requirement does not override the product specification named on the order.
Buyer implication
The nominal figure becomes an acceptance criterion only once a basis is attached to it.
Record the basis on every downstream document
Principle
Carry the declared convention, the explicit thickness and the tolerance basis onto the enquiry, quotation and order.
Limitation
A basis recorded on the enquiry but not on the order cannot govern acceptance at inspection.
Buyer implication
The chain of reasoning stays auditable only if it is written down at every handoff.

Decision implication — steps two, three and four are all invalid if step one was skipped, which is why the tool above blocks rather than guesses. Next action: run your requirement through the four steps in sequence, not selectively.

If the convention is unknown

Do not convert. Trace the gauge number back to the document it came from. If no such document exists, the requirement has to be restated in explicit thickness before the order can proceed — that is a specification decision, not a conversion.

If material and drawing disagree

The governing standard named on the order decides which dimensional framework applies. Where a product specification and a general requirement differ, the product specification governs — resolve this before quoting, not after delivery.

If the requirement changes mid-order

Treat any change to thickness, convention, standard or tolerance basis as a new controlled revision. A specification amended verbally across a message thread is no longer controlled, and the basis can no longer be evidenced.

Worked Examples

Four situations buyers actually bring to us

Each scenario states what the buyer had, how it resolves once the basis is declared, and the RFQ line that carries the answer forward. No numeric thickness appears in any row, because a worked figure would depend on a table this page does not hold.

Worked gauge-conversion scenarios with resolution and resulting RFQ line
Scenario	What the buyer had	How it resolves	Resulting RFQ line
Drawing specifies thickness, the enquiry quotes gauge	The drawing states a nominal thickness with its units; the enquiry reverts to a gauge number the buyer took from an earlier project.	The drawing governs. The gauge number is retained as a cross-reference only, and the conversion is performed solely to confirm the two are consistent within the declared convention.	Nominal thickness with units, governing standard, gauge as a reference note.
Two suppliers return different thicknesses for the same gauge	Both quotations cite the same gauge number but neither states the convention it was read against.	The quotations are not comparable. The discrepancy is a convention mismatch, not a commercial difference, and neither figure can be validated until the convention is declared.	Declared gauge convention and its identifying document, stated on every quotation.
Coated sheet ordered with a single thickness figure	A galvanized sheet enquiry states one thickness without saying whether it refers to base metal or to the coated product.	The coating state and the thickness basis must be declared before the figure is used. Base-metal and coated thickness are different references and are not interchangeable.	Coating state and an explicit statement of which thickness basis applies.
Weight-critical order priced against a nominal assumption	The order is reconciled by weight, but the thickness used for the weight calculation was never declared.	The weight basis has to be tied to a declared thickness and tolerance basis, otherwise the invoice cannot be reconciled against the delivered consignment.	Quantity with its weight basis, declared thickness and tolerance basis.

Decision implication — three of these four scenarios end without a number, and that is the correct outcome: the missing input is the answer. Next action: identify which scenario matches your enquiry and supply the field it is missing.

Specification Reference

From a converted figure to an orderable specification

A converted thickness is one field of a specification, not the specification itself. These are the attributes that must be fixed alongside it, with the limitation each carries and the RFQ field it becomes.

Specification attributes with limitation and resulting RFQ field
Specification attribute	Limitation	RFQ field
Nominal thickness with unit system	Meaningless as a specification until the convention it was converted from and the tolerance basis are both stated.	Nominal thickness (mm) / (in)
Material type and grade	Grade determines the applicable mechanical and dimensional requirements; it cannot be inferred from the product name.	Material type, grade and designation
Governing standard and revision	A designation without its revision becomes ambiguous over time as editions change.	Governing standard, designation and revision
Surface and finish condition	Finish requirements are separate from thickness and must be stated independently of the converted figure.	Surface and finish condition
Coating state and coating specification	For coated product, the coating specification and the thickness basis are two distinct fields and neither substitutes for the other.	Coating state, coating specification and thickness basis
Width and length, or coil parameters	Tolerance limits depend on ordered width and length, so these cannot be left to the supplier's default.	Width, length or coil parameters
Edge condition	Edge condition affects both the usable width and handling, and is often overlooked on cut-length orders.	Edge condition
Quantity with its weight basis	A weight basis computed from an undeclared thickness assumption cannot be reconciled after delivery.	Quantity with its weight basis

Close-up of galvanized zinc-coated steel sheet surface showing the coating texture — Surface condition is part of the specification, not a cosmetic detail. For coated product it also determines which thickness basis the order is written against.

Decision implication — fixing the thickness without fixing these attributes leaves the order open to more than one valid reading. Next action: close every attribute that applies to your product before issuing the enquiry.

Release Controls

What turns a conversion into something that can be released

Five controls that carry the converted thickness through to acceptance, each with its purpose, the limitation that applies, and the evidence it produces.

Quality controls with purpose, limitation and evidence produced
Control	Purpose and limitation	Evidence produced
Documented conversion record	Keeps the declared convention, the explicit thickness and the tolerance basis together as one auditable record.Limitation: The record documents the basis; it does not confirm that the conversion itself was performed correctly.	The conversion record copied from the tool on this page, attached to the enquiry.
Specification issued as one controlled document	Prevents the requirement from being assembled across a sequence of messages, where revisions diverge silently.Limitation: Control depends on the revision being referenced; an unversioned specification is not controlled.	A single specification document with a stated revision, referenced on the order.
Tolerance basis agreed before confirmation	Establishes the acceptance criterion while both parties can still adjust the order without cost.Limitation: The tolerance basis must be tied to the governing standard; a basis stated in isolation has no defined limits.	The tolerance basis and inspection method recorded on the confirmed order.
Inspection documents referenced to the declared basis	Makes the certificate checkable against the specification rather than against a general assumption.Limitation: A certificate reports against the standard it was issued to, which must be the standard named on the order.	Inspection documents naming the governing standard and the thickness basis reported.
Receiving verification against the agreed basis	Closes the loop by testing delivered material against the basis that was agreed, not against a local table.Limitation: Verification requires the agreed basis to be available at the receiving end; a record held only by the buyer is not sufficient.	The measurement method and sampling plan applied at acceptance, recorded per consignment.

Engineer inspecting metal stock in a warehouse as part of production supply control — Identification at dispatch is what makes a consignment verifiable against the basis agreed on the order. It is a release control, not a packing detail.

Decision implication — a conversion without a release control is a figure you cannot act on if the material is questioned. Next action: attach at least the conversion record and the tolerance basis to every gauge-referenced order.

What a release control is not

It is not a certificate of compliance, a warranty of availability, or a statement of origin. Those are separate documents with separate bases, and none of them substitutes for the conversion record that shows how a gauge number became a thickness.

What we can and cannot confirm here

We can confirm the basis your requirement is stated on and quote against it. We cannot confirm stock, price, certification status or lead time on this page — those are confirmed per enquiry by the commercial team, against the specification you declare.

Selection Context

Where the converted thickness sits among the alternatives

A converted gauge value only means something once it can be compared with the other product forms and process conditions that could satisfy the same requirement. These are the routes that frame that comparison.

steel size chartsPlace the converted thickness inside the cross-product size context.The related page to work alongside. A converted gauge value is only comparable when it sits beside the other product forms that could satisfy the same requirement, so the size chart is the right frame rather than a competing answer.Boundary: A size chart is a reference frame across product forms. It does not state which form your application requires, and it does not carry your tolerance basis.cold rolled steel sheet supplierConfirm whether the application requires a cold-rolled process condition.Cold-rolled sheet is the common case where a gauge number is quoted from a different convention than the hot-rolled equivalent, so the process condition must be fixed before the conversion is trusted.Boundary: This route describes the cold-rolled product scope; it does not convert your gauge number or supply the tolerance table.hot rolled steel sheet supplierCheck the hot-rolled condition against your converted thickness and tolerance requirement.Hot-rolled sheet carries the widest dimensional variation of the common sheet conditions, so if your conversion was made without a process condition attached to it, this is where that gap becomes visible.Boundary: This route describes the hot-rolled product scope; it does not convert your gauge number or supply the tolerance table.galvanized steel sheet supplierFix the coating state, which changes the delivered thickness basis.For a coated product the delivered thickness is not the same figure as the base-metal thickness, so the coating state has to be declared before the converted value is used as a specification.Boundary: This route describes the coated product scope; it does not state coating mass, coating class or a delivered thickness for your order.

Feeler gauge set used for precise gap and dimensional measurement on metalwork — A measured thickness is only meaningful against the basis it was declared on. The same instrument reads differently against a different reference.

Decision implication — selection is a comparison against declared alternatives, so the converted figure has to be stated in the same terms as everything it is compared with. Next action: take the converted thickness into the size-chart frame before choosing a product form.

Adjacent Hierarchy

The parent route for this reference

This page is a technical reference beneath the sheet product hierarchy. If you arrived here from a search rather than from the product structure, start from the hub.

steel sheet supplierReturn to the product hub to confirm the full sheet scope.The hub is the parent route for every sheet form, grade and finish referenced on this page.Boundary: The hub describes product scope; it does not carry this page's conversion method or the gauge-system lock.View product scope

Decision implication — a technical reference answers one question; the product hub is where the full scope of forms, grades and finishes is decided. Next action: confirm product scope on the hub before the specification is finalised.

Buyer Questions

Questions we are asked before a gauge order

Five questions that decide whether a gauge-referenced requirement is ready to be converted and ordered.

Is steel sheet gauge the same thickness for every material system?: No. Gauge is a convention, not a universal measurement, and the same gauge number denotes different thicknesses depending on which gauge table and material system it belongs to. Confirm which convention the requirement was written against before any number is converted, and state the resulting thickness explicitly in millimetres or inches on the order.
Why must the gauge convention be selected before conversion?: Because a gauge number carries no thickness on its own — the thickness only exists relative to a named table. Converting before the convention is declared produces a figure that cannot be checked against any source, and two suppliers reading the same gauge number from different conventions will quote incomparable material. Declare the system first, then convert.
Should a purchase order use gauge or explicit millimetre/inch thickness?: Use explicit thickness with its unit system, and retain gauge only as a reference input. A purchase order needs a value that can be measured and an acceptance basis that can be tested; a bare gauge number gives neither. Where the requirement originated as a gauge, state the gauge and the convention alongside the converted thickness so the chain of reasoning stays visible.
How do thickness tolerances relate to the converted nominal value?: The converted figure is a nominal thickness. It becomes an acceptance criterion only when a tolerance basis is attached, and that basis depends on the product form, the ordered thickness, width and length, the material specification and the unit system. Never treat the converted value alone as a pass/fail limit; state the tolerance requirement explicitly and verify it against the governing document.
Can galvanized coating change the delivered thickness basis?: Yes. For a coated product the delivered thickness is not the same figure as the base-metal thickness, so the coating state has to be declared before the converted value is used as a specification. State whether the thickness refers to the base metal or the coated product, and confirm which basis the certificate reports.

Decision implication — each answer reduces to the same requirement: state the basis before the number. Next action: if any answer raises a question about your own requirement, raise it on the enquiry rather than resolving it by assumption.

What we need from you before we can quote

These are the minimum fields the commercial team needs to prepare a quotation that will not have to be rebuilt. Every one of them is a declaration only you can make.

Gauge conventionWhich table the requirement was written against, and the document that declares it.

Explicit thicknessThe figure in millimetres or inches, with the unit system labelled.

Material system and gradeThe material the thickness applies to, stated by its designation.

Governing standardThe standard the order will be placed against, including its revision.

Tolerance basisWhat the material will be measured against on acceptance.

Coating stateWhether the stated thickness refers to base metal or to the coated product.

Request a Quote

Send us the declared basis, not just the gauge number

Complete the enquiry with the fields your conversion depends on. The commercial team responds against the basis you declare. Pricing is on request.

Decision implication — the enquiry is the only place where a declared basis becomes a commercial commitment. Next action: send the enquiry with the basis declared, and the commercial team will quote against it.
