Steel Sheet Grades
Dx51D Galvanized Steel Sheet Supplier
The designation sets the steel grade. Everything else is ordered separately.
DX51D identifies a cold-forming steel designation within EN 10346, but the RFQ still needs coating type/mass, surface treatment, dimensions/tolerance and intended forming/application. Keep those fields independent.
Price on request. No stock position, lead time, origin or certification status is stated or implied on this page.
What DX51D fixes, and what it leaves open
- What the designation fixes
- The steel grade for a cold-forming application, within the EN 10346 family of continuously hot-dip coated flat products.
- What it leaves open
- Coating type, coating mass designation, surface quality and treatment, dimensions and tolerance basis, and any organic coating or profile geometry.
- Why that matters commercially
- Two offers quoted against “DX51D” alone may carry different coatings and different thickness bases — so they are not the same product at different prices.
- What this page does not do
- It does not publish coating masses, tolerance values or coating-life performance figures, and it does not declare equivalence between EN 10346 and any other standard.
Decision implication: if your enquiry names only DX51D, the coating and dimensional basis will be set by whoever quotes it. State both yourself and the quotations you receive become comparable.
Why buy through Noor Deira Steel
Coated sheet is won or lost on the order description
A galvanized sheet order carries more independent variables than an uncoated one. The commercial value of a supplier on this product is measured by how completely those variables land in writing before production starts.
| Buyer concern | Evidence we provide | Outcome for your project |
|---|---|---|
| Two DX51D quotations that are not the same product | The coating type, coating mass designation, surface treatment, dimensions and tolerance basis are recorded on the order acknowledgement before production. | Offers can be compared on a like-for-like basis instead of on a headline figure that hides a different coating. |
| The coating specified does not suit the forming operation | The forming requirement and the service exposure are captured at enquiry, before the coating system is fixed. | The coating decision is matched to what the material has to survive, not to a generic default. |
| Thickness basis is ambiguous on a coated product | The tolerance basis and whether the reference is base-steel or delivered coated thickness are stated explicitly. | Goods-in inspection measures against a standard that was agreed, rather than one that was assumed. |
| Documentation arrives that does not match the order | The document set is agreed at order stage and reviewed against the named designation and coating before dispatch. | Fewer rejections and a cleaner handover pack for your client or end user. |
| Cross-border supply complicates the paperwork | Documentation and delivery requirements are agreed against the destination market before the order is confirmed. | Fewer clearance delays caused by incomplete or mismatched documentation. |
Written specification before commitment
The designation, coating system, dimensions, tolerance basis and document set are confirmed in writing before the order is placed — not inferred from the enquiry wording.
Traceability through the order
Enquiry, quotation, order acknowledgement and certificate stay linked, so any party in the chain can see what was bought against what was specified.
Dimensional questions answered explicitly
Thickness and dimension queries are resolved against the tolerance basis you nominate, rather than against a nominal-only description.
Evidence requirement: before you award, ask for the order acknowledgement to state the designation, the coating type and mass, the dimensions and the document set in the same terms your project specification uses. If those two documents disagree at acknowledgement stage, the discrepancy will not resolve itself later in the chain.
What we hold ourselves to on a coated-sheet order
- We quote against the specification you issue, not against a general description of the product.
- We return open points as written questions rather than filling them with an assumption that happens to suit the offer.
- We state the standard and edition being offered, and we do not present a different standard as an equivalent.
- We confirm the document set that will travel with the material before dispatch, not after it.
What we cannot do, and why that protects you
- We cannot confirm that a coating system suits your exposure condition — that depends on the design life and environment of your project, which we do not hold.
- We cannot approve a reduced coating mass as equivalent for an application — acceptance is your approver's decision, recorded against the specification.
- We cannot certify the material for a project — we supply to the specification and document what was supplied.
- We cannot absorb a late specification change into the same order — a change to the coating or the dimensional basis is a new order, and saying so up front is cheaper than discovering it at goods-in.
The three fields that decide a coated-sheet order
Coating system
Type and mass together. Neither is implied by the DX51D designation, and a quotation that names only the designation has not answered this field at all.
Dimensional basis
Nominal values with units, the tolerance basis, and whether base or coated thickness is referenced. Agree it before prices are compared.
Application and forming
What the part will do in service and what happens to it before it gets there. This is what lets a supplier flag the first two as under-specified.
Procurement Journey
From a coated-sheet requirement to a delivered order
Six stages, each with a defined owner and a decision that has to close before the next one opens. On a coated product the coating and dimensional questions must be settled earlier than most buyers expect.
| Stage | Owner | Required input / output | Risk if not closed |
|---|---|---|---|
| 1Requirement defined | Design or project engineer | Designation, standard and edition, forming operation and service exposure written down together. | The coating decision has no basis and defaults to whatever is commercially convenient. |
| 2Coating system fixed | Design engineer, with the buyer | Coating type, coating mass designation and surface treatment selected against the forming and exposure requirements. | Quotations arrive for different coatings and cannot be compared. |
| 3Dimensions and tolerance basis agreed | Buyer, with the design | Nominal thickness, width and length with units, plus the tolerance basis and whether base or coated thickness is referenced. | Goods-in inspection applies a standard nobody agreed to. |
| 4Enquiry and quotation | Buyer | A complete order description, with open points returned in writing rather than filled by assumption. | The lowest offer is selected on a figure that describes a different product. |
| 5Order and documentation | Buyer and supplier | Order acknowledgement recording designation, coating, dimensions, document set and delivery terms. | There is no baseline against which to reject non-conforming material. |
| 6Dispatch and receipt | Supplier and importer | Identification, packing and documents confirmed against the order before dispatch and re-checked at receipt. | Untraceable material is quarantined pending documentation that may never arrive. |
Risk control: stages 2 and 3 are the ones buyers most often defer to the supplier. Both must close before the enquiry is issued — once production has started at stage 5, the coating and dimensional basis cannot be changed without a new order.
Source 03 — Coating metallurgy
What a galvanized coating actually does to the sheet beneath it
A hot-dip coating is not a paint layer sitting on steel. It is a metallurgically bonded zinc-based system whose behaviour under forming and in service depends on how it was produced and how thick it is.
The coating protects by sacrificial action
Zinc is less noble than iron, so where the coating is continuous it acts as a barrier, and where it is cut or scratched the surrounding zinc corrodes preferentially and continues to protect the exposed steel at the cut edge. This is the property that distinguishes galvanized sheet from a barrier coating, and it is the reason coating mass — not appearance — is the meaningful specification figure.
Coating mass is an areal figure, not a thickness
Coating mass is expressed as a mass per unit area of sheet, with a designation taken from the applicable standard. Two panels quoting the same coating mass designation can still differ in how that mass is distributed between the two faces unless the face split is stated. Where a minimum local coating mass applies in addition to the average, that also comes from the standard rather than from a supplier summary.
Forming changes what the coating must tolerate
A coating that performs on a flat panel is not automatically suited to a tight bend, a drawn feature or a profiled section. Bending and profiling impose strain on the coating, and the coating system, surface treatment and base-metal designation chosen for a flat application are not interchangeable with those chosen for an aggressive forming operation. The forming route is therefore an input to the coating decision, not an afterthought.
Storage and ageing are part of the picture
Coated sheet is affected by how it is stored and how long it is held. Stacked, damp or poorly ventilated storage — and extended periods before forming — can produce surface conditions that are not defects of the coil but are nonetheless rejected at goods-in if the acceptance basis was never written down. Surface condition at receipt should be assessed against an agreed reference, not against a recollection of what a sample looked like.
Where the coating question is actually decided
The coating type, coating mass and surface treatment are fixed by the standard and by the application requirement — not by a supplier's stock position. The designation alone does not carry them, so a quotation that names only the designation has not yet answered the coating question. Settle it in the enquiry, in writing, and record the answer in the order acknowledgement.
Decision implication: treat the coating specification as a derived requirement — it follows from the forming route and the service environment. Writing the designation without the coating leaves the most consequential part of a galvanized sheet order undefined.
Source 06 — Equivalence and substitution
Where coated-sheet substitutions go wrong
A substitution is only as safe as the number of properties the two specifications actually share. On coated sheet, that number is usually smaller than the designation suggests.
The designation is not the whole product
A designation fixes a base-metal category within a standard. Coating type, coating mass, surface quality and surface treatment are selected separately and are not implied by it. Two quotations carrying the same designation can therefore describe materially different products, and the difference sits precisely in the fields most often left off the enquiry.
Different standards are different systems
Coated-sheet standards from different bodies use different designation structures, different coating-mass series and different surface-quality classifications. A “closest equivalent” across two such systems is a judgement about specific properties, not a translation. Whoever accepts the substitution carries the responsibility for that judgement, and it should be recorded as a decision rather than appearing as an assumption inside a quotation.
The substitution decision belongs to the designer
Whether an alternative coated sheet is acceptable for a given application is a design decision that depends on the forming route, the exposure condition and the acceptance criteria of the project. We can supply documentation for a candidate material and answer technical questions about it. We do not approve equivalence, and we will not present an alternative as equivalent on our own authority.
| Question raised | What has to be checked | Who decides |
|---|---|---|
| Can we supply a different coating type? | Whether the forming route and exposure condition that drove the original coating selection are still satisfied, and what documentation the project requires for the change. | Design engineer, recorded against the approved specification. |
| Is a lighter coating mass acceptable? | The corrosion exposure the part will see in service and the coating mass the specification actually calls up — not the mass that happens to be available. | Design engineer, with a durability or corrosion specialist. |
| Can we use an equivalent standard instead? | A property-by-property comparison of designation, coating series, surface classification and tolerance provisions, documented rather than asserted. | Project specification owner or approving authority. |
| Can the surface treatment be changed? | Compatibility with the downstream process — forming lubricants, joining, and any subsequent painting or organic coating. | Design engineer, with the fabricator performing the operation. |
Evidence requirement: any substitution accepted on a coated-sheet order should be recorded as a written, referenceable instruction — naming the property that was compared, the source of the comparison and the person who accepted it — before the material is ordered. An approval that exists only in a phone call is not an approval that survives an audit or a claim.
Source 08 — Documentation
What a mill test certificate does and does not prove
An MTC is a statement about the material it identifies — not about the order, the coating selection or the application. Reading one correctly is a skill, and reading it against the order description is the control.
It identifies a heat or lot, not your part
The certificate traces to the material it was issued for. It does not establish that the material you received is from that lot, and it does not establish fitness for your application. The link between the two is the identification physically carried on the bundle, pack or coil — which is why identification at receipt is the step that makes the certificate worth anything.
It must be read against the order, not in isolation
A certificate can be internally consistent and still not match what was ordered — a different coating mass, a different surface treatment, a different tolerance basis. The check is a three-way comparison between the order acknowledgement, the certificate and the identification on the material. Where the three disagree, the discrepancy is a commercial question for the supplier before it becomes a site question.
Additional documents answer different questions
A declaration of conformity, a coating-mass record and a dimensional inspection record each address a separate part of the requirement. Requesting “the MTC” as a single item usually means the coating and dimensional evidence never arrives — and it is exactly those two that a galvanized sheet order depends on. Name each document you require in the enquiry.
| Document | What it establishes | What it does not establish | Check at receipt |
|---|---|---|---|
| Mill test certificate | The chemical and mechanical results recorded for the lot it identifies, against the standard named on it. | Coating mass distribution, surface treatment or fitness for your forming operation. | Identification on the pack matches the certificate lot reference. |
| Declaration of conformity | The supplier's statement that the material supplied conforms to the specification referenced on the document. | Any property not named in that referenced specification. | The specification referenced matches your order, including the edition. |
| Coating mass record | The coating mass figures recorded for the material, where the supplier provides them. | Surface condition or adhesion performance after forming. | The designation matches the coating mass your order calls up. |
| Dimensional inspection record | Measured values against the tolerance basis stated on the record. | Whether that tolerance basis is the one your design assumed. | The stated basis matches the order — and states whether base or coated thickness is meant. |
Risk control: name every document you require in the enquiry and repeat the list in the order acknowledgement. A document set agreed only after dispatch is a document set you may not receive, and material that cannot be traced to an agreed document set is material you cannot release to a project that requires traceability.
Selection
Choosing between coated-sheet routes before you enquire
Galvanized sheet is one route among several coated flat-product options. The first decision is which family of product the application actually needs — the designation is a consequence of that, not a starting point.
Start from the exposure and the forming route
Two questions decide most of the specification: what the part will be exposed to in service, and what forming operation it will pass through before it gets there. Those two answers determine the coating family, then the coating mass, then the surface treatment — in that order. A designation chosen first and justified afterwards inverts the process, and it is the single most common cause of a coated-sheet order that has to be renegotiated after award.
Decide whether this is a galvanized or a painted product
Continuously hot-dip coated sheet and organic-coated (pre-painted) sheet are different product families with different standards, different inspection criteria and different handling requirements. If the application needs a finished colour or a specific surface appearance, a galvanized product alone will not deliver it, and a pre-painted product carries its own constraints. Settle the family before obtaining prices — quotations for two families are not comparable.
Use the type overview to place the requirement
The galvanized steel sheet type overview sets out how the coated-sheet family is organised on this site — the product forms, the routes available and the questions that separate them. Use it to place your requirement before submitting an enquiry, so the specification you send is already written against the right product family.
Galvanized Steel Sheet — type overviewWhat we will not do
We will not select a coating system on your behalf, approve a coated sheet for an application, or confirm that a lighter coating mass will perform in service. Those are design decisions that depend on information about your project we do not hold. We will supply material to the specification you issue, document what was supplied, and answer technical questions about what we can evidence.
Decision implication: place the requirement in a product family and write down the exposure and forming inputs before you request prices. An enquiry that starts from a designation and works backwards will attract offers that cannot be compared with one another.
Decision tool
DX51D + Coating Order Checker
Enter your requirement field by field. The checker reports which parts of a coated-sheet purchase description are still open, what to do about each, and produces a controlled summary you can transfer to the RFQ.
Nothing entered here leaves your browser unless you transfer it yourself. The summary is held in this tab only.
Checker result
Method: the checker compares your entries against the fields a coated-sheet purchase description requires — designation, coating system, dimensional basis and application — and flags the ones still open. It does not validate your engineering selection or approve a coating for your application.
Next action: clear the open points above, then copy the summary and attach it to your enquiry. A quantity and destination with units, a stated tolerance basis and an explicit coating designation are the four items that most often arrive missing — and each one changes the price.
Specifications
Standards, properties and dimensional basis
Three separate questions decide whether a DX51D quotation matches your requirement: which standard governs, which properties are being asserted, and on what dimensional and tolerance basis. They are answered by different documents.
The governing standard is the one your project names
DX51D sits within the EN 10346 family for continuously hot-dip coated steel flat products. If your project specification cites an edition of that standard, that edition governs. If it cites a different coated-sheet standard, the two are separate systems and the substitution question belongs to your approver. This page does not treat any standard as a substitute for another.
Compare the two routes on this site
Governing standard — decide which system controls acceptance
| Question | Decide it by | Record in the enquiry | Consequence if left open |
|---|---|---|---|
| Which standard governs acceptance? | The standard named in your project specification or approved design. | Standard number and edition, verbatim. | Supplier and buyer inspect against different criteria. |
| Is a second standard being offered? | Whether your approver accepts it — a commercial preference is not an approval. | The written approval, naming the properties compared. | A non-conformance that is only discovered at goods-in. |
| Which edition applies? | The edition referenced by the project, not the most recent one in circulation. | The edition year alongside the standard number. | Requirements are applied that the design never assumed. |
Chemical and mechanical properties — who asserts what
| Property group | Where the requirement comes from | Evidence to request | What this page will not do |
|---|---|---|---|
| Base-metal chemistry | The governing standard, for the designation ordered. | Mill test certificate for the lot supplied. | Quote limiting values from memory — read them from the standard edition in force. |
| Tensile and elongation behaviour | The governing standard, with the designations and directions it sets out. | Certificate results, with test direction and the standard edition referenced. | Confirm suitability for your forming operation. |
| Coating properties | The coating designation selected alongside the base-metal designation. | Coating mass record or certificate entry where the supplier provides one. | Assert adhesion or forming performance for your process. |
| Surface condition | The surface quality and treatment classification your specification calls up. | An agreed visual reference recorded with the order. | Accept or reject appearance on an unstated basis. |

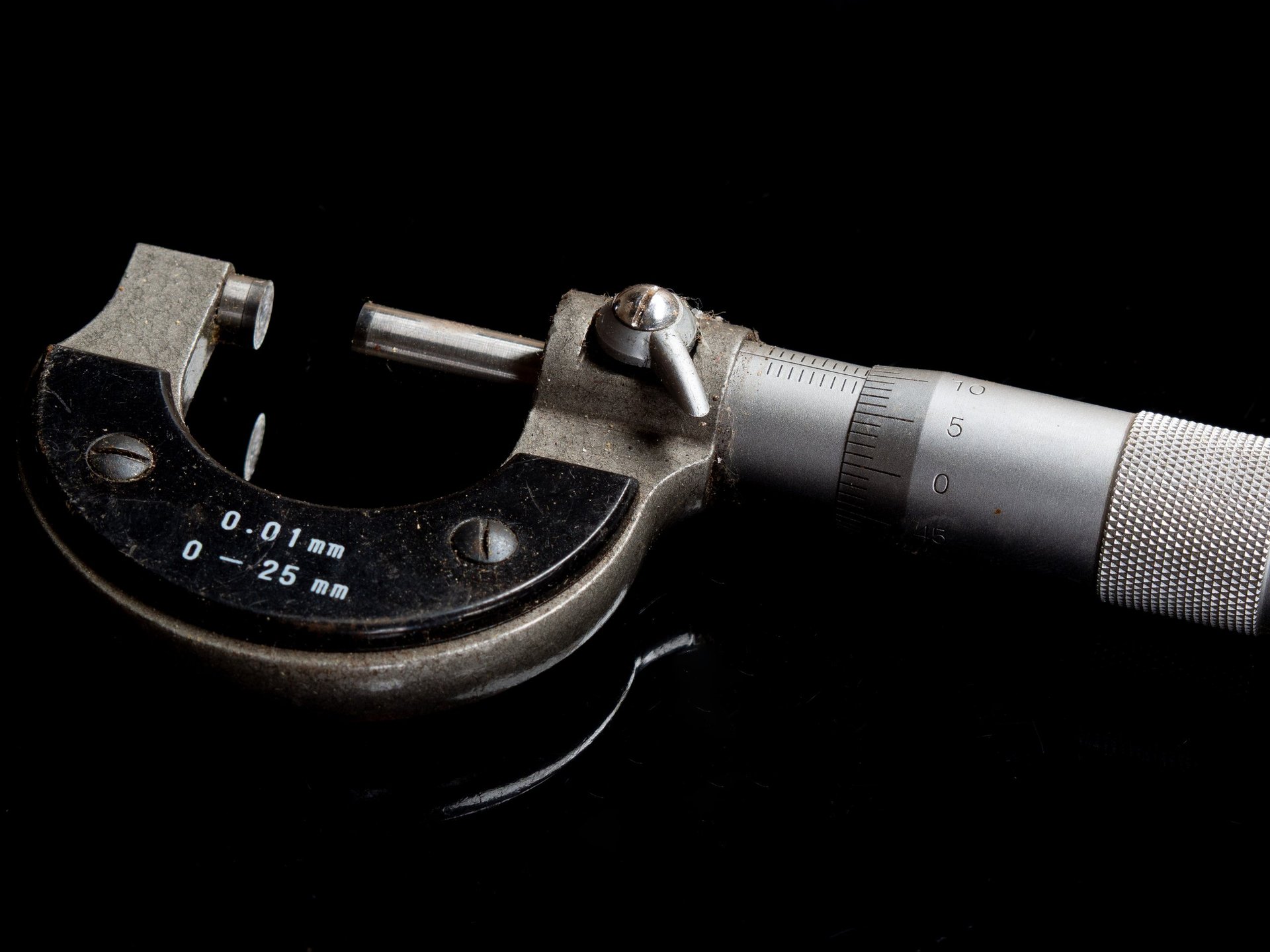

Dimensions and tolerances — agree the basis before pricing
| Dimension | State it as | Tolerance basis | Common failure |
|---|---|---|---|
| Thickness | Nominal value with unit, and whether base or coated thickness is referenced. | The provision of the standard edition your specification calls up. | Buyer and supplier measuring different things and both being correct. |
| Width and length | Nominal values with units, stated in one convention throughout. | As above, per the governing standard edition. | SI and inch-pound values mixed within a single enquiry. |
| Form of supply | Whether the requirement is sheet, cut-to-length or coil — and the coil parameters if coil. | Determined by the ordered form, not interchangeable between forms. | A quotation for the wrong supplied form being compared against the right one. |
Decision implication: the three questions above are answered by three different documents — your specification, the mill certificate and the dimensional record. Obtain all three before you compare offers, and reject any quotation that leaves the tolerance basis or the coating designation unstated.
Quality and traceability
Identification, packing and documents — the three points of control
Traceability is not a document that arrives after the fact. It is a chain built at three points, and it breaks at whichever of the three is treated as a formality.
Identification
Each bundle, pack or coil should carry identification that ties it to the lot the documents were issued for. Where that link is missing or illegible, the material becomes untraceable regardless of how complete the paperwork is — the certificate describes a lot, not a bundle. Record the identification actually observed at receipt, not the identification that was expected.
Packing and protection
Coated sheet is vulnerable in transit and in storage. The packing method, the use of moisture protection and the handling arrangement are agreed with the order and checked at receipt, because coating damage arising from transit or storage is difficult to attribute afterwards. Where the material is to be held before forming, the storage condition is part of the control, not an operational afterthought.
Documents at the point of delivery
Documents should arrive with the material, not after it. A certificate that follows the consignment by days or weeks leaves the material quarantined in the meantime, and it removes the opportunity to raise a discrepancy while the consignment is still open on both sides. State in the order that documents travel with the goods.
What we can and cannot do at this stage
We can
- Supply material to the specification you issue, with the document set agreed in the order.
- Provide certificates and records for the material supplied, as agreed.
- Confirm identification, packing and document arrangements in writing before dispatch.
We cannot
- Certify fitness for your application or approve material for a project.
- Replace your goods-inspection step — the three-way check is yours.
- Retrospectively establish traceability if identification was lost in transit or storage.
Risk control: write the three controls into the order — identification standard, packing and protection method, and documents travelling with the goods. Each is inexpensive to agree in advance and expensive to reconstruct after delivery.
Applications
Where coated sheet is used, and what that changes
A designation that performs in one application is not automatically suited to another. Each of the three routes below places different demands on the coating, the surface treatment and the dimensional basis.
Roofing
Roofing places the coating in permanent weather exposure with cut edges at every sheet end and fixing point. The coating system and coating mass carry the durability expectation, and the cut-edge protection that galvanizing provides is doing real work at each of those edges. Dimensional consistency matters because sheet ends and laps have to align across a run.
Steel sheet for roofingCladding
Cladding adds an appearance requirement to the durability requirement. Panels are seen in raking light, so surface condition and consistency between panels become acceptance criteria in their own right, and the surface treatment has to suit any subsequent finishing. The agreed visual reference matters as much here as the coating mass.
Steel sheet for claddingFabrication
Fabrication puts the coating through forming, cutting, joining and handling before the part ever reaches site. The forming route is the dominant input to the coating decision, and the fabrication method — shear, laser, press brake, roll forming — changes what the coating and surface treatment have to tolerate.
Steel sheet for fabricationWhat the application question actually decides
Coating system
Exposure duration and environment determine the coating mass the application needs — not the coating mass that happens to be quoted.
Surface treatment
What happens after forming — painting, joining, prolonged storage — determines which treatment is compatible, and compatibility is a decision for your process.
Dimensional basis
The tolerance that matters follows from the application: lap alignment on a roof, panel consistency on a façade, forming allowance in a fabrication shop.
Decision implication: name the application in the enquiry. It is the single input that lets a supplier tell you which of your specification fields is under-specified — and it costs one line to provide.
| Application | Dominant demand on the product | Field most often left open | Who owns the decision |
|---|---|---|---|
| Roofing | Long-term weather exposure, with cut edges at every fixing point and sheet end. | Coating mass — usually quoted at whatever the source offers rather than against the intended service life. | Design engineer, against the durability requirement. |
| Cladding | Appearance consistency across panels, plus the same durability requirement as roofing. | Surface quality and the agreed visual reference for acceptance. | Design engineer and the façade or envelope package architect. |
| Fabrication | Coating survival through cutting, forming, joining and handling before the part reaches site. | Surface treatment compatibility with the downstream process. | Design engineer, with the fabricator performing the operation. |
| General construction | A mix of exposure conditions and forming routes across a single project package. | Assuming one specification will serve every location in the package. | Project specification owner, per location. |
Risk control: where one project covers more than one exposure condition, do not let a single specification cover all of them by default. The cheapest route is to state each condition separately in the enquiry and let the supply position be quoted against each — the alternative is discovering at goods-in that the general specification is under-specified for the most exposed location.
GCC Markets
Coated sheet supply across the Gulf
We supply coated steel sheet to buyers across the six GCC markets below. Delivery terms, documentation practice and lead times differ by destination — set the destination in the enquiry so the offer reflects it.
United Arab EmiratesSteel sheet supply into the UAE market, with delivery across the Emirates and documentation matched to local project practice.
UAE steel sheet supply
Saudi ArabiaSteel sheet supply into the Saudi market, with export documentation prepared for the border and the project.
Saudi Arabia steel sheet supply
QatarSteel sheet supply into the Qatari market, with delivery terms agreed against the project programme.
Qatar steel sheet supply
KuwaitSteel sheet supply into the Kuwaiti market, with documentation prepared to the destination's requirements.
Kuwait steel sheet supply
BahrainSteel sheet supply into the Bahraini market, with shipment and documentation arrangements agreed per order.
Bahrain steel sheet supply
OmanSteel sheet supply into the Omani market, with overland and sea freight options considered against the delivery point.
Oman steel sheet supplyDestination is a specification input, not a logistics detail
The destination determines the documentation the consignment has to carry, the packing that protects it in transit and the storage conditions it will meet on arrival. All three affect coated sheet more than they affect uncoated product, because a coating that arrives in good condition and is then stored badly can still fail inspection. Name the delivery point and, where it is known, the storage arrangement.
Decision implication: select your market above and set the destination in the RFQ. An enquiry that omits the destination cannot be quoted against the terms that will actually apply to delivery.
Commercial
Availability, pricing and what a quotation will and will not state
Coated sheet is quoted against your specification, not from a catalogue. What you receive depends directly on how completely the specification was written — and on which questions the quotation leaves open.
Availability is confirmed against the order, not published
Coated sheet availability moves with the specification: a change of coating mass, surface treatment or thickness can move a requirement between sources entirely. We confirm availability against the specific combination you enquire about rather than publishing a stock position that would be out of date by the time it was read. That is why the specification has to be complete before availability is meaningful.
Price on request — and why
Coated sheet is priced on the specification, the quantity, the destination and the delivery terms together. A published figure that ignored any of those would mislead more than it informed. Every price we give is issued against your stated requirement, with the basis recorded, so that two offers can be compared on the same terms.
What a quotation should state back to you
- The standard and edition being offered.
- The coating type, coating mass designation and surface treatment.
- The dimensional basis and tolerance reference.
- The document set that will accompany the material.
- The delivery terms and the named destination.
| Compared on | Why it changes the number | What to do about it |
|---|---|---|
| Coating mass designation | Heavier coating means more zinc per unit area, and zinc is the input whose cost moves most independently of the base steel. | Fix the coating mass in the enquiry and require every offer to state it back. |
| Surface treatment | Different treatments carry different processing steps and can change handling and storage requirements. | State the treatment your downstream process requires rather than accepting the default. |
| Quantity and unit | Order size drives the pricing basis, and a quantity without a unit cannot be priced at all. | Give a numeric quantity with its unit and, where relevant, the tolerance on it. |
| Destination and delivery terms | Freight, documentation and risk transfer all sit in the delivery term, and they differ by market. | Name the delivery point and the terms you are comparing on. |
| Document set | Additional certification and inspection documentation is work that has to be priced rather than assumed. | List every document you require and require it to be priced explicitly. |
Comparing offers on a like-for-like basis
The lowest number is only the lowest number once every offer describes the same product on the same terms. Before comparing, check each quotation against the five lines in the table above; where one is silent, that is not a saving — it is an open point that will be settled later, usually at your cost. Ask for the missing line in writing rather than assuming the offer includes it.
Decision implication: issue a complete specification, then require every quotation to state the same five lines back. An offer that omits the coating designation, the tolerance basis or the document set is not comparable with one that includes them — regardless of the figure.
Related requirements
If this page is not quite your requirement
DX51D is one designation within a wider coated and uncoated sheet range. If your requirement sits in a different product family, the sheet overview is the right place to start.
Steel sheet as a product family
The steel sheet overview covers the full range of flat products we supply — hot rolled, cold rolled, galvanized, pre-painted and the standards and grades that sit within each. It is the correct starting point when your requirement is a flat product but the coated route is not yet settled, or where you are comparing a coated option against an uncoated one on cost and durability.
Steel sheet — full range overviewWhen a different route is more likely
- A finished colour is required — the requirement is an organic-coated product, not a hot-dip coated one.
- No coating is needed at all — where the part is painted after fabrication and the substrate only has to be formable and weldable, an uncoated hot-rolled or cold-rolled route is usually the right enquiry.
- The part is a structural section — beams, channels and angles are a different product family with their own standards and are not sheet.
- The requirement is pipe or tube — hollow sections and pipes are supplied to different standards and inspected differently.
A note on what this page can conclude
This page describes DX51D coated sheet and how to specify it. It does not tell you whether DX51D is the right material for your application, whether a different coating will work where DX51D has been proposed, or whether one standard may be used in place of another. Those are design decisions. If you are unsure which family your requirement belongs to, send the requirement as it stands — including the application — and we will tell you which page of this site answers it, or which question your designer needs to settle first.
Next action: if your requirement is clearly a coated flat product, proceed to the checker above and build a controlled purchase description. If it is not, start from the sheet overview and place the requirement in the right family before you spend time on a specification.
Placing the requirement in a family
Flat product or long product is the first split. Sheet, plate, coil and strip are all flat; beams, channels, angles and bars are long. The two are supplied to different standards, inspected differently and priced against different bases. A requirement that has not been placed on one side of that split cannot be quoted meaningfully.
Coated versus uncoated is the second split
Within flat product, whether the surface is protected matters more than any other single choice. An uncoated substrate that will be painted after fabrication is a different enquiry from a product that arrives with its protective coating already applied. Choosing between them is a durability and process decision, and it belongs before the designation is written.
Standard family is the third
European and American coated-sheet standards are separate systems with different designations, different coating series and different surface classifications. A requirement written against one family cannot simply be re-issued against the other without an approval step. Knowing which family your project specification lives in is what stops a substitution question arising after award.
Decision implication: answer the three splits — flat or long, coated or uncoated, which standard family — before writing a designation into an enquiry. A requirement that has answered all three is one a supplier can price and a designer can approve without a second round of questions.
Expert insight
Where the DX51D requirement is defined
The authoritative source for a DX51D specification is the standard itself, not a supplier summary or a secondary compilation. Below is the primary source we point buyers to, with its scope and the limits of what it settles.
BS EN 10346:2015 — Continuously hot-dip coated steel flat products for cold forming
Technical delivery conditions. Published by BSI.
- Primary source
- BS EN 10346:2015 on the BSI Knowledge store
- Information date
- 11 September 2026
- Scope
- Continuously hot-dip-coated steel flat products for cold forming and construction — the technical delivery conditions under which designations in this family are specified.
- Method
- Direct reference to the published standard as the primary source. Designations, coating series and dimensional provisions are read from the standard edition in force rather than restated here.
Limitations
DX51D does not by itself identify coating mass, surface quality or treatment, dimensional tolerances, organic coating, profile geometry or application approval. The standard sets out the framework within which those are specified; it does not select them for your project, and its publication does not constitute approval of the material for any particular application.
How to use a primary source
- 1. Identify the edition your project specification cites. That edition governs — not the latest one published.
- 2. Read the designation and the coating-related order options directly from the standard rather than from a summary.
- 3. Record the standard number, edition and clause reference in your enquiry so the offer can be checked against the same text.
- 4. Where a supplier references a different standard, treat it as a substitution question requiring your approver — not as an equivalent.
Why we cite the standard rather than restate it
Numerical requirements — coating mass values, tolerance limits, property ranges — belong to the standard edition in force and to the classification your specification selects. Reproducing them here would create a second, unchecked source that could drift out of step with the standard it claims to describe. Use the source. Where you need a value confirmed for a live enquiry, ask us and we will confirm it against the edition referenced in your order.
Decision implication: cite the standard number, edition and clause in the enquiry, and check every quotation against that same text. A quotation that references a different standard — or none at all — is a different offer, whatever the coating designation on it says.
Questions buyers ask
DX51D galvanized steel sheet — the questions that decide the order
These are the questions that most often determine whether a coated-sheet enquiry comes back with comparable offers. Each answer is about how to specify and verify — none of them approves a material for an application.
What exact specification fields should an RFQ for DX51D Galvanized Steel Sheet include?
Which standard or designation should control acceptance of DX51D Galvanized Steel Sheet?
How should thickness, dimensions and tolerances be stated for DX51D Galvanized Steel Sheet?
Which finish, coating, forming or service-condition details can change the DX51D Galvanized Steel Sheet selection?
How should an enquiry for DX51D Galvanized Steel Sheet be structured, and what should the quotation confirm?
Decision implication: use these five answers as a checklist against your own enquiry before you send it. If any of the five cannot be answered from what you have written down, the enquiry is not yet ready to issue.
Contact Commercial Department
Send us a complete coated-sheet specification
Designation, standard and edition, coating type and mass, surface treatment, dimensions with units and tolerance basis, quantity with unit, forming or application, and destination. Put those in the enquiry and the offer you receive can be compared with any other on the same terms. Where a field is still open, say so — we will return it as a question rather than fill it by assumption.
Monday – Saturday: 8.00 AM – 6.00 PM | Sunday: Closed
Before you send
- Standard and edition named, and the same edition referenced throughout the enquiry.
- Coating type, coating mass designation and surface treatment all stated.
- Tolerance basis stated, and base versus coated thickness made explicit.
- Quantity with its unit, and the destination named.
- Document set listed, and required to travel with the goods.
