Square Steel Billet Supplier
Square billet fit is governed by the ordered side dimension, length, corner/section condition, dimensional tolerances, grade or chemistry basis and the receiving mill pass/charging constraints; square shape alone does not establish interchangeability.
Square is a shape, not a fit. What decides it is whether the ordered side, length and corner condition clear your mill's entry guides — so this page works through the geometry that has to pass, and the evidence that closes the decision.
Standards & dimension evidenceState these before fit can be confirmed
- Ordered side dimensionThe nominal side in millimetres, together with the tolerance basis that governs it — not the nominal figure alone.
- Length and cut conditionCut length and the permitted variation, plus how the ends are cut, since both affect charging.
- Corner and section conditionCorner radius, corner form and section squareness — the geometry that must pass the entry guides.
- Tolerance and straightnessSide tolerance, diagonal difference and straightness over the length, stated as values.
- Receiving mill constraintThe mill's entry limit, guide setup and charge geometry — the constraint the billet must actually satisfy.
Selection logic
When a square billet fits — and when it does not
A square section is a shape, not a fit. Decide on the ordered geometry and the receiving mill's constraint first; the nominal square figure settles neither on its own.
Fits when
- The ordered side, length and tolerance basis are stated as values, not left to the nominal figure.
- The geometry has been checked against the receiving mill's entry limit and guide clearance before pricing.
- Corner condition and section squareness are agreed where the mill's guides depend on them.
- The basis for mass — theoretical or actual — is agreed up front so settlement is not disputed later.
Does not fit when
- The order stops at a nominal square size, leaving tolerance, straightness and length variation undefined.
- Square shape is treated as establishing interchangeability with a differently toleranced offer.
- The receiving mill's entry constraint is unknown, so fit is assumed rather than confirmed.
- Grade or chemistry basis is unstated, so the section cannot be tied to a downstream product.
Closest related alternatives
Continuous-cast billet
Compare when the production route is the open question and the geometry is already settled.
Boundary: The casting route describes how the shape was formed; it does not set the section or tolerance.
continuous casting billet supplierOther billet types
Compare round, rolling-mill and rebar-grade routes when the section form itself is still open.
Boundary: Section form changes handling, guide setup and downstream route; equivalence is not assumed.
steel billet typesCarbon steel billet
Settle the material family first when the chemistry basis is unresolved, then return to geometry.
Boundary: Material family and geometry are separate decisions; resolving one does not settle the other.
carbon steel billet supplierDecision tool
Square Billet Fit & Mass Estimator
Confirm that a square billet will physically and technically fit the receiving mill before you request price. The estimator calculates nominal geometry only, keeps the density basis and tolerances explicit, and labels mass as an estimate — it never turns a calculation into a weighbridge quantity.
2. Nominal estimate
No estimate yet — three fields are required
- Nominal side
- Length
- Quantity (pieces)
Density carries a labelled engineering assumption and can be overridden. The remaining fields refine the fit assessment but are not required to calculate geometry.
Standards, grades & dimensions
What governs fit — and what is order-specific
A square billet is defined by its geometry as much as its chemistry. Every row below names its unit, method and source, and where a value cannot be stated without your documents it is shown as order-dependent rather than filled in.
Manufacturing route
Step 1
Steelmaking
Chemistry is established in the furnace and refined before casting — this is where the grade is actually set.
Step 2
Casting to square
Molten steel solidifies through a square mould into a semi-finished strand of the ordered nominal section.
Step 3
Cut to length
The strand is cut to the ordered length. Cut method and end squareness condition the charge end.
Step 4
Cool, tag, bundle
Billets cool, are heat-identified, strapped and made ready for dispatch to the mill.
Grades and standards — evidence status
The designations below are commonly encountered on billet enquiries. They are not interchangeable, and none is presented here as the universal billet specification. Confirm the exact edition and status of any standard against your own controlled document before the order.
| Designation | Typical downstream association | Status here | Buyer must supply |
|---|---|---|---|
| 3SP / 3PS | Structural carbon steel for bar and section rolling | Conditional comparison only | Governing standard and edition |
| 5SP / 5PS | Reinforcing-grade carbon steel feedstock | Conditional comparison only | Governing standard and edition |
| Q235B | General structural steel | Conditional comparison only | Governing standard and edition |
| S235 | Structural steel designation under a European framework | Conditional comparison only | Governing standard and edition |
| ASTM grades | Varies with the specific designation and product form | Conditional comparison only | Exact designation and standard |
| Special order chemistry | As agreed for a specific mill and order | Order-specific — not a catalogue grade | Agreed range written into the order |
Evidence warning. Any equivalence between 3SP, 5SP, Q235B, S235, ASTM designations or other marks is a conditional engineering comparison, not a synonym. No chemical composition or mechanical property value is stated on this page because those depend on the governing standard edition and the order — both of which must be supplied by the buyer.
Square sections — geometry basis
Nominal cross-sectional area and the corresponding unit mass. Area is the exact nominal square (side²). Unit mass is calculated from that nominal area at steel density 7,850 kg/m³ — a planning aid and engineering assumption, not an acceptance value. Length, tolerance and corner condition are governed by the order.
| Nominal side (mm) | Nominal area | Indicative unit mass | Method & basis | Typical downstream use |
|---|---|---|---|---|
| 100 × 100 | 10,000 mm² | ≈ 78.5 kg/m | side² at 7,850 kg/m³ | Small-section and wire-rod feedstock |
| 130 × 130 | 16,900 mm² | ≈ 132.7 kg/m | side² at 7,850 kg/m³ | Bar mill and rebar feedstock |
| 150 × 150 | 22,500 mm² | ≈ 176.6 kg/m | side² at 7,850 kg/m³ | Rebar and section rolling |
| 160 × 160 | 25,600 mm² | ≈ 201.0 kg/m | side² at 7,850 kg/m³ | Heavy section and bar production |
| 200 × 200 | 40,000 mm² | ≈ 314.0 kg/m | side² at 7,850 kg/m³ | Large-section and forging feedstock |
Side tolerance, diagonal difference, corner radius, straightness and cut-length variation are order-specific and are confirmed against the receiving mill's requirement — they are not stated as standard values here. Use the estimator above to check a specific size against your mill's entry limit.
Properties — why no values are listed
Dimensional
Side tolerance, diagonal difference and straightness depend on the governing standard and the agreed order. The nominal side does not establish any of them.
Chemistry
Heat analysis limits depend on the grade designation, its standard edition and any special order agreement. None is fixed by the square section.
Mechanical
Yield, tensile and elongation are properties of the finished rolled product under its own standard. They are not billet acceptance values.
Related specification paths
150 × 150 mm billet
A single listed section. Confirm it clears your mill's entry limit and that the tolerance basis is stated before committing.
150x150 steel billet3SP steel billet
A specific designation route. Its applicability depends on your governing standard — it is not a synonym for other designations.
3sp steel billet supplier5SP steel billet
Compare against your standard before substituting; designation families are not interchangeable.
5sp steel billet supplierQuality, testing & documentation
The verification matrix
Each row names what must be specified, the evidence to request, who owns acceptance, and the risk carried if the line is left open. A document this page cannot source is not shown as available.
| Requirement | Buyer must specify | Evidence to request | Acceptance owner | Risk if missing |
|---|---|---|---|---|
| Heat chemistry | Grade designation plus the exact standard edition, or an agreed special-order range | Heat analysis / mill test certificate | Buyer's technical authority | Heat cannot be accepted or rejected against an undefined requirement |
| Side dimension | Nominal side and the tolerance basis that governs it | Dimensional record against the order | Receiving mill | A nominally correct section fails the mill's entry guides |
| Length & cut ends | Cut length, permitted variation and end condition | Length and cut-condition record where specified | Receiving mill | Charging and handling problems appear at the mill gate |
| Corner & section form | Corner radius or condition, and section squareness | Recorded corner form and diagonal check | Receiving mill | Guide setup mismatch discovered at charging, not before |
| Straightness | The straightness requirement over the length | Straightness check where the order requires it | Receiving mill | Bowed stock jams the charge line despite a correct nominal side |
| Traceability | How heat identity is marked and what it must survive | Heat number on bundle, tied to the certificate | Buyer / mill quality function | A downstream defect cannot be traced back to a heat |
| Mass basis | Whether theoretical or actual mass governs settlement, and the tolerance between them | Packing list with theoretical mass and, where agreed, weighbridge record | Buyer's commercial function | Routine dimensional variation becomes a settlement dispute |
| Shipment documents | Document set, language and issue timing | Certificate, packing list, and documents per the Incoterm | Buyer's commercial function | Release, clearance or payment is delayed at destination |
Certification limit. This page does not assert that any certificate, approval or test report is held, issued or available. The certificate content, its issuing party and its timing are confirmed against your order. A certificate is not created here and none is implied.
Application & industry paths
Which downstream route are you charging?
The downstream route decides what the geometry must satisfy. Each path below maps an operating requirement to the section, the tolerance implication and the mill constraint — rather than listing generic uses.
Rebar production
- Operating requirement
- Section and cut length matched to the rebar mill's charge and pass schedule
- Selection implication
- Confirm the entry clearance suits the ordered side plus its permitted positive tolerance, not the nominal figure alone.
- Fit limit
- The billet grade is not the rebar grade — the finished bar is qualified under its own standard.
Bar production
- Operating requirement
- Section squareness and straightness suited to the bar mill's guide setup
- Selection implication
- Corner condition and section squareness carry into the first pass — agree them before the lot is charged.
- Fit limit
- Bar tolerances are set by the bar standard, not by the billet supply.
Wire-rod production
- Operating requirement
- Smaller sections with geometry suited to drawing feedstock
- Selection implication
- In this route the section is often at the smaller end, so the mill's minimum entry limit matters as much as its maximum.
- Fit limit
- Drawing performance depends on the whole route, not on the billet geometry alone.
GCC markets
Destination planning for square billet
Each destination route below handles customs, documentation and logistics inputs at country level. A named destination, port or place, an Incoterm and the importer's document and classification context are required before an offer can be written — this page makes no claim of served markets or live availability.
United Arab EmiratesDomestic mill feedstock with Dubai-based coordination.
Name the receiving mill and its entry limit. Domestic delivery is coordinated from the Dubai base against the agreed section, length and tolerance basis.
steel billet supplier UAE
Saudi ArabiaMill feedstock quantities with technical submittal approval.
Saudi routes typically require technical submittal approval before release. Agree the section tolerance basis, certificate scope and the named port or inland destination first.
steel billet supplier Saudi Arabia
QatarTechnical approval and document scope led.
Confirm the importer's document and classification context, the named port, and the approval sequence before the quotation is finalised.
steel billet supplier Qatar
OmanPort-oriented supply for downstream production.
State the port or inland delivery place and the Incoterm rule. Section and length are harmonised with the downstream mill's charge geometry.
steel billet supplier Oman
KuwaitMill feedstock with production hand-off planning.
Tie the ordered section to the rolled product, and agree the shipment against the named destination and the required delivery window.
steel billet supplier Kuwait
BahrainIndustrial supply and re-export documentation.
Industrial routes depend on accurate documentation. Confirm the document set, the named place and the importer's requirements before dispatch.
steel billet supplier BahrainBefore an offer: state the named destination or port, the applicable Incoterm 2020 rule, the importer's documentation and classification requirements, and confirm the tariff classification for the billet form with your own customs adviser — classification is not determined on this page.
Commercial & logistics inputs
What the quotation is written against
A square billet quotation is normalised from the inputs below. Price, stock, lead time, origin and delivery dates are not stated on this page — they are confirmed against your enquiry, and no figure is invented to fill the gap.
Quantity & unit
State the quantity with its unit of measure — pieces or MT — and whether it is a single lot or a schedule.
Mass basis
Agree whether theoretical mass from nominal dimensions or actual weighbridge mass governs settlement, and the tolerance between them.
Named place / port
A named port or inland delivery place is required. A country alone does not define the delivery obligation.
Incoterm 2020
Name the rule (EXW, FOB, CFR, CIF, DAP…). The rule decides who carries risk, freight and insurance at each point.
Payment & documents
State the documentary and payment requirement, and the document set the importer must receive.
Packing & handling
Strapping, alignment, tagging, lifting points and any marking requirement for the receiving mill.
Inspection scope
Which inspections apply — dimensional, surface, straightness — at whose cost, and whether witnessing is required.
Buyer-required timing
The date by which material must be at the named place — a required-on-site date, not a supplier promise.
Open items
Anything not yet decided is carried as an open item in the enquiry, never assumed on your behalf.
Quote required. Price, availability, lead time and origin are confirmed against your enquiry. They are deliberately not stated on this page because a figure published without a live basis would misstate what an order actually carries.
Alternatives & technical resources
Close the remaining gaps
Grouped by what they resolve: the product hierarchy you sit inside, the calculation and price resources that reduce ambiguity, and the sibling routes worth weighing.
Product hierarchy
- steel billet supplier
The full billet scope — grades, sizes, standards and the wider type range.
- steel billet types
Compare this square section against the sibling billet types.
Technical resources
- steel billet specifications
Reduce specification ambiguity before the enquiry is written.
- steel billet weight calculation
Check quantity and unit-mass inputs for the planned lot.
- steel billet price
Understand the commercial inputs that shape a billet offer before you request pricing.
Material route
- carbon steel billet supplier
Material family is a separate decision from section geometry — settle the chemistry basis here.
Downstream routes
- steel billet for bar production
Test the geometry against a defined bar-mill route.
- steel billet for rebar production
Test the geometry against a defined rebar route.
Expert insight
What makes two square billet offers geometrically comparable for the same mill?
Source-backed procurement decision note
What the source establishes
The glossary supports the terminology: a billet is a semi-finished, typically square or rectangular product, distinguished from finished long and flat products. That is the scope it carries — what the product class is.
What the source does not establish
It does not define exact square dimensions, dimensional tolerances, straightness limits, corner geometry or mass acceptance. Two offers can both be correctly called square billet and still differ on every one of those, which is precisely why the term alone cannot make them comparable.
The order-specific implication
Comparability is an exercise in normalisation. Put both offers on the same basis — nominal side with its tolerance, cut length with its variation, straightness, corner condition, and the weight basis — and then test the resulting geometry against the mill's entry constraint. An offer that looks cheaper on the nominal figure may not clear the guides once the permitted positive tolerance is applied.
Buyer implication. Normalize side, length, tolerances and weight basis, then test the geometry against the mill entry constraint before commercial comparison.
Primary source
World Steel Association — Glossary: billet and semi-finished productsMethod: the source scope is compared against the buyer decision; source-backed facts are separated from order-specific ones.
Scope & limitations
- Information date
- 2026-10-03
- Scope
- Supports billet and semi-finished product terminology. Does not define exact square dimensions, tolerances or mass acceptance.
- Limitations
- The source does not establish inventory, price, lead time, origin, certification or market coverage for any supplier. Those remain quotation- and evidence-dependent.
This note is an engineering aid for normalising your own comparison. It is not a certificate, an inspection report or a statement of compliance.
Buyer advantages
What a buyer can actually rely on
Each line maps a real procurement concern to a verifiable capability or a named evidence requirement — and then to what you can do with it. No superiority claim is made that is not tied to a check you control.
“Will this section actually fit my mill?”
The estimator checks the ordered nominal side against your stated entry limit and flags tight clearances before you price.
You can rule out a section on geometry rather than discovering the problem at charging.
“How much am I actually buying?”
Nominal area, per-piece mass and lot mass are calculated from your inputs with the density basis shown.
You carry a defensible planning figure into the enquiry instead of an undefined quantity.
“Are these two offers really the same?”
The page names the exact fields — side tolerance, straightness, corner condition, mass basis — that must match before offers are comparable.
You compare on normalised geometry, not on two different readings of “square”.
“Will the dimensional evidence be there?”
The verification matrix names the dimensional record and the accepting party for each requirement.
You know which check to request and who signs it off.
“Will the lot be checkable on arrival?”
Heat identification, strapping, alignment and lot separation are agreed as handling requirements, not left implicit.
Receipt inspection can be done against the lot as delivered.
“Am I getting assumptions instead of facts?”
Density is labelled as an engineering assumption you can override; no tolerance or property value is invented.
Nothing looks settled that your own documents have not settled.
From enquiry to delivery
Who owns each step
A route-aware workflow. Every stage names the buyer concern, the input required, the evidence or output produced, the risk carried and the next action.
- Stage 1
Geometry established
- Buyer concern
- Does the section clear the mill?
- Required input
- Nominal side, length, tolerance basis and the mill's entry limit
- Output
- Nominal area, mass estimate and a mill-fit assessment
- Risk
- A section that looks correct fails at the entry guides
Next: Run the estimator and carry the geometry line into the enquiry
- Stage 2
Enquiry
- Buyer concern
- Is there enough to quote against?
- Required input
- Product, grade or chemistry basis, section, length, quantity, destination
- Output
- A normalised enquiry record
- Risk
- An incomplete enquiry returns assumptions rather than an offer
Next: Attach the geometry line and the tolerance requirement
- Stage 3
Grade confirmation
- Buyer concern
- Is the chemistry basis defined?
- Required input
- Governing standard and edition, or an agreed special-order range
- Output
- Chemistry basis recorded in the enquiry
- Risk
- Heat analysis cannot be assessed against an undefined requirement
Next: Attach the controlling standard to the RFQ
- Stage 4
Quotation
- Buyer concern
- On what basis is the offer made?
- Required input
- Named place or port, Incoterm 2020, currency, mass basis and document set
- Output
- A comparable offer with open items listed
- Risk
- An unstated mass basis becomes a settlement dispute
Next: Compare the offer against the alternatives on this page
- Stage 5
Production & packing
- Buyer concern
- Will the lot match the order?
- Required input
- Confirmed section, length, strapping, alignment and marking requirements
- Output

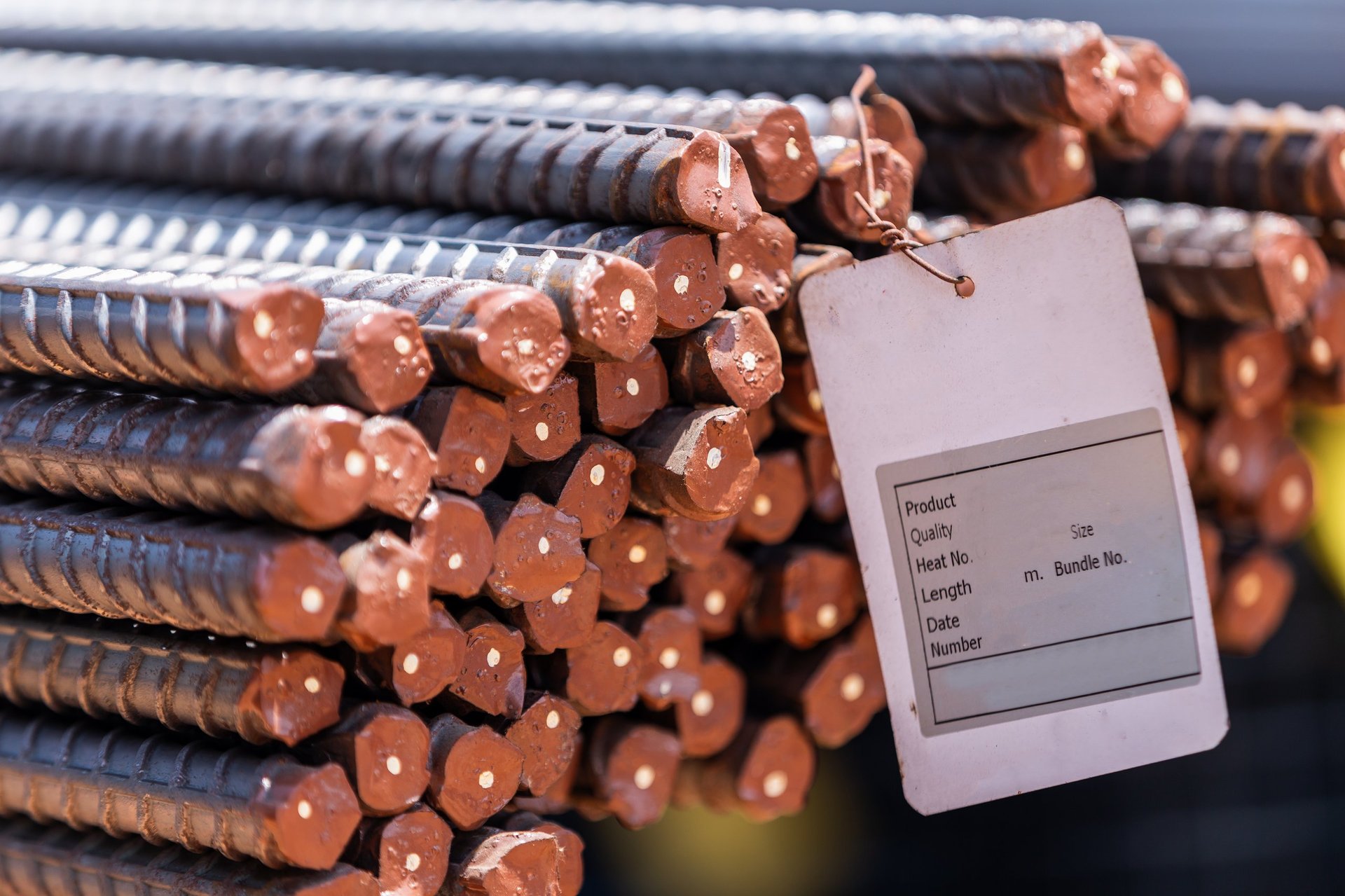

- Strapped, heat-tagged and weighed lot
- Risk
- Heat identity or lot separation is lost between cast and bundle
Next: Verify tagging against the agreed traceability line
- Stage 6
Inspection & documents
- Buyer concern
- Is the dimensional evidence complete?
- Required input
- Dimensional and surface inspection scope, and the required document set
- Output
- Certificate and inspection records per the order
- Risk
- Release, clearance or payment is delayed at destination
Next: Check the document set against the enquiry before dispatch
- Stage 7

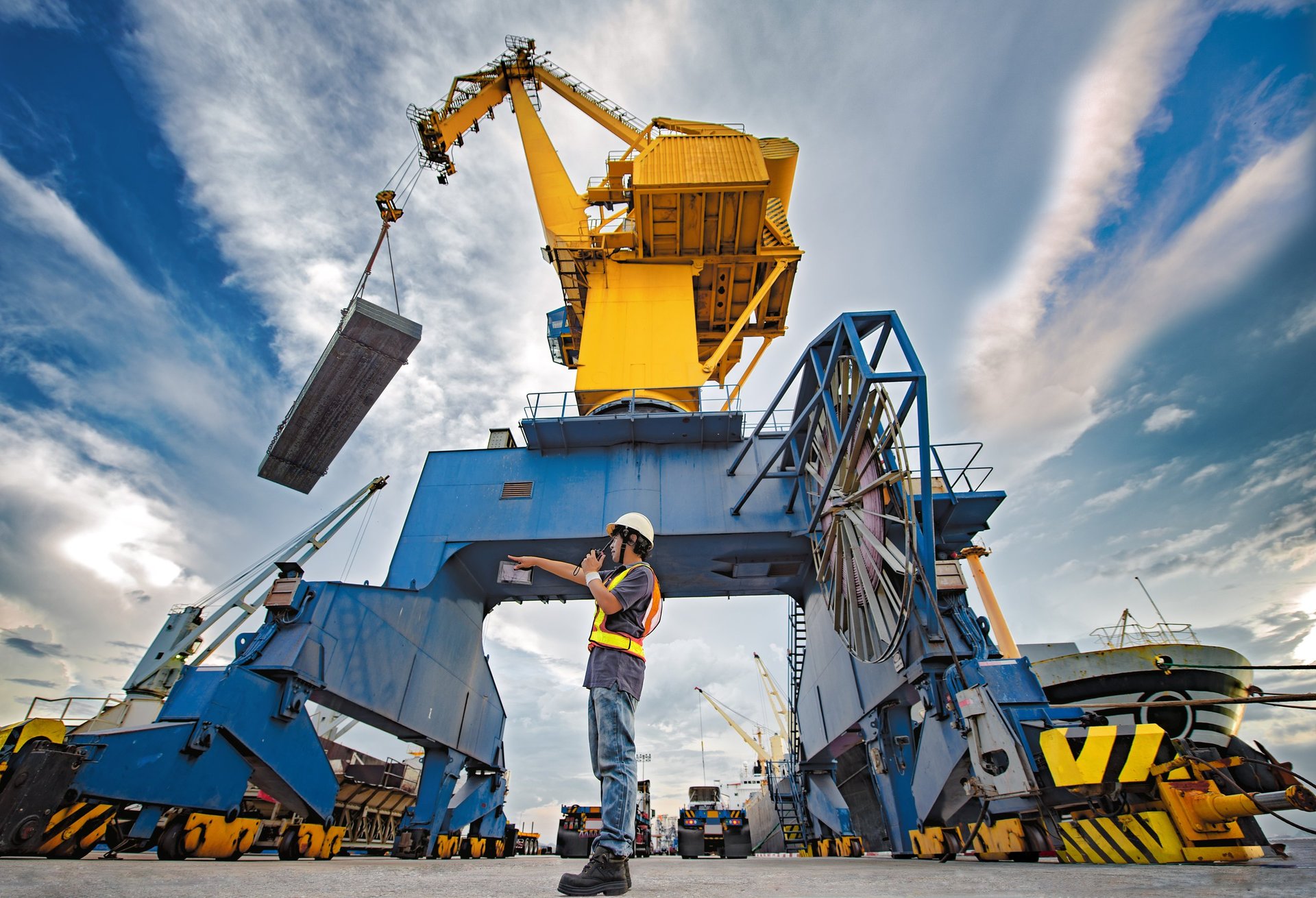

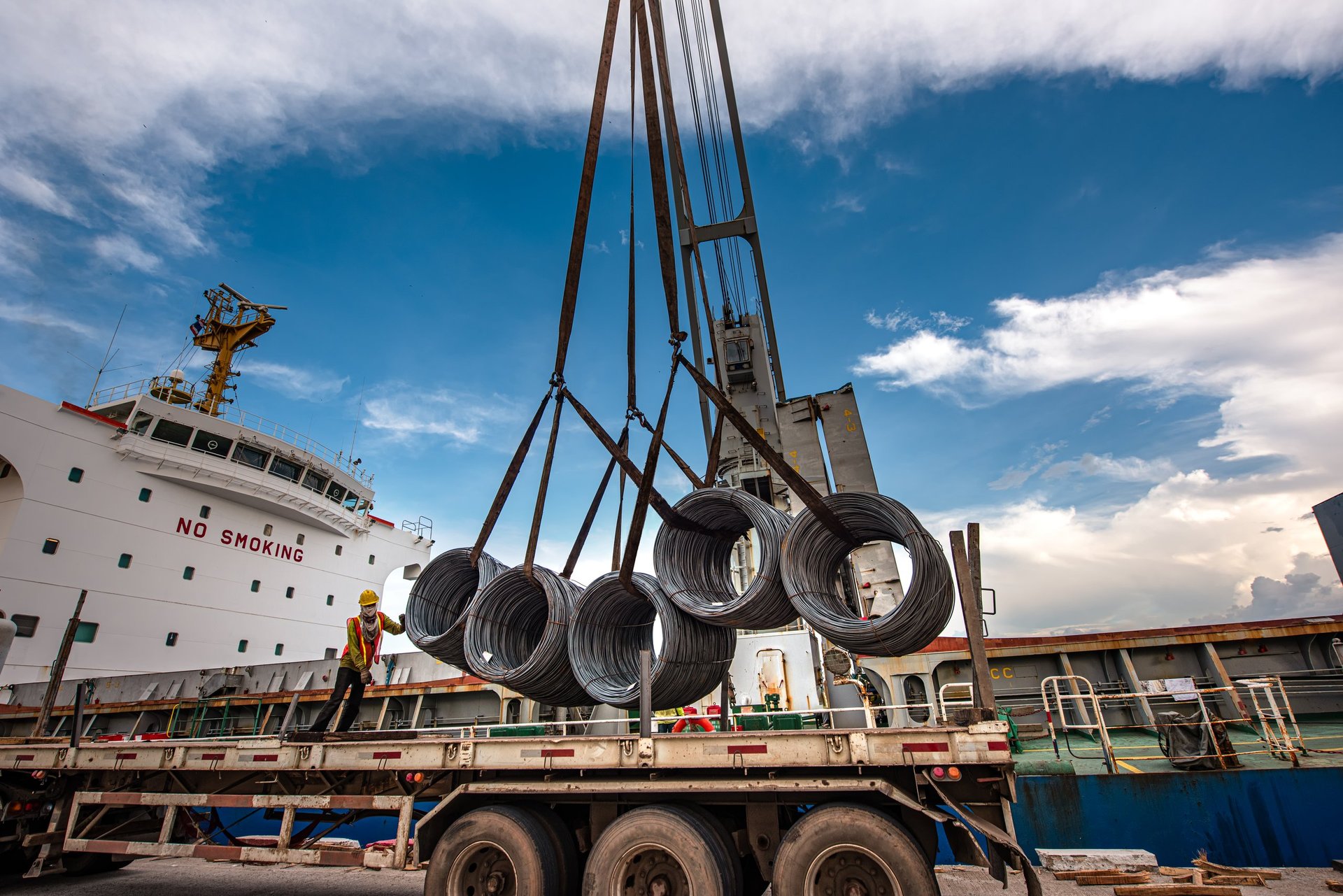

Shipment
- Buyer concern
- Who carries risk, and when?
- Required input
- Incoterm rule and the named place or port
- Output
- Freight and insurance arranged to the agreed point
- Risk
- Risk transfers at a point the buyer did not expect
Next: Confirm the risk-transfer point in writing
- Stage 8
Receipt at mill
- Buyer concern
- Does the geometry pass on arrival?
- Required input
- Agreed side tolerance, straightness and corner acceptance criteria
- Output
- Accepted lot, or a documented non-conformity
- Risk
- Acceptance is judged against an unwritten criterion
Next: Close out against the geometry and tolerance basis in the order
Buyer FAQ
Questions that decide the order
Technical and commercial questions from the mill-planning and procurement-engineering perspective — after the fit decision, not before it.
Is a nominal square size enough for a billet order?
No. A nominal side establishes only the nominal section. The order also needs the length, the dimensional tolerance basis, the straightness requirement and, where relevant, the corner condition. Two offers quoting the same nominal square can differ on every one of those, and those differences are what decide whether the billet enters the mill's charge line cleanly.
How should theoretical billet weight be stated?
As a calculated figure with its basis shown: nominal section, length, quantity and the density used for the calculation. State it as an estimate, not as a weighbridge quantity. Theoretical mass computed from nominal dimensions will differ from actual shipped mass because of dimensional tolerance, cut length variation and density assumption — the order should say which figure governs.
Which tolerance and straightness details can affect mill fit?
Side tolerance, diagonal difference, corner radius or corner condition, straightness over the length, and cut-end squareness. A billet that is nominally within tolerance can still fail to feed if it is bowed, if the section is out of square, or if the corner geometry does not suit the entry guides. Ask for these as stated values before assuming the section is interchangeable.
Why must corner condition be specified when relevant?
The corner carries the geometry through the entry guides and into the first pass. A sharp corner, a rolled corner radius and a chamfered or dressed corner behave differently in handling and in the mill's guide setup. Where the receiving mill's guides are set for a particular corner form, leaving the condition unstated transfers the risk to the point of charging.
How should actual shipment mass be reconciled with theoretical mass?
Agree up front which figure governs the commercial settlement — theoretical mass from nominal dimensions, or actual weighbridge mass — and state the tolerance between them. Then agree how the discrepancy is handled at shipment. Without that agreement, a routine dimensional variation becomes a commercial dispute at the point of delivery.
Qualified RFQ
Send the geometry against a confirmed mill fit
The more of the payload below you supply, the more of the offer is an answer rather than an assumption. Anything you have not decided is carried as an open item — never filled in for you.
- Product and entity
- Nominal side and tolerance basis
- Length and cut condition
- Quantity with unit of measure
- Grade / standard, or chemistry basis
- Destination and named place or port
- Incoterm 2020 and mass basis
- Required documents and timing
The RFQ is submitted to the Steel Billet enquiry intake. Your estimator inputs travel with it.
Contact the commercial department
- WhatsApp / Mobile
- +971 56 398 0860
- Address
- Office 3303, Churchill Executive Tower, Business Bay, Dubai, United Arab Emirates
- Working hours
- Monday – Saturday: 8.00 AM – 6.00 PM · Sunday: Closed
A technical-review path is available at organisation level through the commercial department. No individual contact is named on this page.
